(C104CS99) Quartz Ultra-Micro Cuvette, 10 mm Path, 200 µL

Weight	30 g

SKU: C104CS99

Original price was: $156.00.Current price is: $141.00.

In Stock

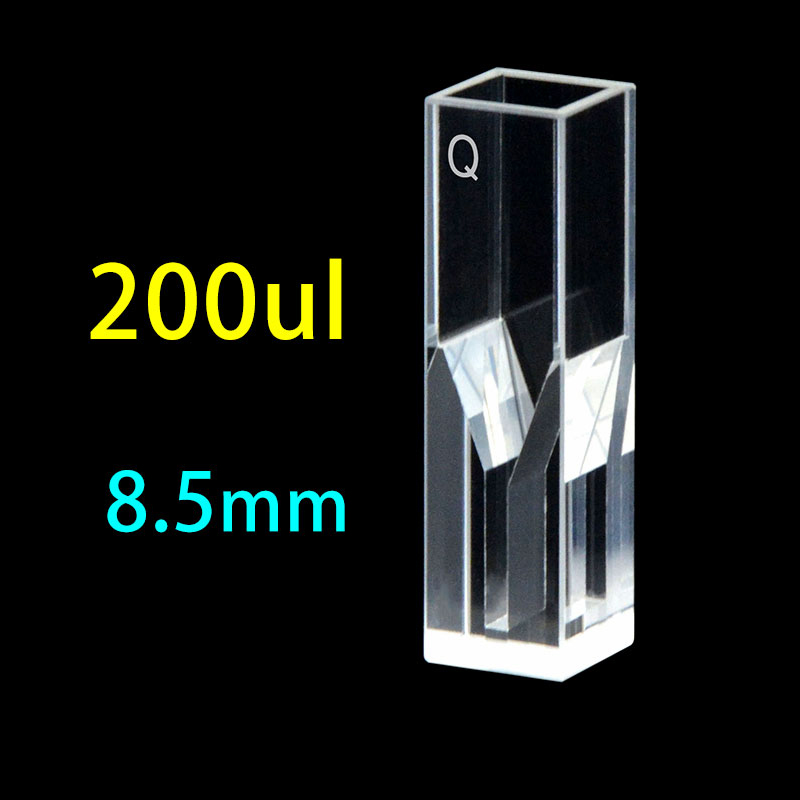

C104CS99 is a JGS1 quartz ultra-micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light access and 200 µL nominal capacity. Its open-top cell body allows direct filling and visual inspection before measurement. Sold as 1 cuvette per listed unit.

In Stock

SKU: C104CS99 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS99 is a JGS1 quartz ultra-micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light geometry and 200 µL nominal capacity. This combination is useful when you need a defined 10 mm path in a small-volume cell and want optical access from multiple sides around the sample region.

The open-top body lets you fill the cell directly and check the liquid condition before measurement. That is especially helpful with small sample volumes, where bubbles, uneven fill or droplets on the optical faces can affect the illuminated area.

Path Length: 10 mm
Sample Volume (Nominal): 200 µL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	200 µL
Material	Quartz
Material Grade	JGS1
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C104CS99 when your method needs a 10 mm path in an ultra-micro quartz cell and your fluorescence setup uses side optical access around a compact sample chamber. The 200 µL nominal capacity gives you a small-volume format without moving to a flow cell or a demountable assembly, while the open top keeps filling simple.

What makes this option different

10 mm optical path for methods that require this path length in a compact cell format.
Four-Way Light configuration for fluorescence arrangements that use optical access from more than one side.
200 µL nominal capacity for a small sample chamber while retaining a complete cuvette body.
Open-top cell body for direct pipette loading and visual checking before measurement.

Using this cell

Fill from the top and make sure the sample covers the illuminated region used by your instrument. The 200 µL figure is the nominal chamber capacity; it is not a minimum working volume.

Use the same seating orientation for blank and sample measurements, and check for bubbles before reading. Wipe away droplets and fingerprints from the outside optical faces so the measurement area stays clear.

First-use check

Inspect the optical faces and top opening for residue or handling marks.
Rinse with a suitable liquid for your method before first measurement.
After filling, confirm that the sample region is covered and free from visible bubbles.

Fit and optical alignment

Review holder opening, sample-compartment clearance and beam position before ordering, especially for fluorescence setups. Four-Way Light describes the optical access category, but it does not by itself establish compatibility with every fluorimeter or holder geometry.

This product is identified as an ultra-micro cuvette, but external body dimensions and Z Height are not stated here. If your setup depends on a defined beam height or limited holder clearance, send the holder model or a drawing with the available space and beam location for review.

Solvents and cleaning

Quartz is widely used for optical cells, but the chemical limits for this exact assembly are not specified here. If your samples or cleaning routine involve organic solvents, aggressive reagents, elevated temperature or long contact time, check suitability for the exact cell assembly before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the exterior optical faces gently with non-abrasive optical tissue. For fabrication background, see MQ Cuvette Fabrication Glossary.

Included with this option

Sold as 1 cuvette per listed unit. This is an open-top cell body. Additional supplied accessories are not listed here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a related quartz cell with different dimensions, optical path length, sample volume, optical windows, Z Height, closure details or other fit requirements, we can review a custom enquiry. Send your drawing or holder details and your application requirements through Discuss your requirements, and include part number C104CS99 as a reference.
