(C104CD10) Quartz Ultra-Micro Cuvette, 10 mm Path, 50 µL

Weight	30 g

SKU: C104CD10

Original price was: $190.00.Current price is: $171.00.

In Stock

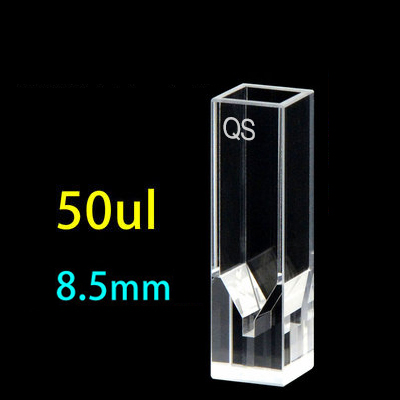

C104CD10 is a quartz ultra-micro cuvette with a 10 mm optical path, Four-Way Light access and a 50 µL nominal capacity. Its open-top chamber suits direct pipette filling for fluorescence work that uses optical access from more than one side. Supplied as 1 cuvette.

In Stock

SKU: C104CD10 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CD10 is a JGS1 quartz ultra-micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light configuration and 50 µL nominal capacity. The open-top chamber gives direct access for pipetting and visual filling checks, making this option useful when you want a small sample chamber together with side optical access around the sample region.

Path Length: 10 mm
Sample Volume (Nominal): 50 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	50 µL
Material	Quartz
Material Grade	JGS1
Opening Configuration	Open Top

Choose this option

Choose C104CD10 when your method is built around a 10 mm path but you want a smaller nominal chamber than broader ultra-micro fills. The 50 µL format keeps the sample region compact, while the Four-Way Light layout supports fluorescence setups that use more than one optical direction. The open top also leaves clear pipette access with no stated stopper or cap arrangement above the chamber.

What makes this option different

50 µL nominal capacity for small-volume loading in a 10 mm path cell.
Four-Way Light configuration for optical access around the sample region in fluorescence measurement setups.
Open-top chamber for direct filling, emptying and visual inspection during preparation.
10 mm optical path for methods that are already set up around this path length.
Single-cuvette sale unit so the listed price is for 1 cuvette.

Using this cell

Fill the chamber from the top with a pipette or other small-volume transfer tool. Check that the illuminated region is fully covered and that no bubbles or droplets remain on the optical faces before measurement.

The nominal 50 µL figure describes chamber capacity, not a minimum working fill. In use, the sample level still needs to suit your actual beam position and holder geometry. Because the chamber is open at the top, this format is best chosen for direct loading at the point of use rather than for a sealed or transport-filled workflow.

First-use check

Inspect the optical faces and top opening for chips, dust or residue.
Rinse with a suitable liquid for your method.
Load a blank and confirm that the beam passes through the intended filled region.
Use the same seating direction for blank and sample.

Fit and optical alignment

Four-Way Light describes the supported optical access pattern, not a guarantee of fit in a particular fluorometer or cuvette holder. Check that your holder accepts an ultra-micro body and that the beam passes through the intended sample region in the orientation you plan to use.

A center-height note appears in source naming, but Z Height is not established here as a released customer specification. If beam height is critical in your instrument, send the holder model or a dimensioned sketch before ordering.

Solvents and cleaning

Quartz is commonly chosen for optical work, but the chemical limits of this exact assembled cuvette are not established here. If your sample or cleaning routine involves aggressive chemicals, unusual temperatures or extended contact time, check the full conditions before ordering.

Compare fabrication options if you are selecting around sample chemistry and cleaning method. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

One C104CD10 ultra-micro cuvette.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch, holder or instrument details, sample conditions and target quantity. Discuss your requirements and quote part number C104CD10.
