(C104CD11) Quartz Ultra-Micro Cuvette, 10 mm Path, 100 µL

Weight	30 g

SKU: C104CD11

Original price was: $190.00.Current price is: $171.00.

In Stock

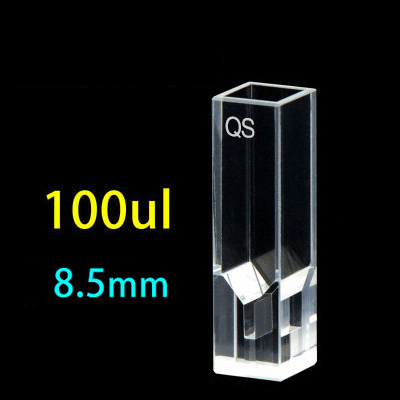

C104CD11 is a JGS1 quartz ultra-micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light configuration and 100 µL nominal capacity. Its open-top design allows direct pipette filling and visual inspection of the sample region. Sold as 1 cuvette per listed price unit.

In Stock

SKU: C104CD11 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CD11 is a JGS1 quartz ultra-micro cuvette for fluorescence measurements that combine a 10 mm optical path with a 100 µL nominal capacity. Its open-top format allows direct filling, while the Four-Way Light configuration provides optical access from multiple sides for suitable beam and detection geometries. This makes it a practical choice when you need a small sample chamber without adding a fixed closure above the opening.

Path Length: 10 mm
Sample Volume (Nominal): 100 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	100 µL
Material	Quartz
Material Grade	JGS1
Opening Configuration	Open Top

Choose this option

Choose C104CD11 when your fluorescence setup uses a 10 mm path and benefits from side optical access around a small-volume sample region. The open top is useful when you want straightforward pipette loading, visual checking and easy access between runs. This option is best selected by the actual geometry of your holder and beam path, especially when your setup depends on precise beam placement in a small chamber.

What makes this option different

10 mm optical path suits methods built around this path length in an ultra-micro cell format.
100 µL nominal capacity supports small-sample loading without moving to a larger chamber.
Four-Way Light configuration provides optical access on four sides for suitable fluorescence measurement geometries.
Open-top sample chamber allows direct pipette filling, visual inspection and easy access during cleaning.
JGS1 quartz body gives you a quartz-cell option for fluorescence laboratory use.

Using this cell

Fill the cell from the top with a pipette and check that the illuminated sample region is fully covered before measurement. With a small nominal volume, it is worth checking for bubbles and keeping the same orientation for blank and sample when your holder does not tightly constrain positioning.

The stated 100 µL is a nominal capacity, not a guaranteed minimum working fill. Your actual fill needs to cover the beam path in the instrument geometry you are using.

First-use check

Rinse the sample chamber with a liquid suitable for your method.
Inspect the optical faces for residue, particles or droplets.
Load a blank and confirm that the filled region covers the beam path.
Repeat with the sample in the same orientation used for the blank.

Fit and optical alignment

Four-Way Light is useful when your method needs optical access beyond a simple two-face transmission layout, but it does not by itself establish compatibility with every fluorescence instrument. Holder clearance and beam position still need to match the geometry of this ultra-micro cell.

Z Height is not released here as a confirmed customer specification, and the full external dimensions are not established as a guaranteed fit envelope. If your instrument has a fixed beam height or a close-fitting holder, send the holder model or a labelled drawing through Discuss your requirements before ordering.

Solvents and cleaning

JGS1 quartz is widely used for laboratory optical cells, but the chemical limits of this exact assembly are not established here. If your method involves demanding solvents, elevated temperature, long contact time or unusual cleaning liquids, check those conditions before ordering.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods. For general background on cuvette fabrication approaches, see compare fabrication options.

Included with this option

1 cuvette per listed price unit.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz cuvettes for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication requirements. Send a labelled drawing or holder information, together with the critical dimensions, application details, sample conditions and target quantity. Discuss your requirements and quote part number C104CD11.
