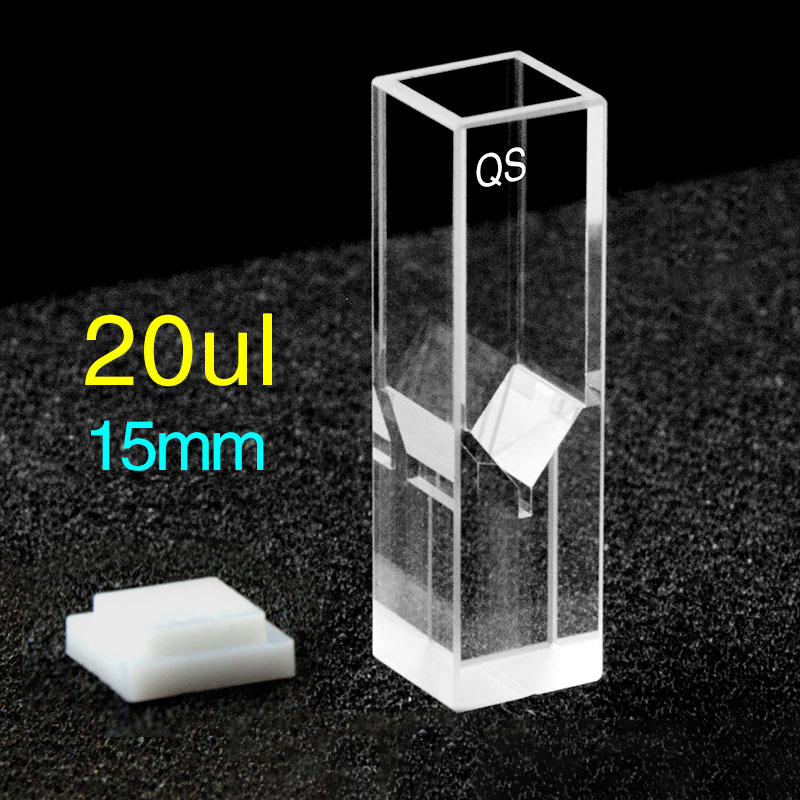

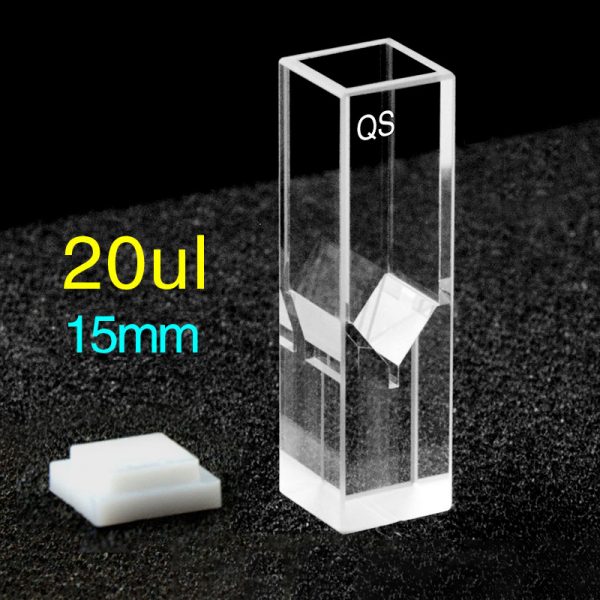

(C104CD13) Quartz Ultra-Micro Cuvette, 10 mm Path, 20 µL

Weight	30 g

SKU: C104CD13

Original price was: $285.00.Current price is: $257.00.

In Stock

C104CD13 is a quartz ultra-micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light configuration and 20 µL nominal capacity. Its open-top body gives direct access for filling and inspection in a very small sample format. Sold as 1 cuvette per pack.

In Stock

SKU: C104CD13 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CD13 is a JGS1 quartz ultra-micro cuvette for fluorescence spectroscopy when you need a 10 mm optical path in a 20 µL format. The Four-Way Light body supports optical access from multiple sides around the sample region, and the open-top chamber lets you fill and inspect the sample directly before measurement. Sold as 1 cuvette per pack.

Path Length: 10 mm
Sample Volume (Nominal): 20 µL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	20 µL
Material	Quartz
Material Grade	JGS1
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C104CD13 when your method calls for a very small nominal chamber together with a 10 mm path and four-side optical access. The 20 µL format suits tightly limited sample volumes, while the open-top design keeps pipette access simple during loading, blank preparation and cleaning. This is the smallest nominal-capacity option in this group, so careful filling and beam coverage matter more in routine use.

What makes this option different

20 µL nominal capacity for very small-volume sample handling.
Four-Way Light configuration for fluorescence setups that use optical access around the sample region.
Open-top cell body for direct filling and visual inspection during loading.
10 mm optical path for methods that require this path length.
Single-cuvette sale unit so the listed price is for 1 cuvette.
No stated closure arrangement for this sale option, so select it for direct bench use rather than assuming a sealed format.

Using this cell

Fill the cell carefully from the open top and make sure the illuminated sample region is fully covered during measurement. Avoid bubbles, droplets on the optical faces and dried residue near the beam path. Use the same seating direction for blank and sample so the optical conditions stay consistent between runs.

The nominal 20 µL capacity describes the cell volume for this option. It is not a minimum working volume specification, so your actual fill should be established in your instrument and method to keep the beam path covered.

First-use check

Before first measurement, inspect the optical faces for chips, residue or handling marks, rinse with a suitable cleaning liquid for your method, and verify that the cell seats squarely in the holder. Run a blank in the same orientation you will use for the sample and confirm that the filled sample region covers the beam without trapped air.

Fit and optical alignment

This cuvette is intended for holders and optical layouts that suit an ultra-micro body and a 10 mm path. Check holder clearance, sample-compartment space and beam position before ordering, especially if your setup depends on a specific beam height or a tightly defined illuminated area.

Z Height is not established here as a released customer specification, so instrument fit should be checked from the holder and beam geometry rather than assumed from family appearance. If needed, send your holder model or drawing for review.

Solvents and cleaning

This is a quartz cell body, but the exact chemical limits for this specific sale option are not established here. Check the sample liquid and cleaning routine against the complete assembly you plan to use, especially if your method involves aggressive chemicals or extended contact time.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the exterior optical faces gently with non-abrasive optical tissue. For general fabrication background, see Compare fabrication methods.

Included with this option

Supplied as 1 cuvette. No additional closure or accessory is specified for this sale option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch together with holder details, critical dimensions, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C104CD13.
