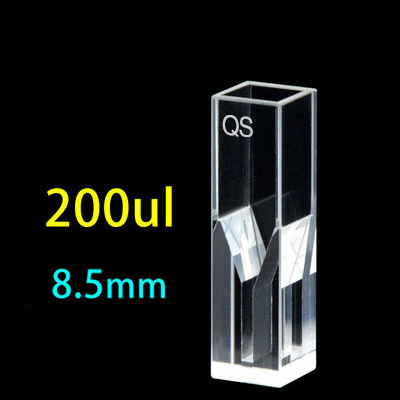

Quartz 10mm Ultra-Micro Cuvette, 200 µl, Standard 80, Four-Way Light, PTFE Cap, 1pc/ea, C104CD12

Weight	30 g

SKU: C104CD12

Quartz 10mm Ultra-Micro Cuvette 200 µl Four-Way Light Z8.5mm Standard 80 C104CD12

Original price was: $171.00.Current price is: $154.00.

In Stock

Quartz 10 mm ultra-micro four-way cuvette, 200 µl minimum fill, Z = 8.5 mm. Standard 80 (>80% transmittance). PTFE Cap. 190–2500 nm. SKU: C104CD12.

In Stock

SKU: C104CD12 Categories: Cuvettes, Products, Quartz Micro Cuvettes

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

The C104CD12 is a precision quartz ultra-micro cuvette with 10 mm path length and four-way light (all-clear) optical windows, designed for UV-Vis spectrophotometry (190–2500 nm). The four-way light (all-clear) configuration features four optically polished quartz windows, suitable for both absorbance and 90° fluorescence measurements. A raised quartz platform inside the cuvette body elevates just 200 µl of sample to the beam center at Z = 8.5 mm, saving 94% compared to a standard 3.5 ml cell. Fabricated using Standard 80 (>80% transmittance). Includes a PTFE cap for chemical-resistant sealing.

Technical Specifications
Material	Quartz (Fused Silica)	SKU	C104CD12
Path Length	10 mm	Minimum Volume	200 µl
Optical Windows	4 (Four-Way Light / All-Clear)	Z Dimension	8.5 mm
Fabrication	Standard 80	Transmittance	>80%
Wavelength	190–2500 nm	Exterior Dimensions	12.5 × 12.5 × 45 mm
Cap	PTFE Cap	Package	1 pc/ea

✓ Standard Beam Height (Z = 8.5 mm): Compatible with the majority of UV-Vis instruments including Shimadzu UV-1900/UV-2600, Agilent Cary 60/3500, Thermo Evolution, PerkinElmer Lambda, and Hitachi U-series. Verify your instrument’s beam height in the user manual or contact us if unsure.

Applications

◆ Fluorescence spectroscopy (90° geometry)

◆ Combined absorbance & fluorescence measurements

◆ Protein intrinsic fluorescence (280/340 nm)

◆ FRET & energy transfer studies

◆ Circular dichroism (CD) spectroscopy

◆ Micro-volume analysis with only 200 µl

Why Ultra-Micro?

A raised quartz platform elevates 200 µl of sample precisely into the spectrophotometer beam at Z = 8.5 mm, saving 94% compared to a standard 3.5 ml cell while maintaining the full 10 mm optical path (Beer–Lambert law: A = εlc). This is essential for precious biological samples, limited column fractions, or expensive synthetic compounds. Important: the Z dimension must match your instrument’s beam center height — verify before ordering.

Why Standard 80 Construction?

Standard 80 refers to precision-glued assembly: individual quartz panels bonded with optical-grade adhesive, then ground and polished to final dimensions. With >80% transmittance across 190–2500 nm, Standard 80 delivers accurate, reproducible results for routine UV-Vis work — DNA/protein quantification, enzyme kinetics, and pharmaceutical analysis. Important: the adhesive bonds are designed for aqueous samples only (water, buffers, dilute salt solutions). Organic solvents, strong acids, strong bases, and corrosive reagents can attack and degrade the adhesive joints. For work with organic solvents or aggressive chemicals, choose Sintered 83 or Molded 83 instead.

Usage Tips: Handle by non-optical surfaces only — avoid touching polished windows. Rinse immediately after use with an appropriate solvent. Standard 80 adhesive bonds are suitable for aqueous samples only (water, buffers, dilute salt solutions). Do not use with organic solvents, strong acids, or strong bases — these will attack the adhesive joints. For organic or corrosive solvents, upgrade to Sintered 83 or Molded 83. Compatible with Shimadzu, Agilent, PerkinElmer, Thermo Fisher, JASCO, Hitachi, and most commercial spectrophotometers.

Custom Orders & Academic Purchasing: Need a custom size, path length, or window configuration? We offer made-to-order cuvettes tailored to your specifications. Academic institutions: we accept Purchase Orders (POs) with pay-after-delivery terms. Contact us for quotes and custom requests.

Disclaimer: This product is intended for laboratory and research use only. It is not designed, approved, or intended for use in medical diagnostics, therapeutic procedures, or any clinical application involving human or animal subjects. The buyer assumes all responsibility for determining the suitability of this product for their specific application.
