(C202CS1) Glass Standard Cuvette, 20 mm Path, 5 mL

Weight	100 g

SKU: C202CS1

Original price was: $12.00.Current price is: $11.00.

In Stock

C202CS1 is a glass standard cuvette with a 20 mm optical path, Two-Way Light layout and 5 mL nominal capacity for visible-range transmission work. Its open-top body allows direct filling and emptying at the bench. MQ sells this option as 1 cuvette.

In Stock

SKU: C202CS1 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C202CS1 is a glass standard cuvette for visible-range measurements that use a 20 mm optical path in a simple manually filled format. The open top gives direct access to the sample, and the 5 mL nominal capacity suits routine liquid handling in a standard rectangular cell. MQ sells this option as 1 cuvette.

Path Length: 20 mm
Sample Volume (Nominal): 5 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	20 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	2000 nm
Sample Volume (Nominal)	5 mL

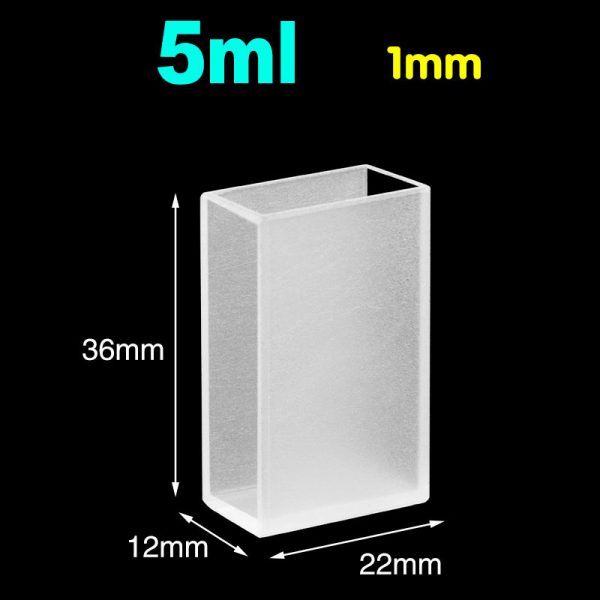

External Dimensions	22 × 12 × 36 mm
Uncapped Cell Dimensions	22 × 12 × 36 mm
External Dimensions Scope	Uncapped Cell
Body Height	36 mm
Base Dimensions	22 × 12 mm
Material	Glass
Fabrication Method	Standard 80
Opening Configuration	Open Top

Choose this option

Choose C202CS1 when your method is built around a 20 mm path length and you want a straightforward open cell for direct filling. The Two-Way Light layout supports transmission measurements through two opposing optical faces, and the glass body is specified for use from 350 to 2000 nm. This is a practical choice when you want a standard cuvette shape without added fittings or flow connections.

What makes this option different

20 mm optical path for methods that require a longer path than a short routine cell.
Open-top access lets you fill, empty and inspect the sample directly from above.
Two-Way Light configuration is intended for transmission through opposite optical faces.
5 mL nominal capacity suits routine filled-sample measurements, but it is not a minimum working volume.
Uncapped 22 × 12 × 36 mm body size helps you check holder fit and clearance around the bare cell.

Using this cell

Fill the cell from the top and make sure the liquid level covers the beam region in your instrument. For consistent readings, keep the same orientation for blank and sample and remove visible bubbles before measurement.

This is an open cell body rather than a sealed assembly. It works best where direct top access is useful for pipetting, pouring or quick sample changes during bench measurements.

First-use check

Inspect the optical faces and rim for chips, dust or fingerprints.
Test the empty cell in your holder and confirm that it sits squarely.
Fill with a blank first and verify that the illuminated region is fully covered.
Check that your filling method leaves the optical faces clean and free from bubbles.

Fit and optical alignment

The stated 22 × 12 × 36 mm dimensions apply to the uncapped cell body. Use those dimensions to check holder seating, side clearance and the available space above the rim for filling and handling.

Z Height is not specified for this cuvette. If your spectrometer or holder depends on a defined beam height, check beam alignment in your setup rather than relying on the outer body size alone.

Solvents and cleaning

Standard 80 here is an adhesive-bonded construction. For this SKU, the stated use is limited to neutral solutions, so select it with your sample liquid and cleaning routine in mind.

Do not treat that statement as a general compatibility list for other solvents or cleaning agents. Avoid abrasive cleaning, and wipe the optical faces gently with suitable non-abrasive materials.

Included with this option

One C202CS1 cuvette in the listed specification. A supplied closure is not established for this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body size or other fit details, you can Discuss your requirements and reference C202CS1. Include your instrument or holder details, key dimensions, sample conditions and any target drawing or sketch.
