(C502CA1) Glass Standard Cuvette, 50 mm Path, 17.5 mL

Weight	100 g

SKU: C502CA1

Original price was: $32.00.Current price is: $29.00.

In Stock

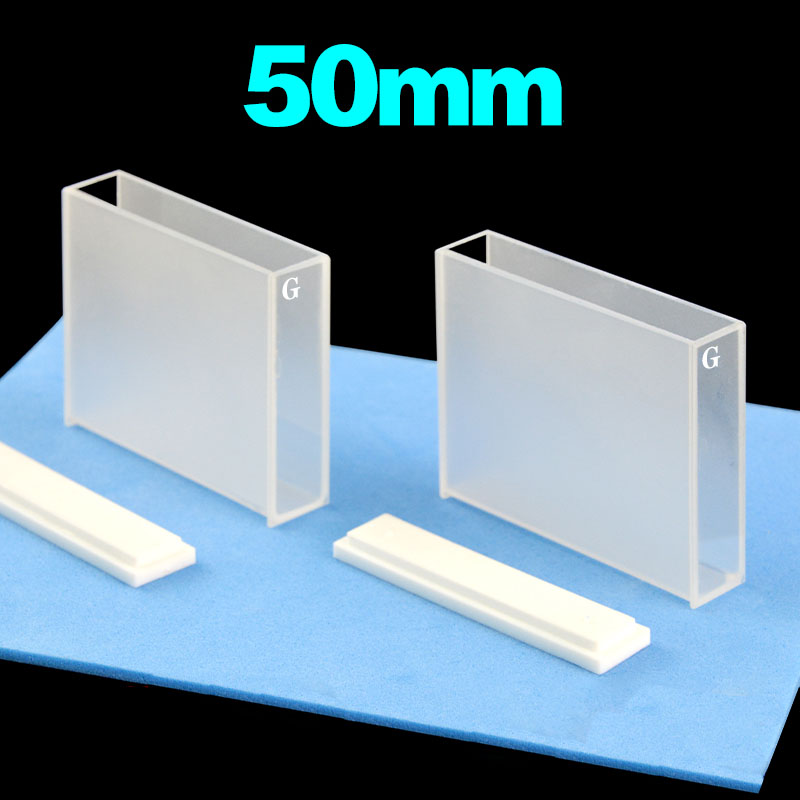

C502CA1 is a glass standard cuvette for visible absorbance work with a 50 mm optical path, a Two-Way Light layout and 17.5 mL nominal capacity. Its open-top body allows direct filling, and this option includes a closure.

In Stock

SKU: C502CA1 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C502CA1 is a glass standard cuvette for visible absorbance measurements that use a 50 mm optical path. This option combines an open-top body, a supplied closure and 17.5 mL nominal capacity, giving you a longer-path cell that is straightforward to fill and handle at the bench.

Path Length: 50 mm
Sample Volume (Nominal): 17.5 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Visible Absorbance Spectroscopy
Pack Quantity	Pack of 2
Path Length	50 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	2000 nm
Sample Volume (Nominal)	17.5 mL
External Dimensions	52.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	52.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Glass
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose C502CA1 when your method specifically requires a 50 mm path length and you want the listed cell supplied with a closure. The open top keeps filling and rinsing simple, while the longer path and stated nominal capacity help you plan sample preparation for visible-range absorbance work. The closure is part of this option, but the capped height is not listed, so allow extra top clearance in your setup.

What makes this option different

50 mm optical path: match the measurement method to this transmission distance and align the beam through the sample region.
Two-Way Light: align the opposing optical faces with the transmission beam and use the same orientation for blank and sample readings.
17.5 mL nominal capacity: plan the working fill and beam footprint together so liquid covers the illuminated region; nominal capacity is not a minimum working fill.
Open-top access: load and rinse through the sample opening, leaving room above the body for filling and any accompanying closure.
Supplier-described fused integrated construction: keep the body assembled for routine cleaning and rinse through the sample opening, using liquids suitable for the complete glass assembly.

Using this cell

Fill from the top and make sure the liquid level covers the beam during measurement. The stated 17.5 mL figure is a nominal cell capacity, not a minimum working volume.

For consistent measurements, keep the same orientation for blank and sample, remove visible bubbles from the beam area and handle the cuvette by non-optical surfaces where possible. After use, rinse promptly so residues do not dry on the internal walls.

First-use check

Inspect the body and rim for chips, dust or visible residue before first use. Test fit the uncapped cell in your holder, then rinse with a liquid suitable for your method and check that the beam passes through the intended optical faces.

Fit and optical alignment

The listed external dimensions are for the uncapped cell body: 52.5 × 12.5 × 45 mm. Use those dimensions to check holder seating and side clearance, then allow additional space above the cell because the overall height with the closure is not stated here.

This is a Two-Way Light cuvette intended for straight-through absorbance measurement across the 50 mm path. Z Height is not specified for this exact option, so instruments or holders with a fixed beam position should be checked before ordering.

Solvents and cleaning

This glass cuvette is specified for visible absorbance use in the 350–2000 nm range. Exact chemical compatibility limits are not established here for this assembled option, including the closure, so aggressive reagents, solvent-based cleaning, elevated temperature and long contact time should be checked against the actual conditions before use.

Use non-abrasive cleaning methods and avoid scratching the optical faces. For general fabrication background, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

Included with this option

This configuration includes an accompanying closure. Confirm the cell quantity and any separately specified accessories covered by your order.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom requirements related to dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication. Send a labelled drawing or sketch together with instrument or holder details, critical dimensions, sample conditions and target quantity through https://machinedquartz.com/contact/ and reference part number C502CA1.
