(C502CA8) Glass Standard Cuvette, 50 mm Path, 17.5 mL

Weight	100 g

SKU: C502CA8

Original price was: $32.00.Current price is: $29.00.

In Stock

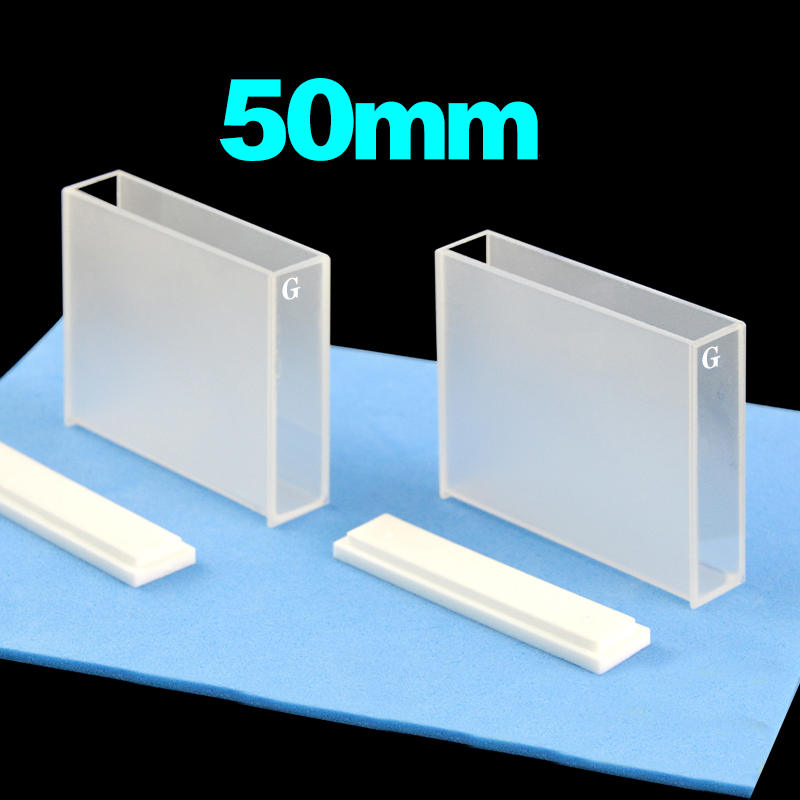

C502CA8 is a glass standard cuvette with a 50 mm optical path, 17.5 mL nominal capacity and an included lid. It suits visible-light methods that use a longer rectangular sample path and want a covered opening during routine handling.

In Stock

SKU: C502CA8 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C502CA8 is a glass standard cuvette for visible-light work using a 50 mm optical path. It combines a 17.5 mL nominal capacity with a rectangular body and an included lid, giving you a longer-path cell for methods that use a larger sample chamber in a familiar bench format.

Path Length: 50 mm
Sample Volume (Nominal): 17.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Absorbance Spectroscopy
Pack Quantity	Pack of 2
Path Length	50 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	2000 nm
Sample Volume (Nominal)	17.5 mL
External Dimensions	52.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	52.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Glass
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C502CA8 when your method is built around a 50 mm path and you want that path in a standard glass cuvette supplied with lids. The longer optical path and larger nominal capacity suit applications arranged for a long rectangular cell, while the lid gives a simple cover over the top opening during sample handling and placement.

What makes this option different

50 mm optical path: match the measurement method to this transmission distance and align the beam through the sample region.
17.5 mL nominal capacity: plan the working fill and beam footprint together so liquid covers the illuminated region; nominal capacity is not a minimum working fill.
Accompanying closure: cover the opening after preparation and allow room to remove it; no pressure or leak-tight rating is specified.
Supplier-described fused integrated construction: keep the body assembled for routine cleaning and rinse through the sample opening, using liquids suitable for the complete glass assembly.

Using this cell

Fill the cell so the liquid level fully covers the optical path, then remove bubbles before measurement. Keep the same orientation for blank and sample when repeatability depends on face alignment, and handle the body by the non-optical sides to help keep the windows clean.

The lid covers the opening during routine handling, but this is still a standard cuvette rather than a sealed or pressure-rated assembly. Minimum working volume is not specified for this item.

First-use check

Inspect the windows and edges for chips, scratches or residue.
Place the body in your holder to confirm seating and clearance.
Run a trial fill to verify that your working liquid level covers the beam area.
Check that the lid sits properly without interfering with the instrument compartment or clamp.

Fit and optical alignment

The recorded body dimensions apply to the uncapped cell: 52.5 × 12.5 × 45 mm. Check holder pocket length, seating and compartment space with that body size, then allow extra top clearance for the lid once fitted.

Z Height is not specified for this model. If your instrument depends on a defined beam-center height, confirm that requirement before ordering rather than assuming fit from the outer dimensions alone.

Solvents and cleaning

This glass cuvette is specified for 350–2000 nm use. Exact chemical limits for the assembly are not established here, so if your sample or cleaning routine involves aggressive chemicals, check the liquid, concentration, temperature and contact time before routine use.

Use non-abrasive cleaning methods and avoid scratching the optical faces. Rinse promptly after use when residues may dry on the windows. For general cuvette fabrication background, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

Included with this option

This configuration includes an accompanying closure. Confirm the cell quantity and any separately specified accessories covered by your order.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, dimensions, capacity or closure arrangement, send your drawing or labelled sketch, holder details and sample conditions via https://machinedquartz.com/contact/.
