(MQACC021) PTFE Screw Cap for 5 mm Cuvettes, 10 mm OD

Weight50 g
SKU: MQACC021

$17.00

In Stock

Ribbed PTFE screw cap for matching 5 mm path cuvettes, with a 10 mm outer diameter and 11 mm cap height. The outer ribs provide a grip for hand fitting and removal. Supplied as one cap; cuvette sold separately.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

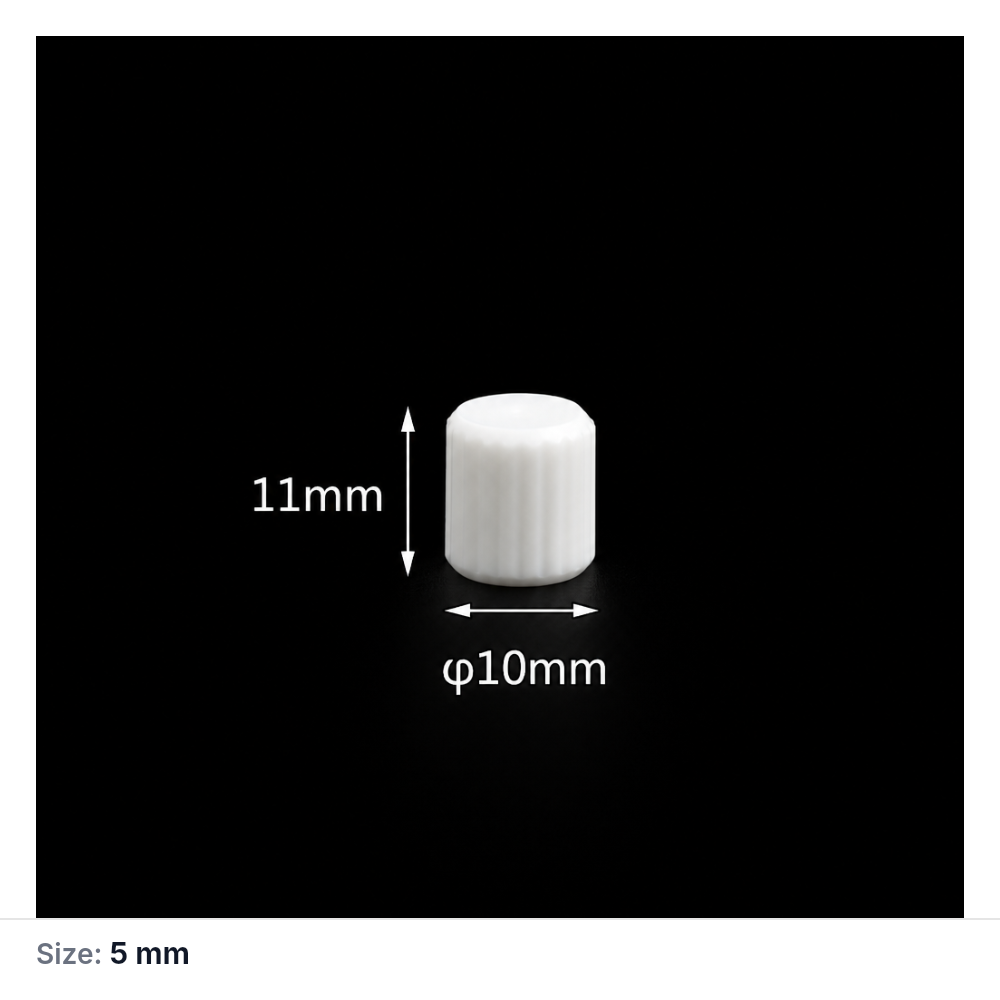

MQACC021 is a PTFE screw cap for the listed 5 mm path screw-cap cuvette format. Its 10 mm outer diameter and 11 mm body height are the practical dimensions to review when replacing a cap in a holder or fixture with limited space above the cuvette. This listing is for the cap only, supplied as 1 piece.

Closure Type
Screw Cap

Selection Specifications

Product KindAccessory
Compatible Cuvette Path Length5 mm
Body Height11 mm
Outer Diameter (OD)10 mm
Closure TypeScrew Cap
Closure MaterialPTFE
Pack Quantity1 Piece
Sales Unitpiece
Package Contents1 × Cuvette cap/lid

Choose this option

Choose this cap when your cuvette uses the corresponding 5 mm path screw-cap format and you need the closure as a replacement or spare. It is a good fit check item when the cap must match an existing assembly and when nearby holder parts leave limited room for gripping, turning or lifting the cap.

What makes this option different

  • Separate accessory: supplied as a cap only, not a complete cuvette.
  • Ribbed screw-cap form: the ribs provide a grip while turning the cap by hand on a matching cuvette neck.
  • 10 mm outer diameter: useful for checking the cap size against an existing part.
  • 11 mm body height: helps you review top clearance in holders and fixtures.

Using this accessory

Fit the cap onto a clean, supported cuvette and tighten it gently so it seats evenly. Avoid forcing the closure if the mating part does not align cleanly, and keep residue away from the contact area during repeated opening and closing.

This separately sold cap is an accessory; a complete optical cell is not included. The 5 mm statement identifies the intended cuvette format, while the cap dimensions help you judge whether it will fit your existing assembly and available working space.

First-use check

  1. Inspect the cap and mating cuvette surface for debris or visible damage.
  2. Compare the new cap with your existing closure or drawing.
  3. Test the fit on the bench and confirm normal access for fitting and removal.

Fit and installation

View the English selection reference.

Check the cap dimensions against your existing part or cuvette drawing before ordering. The 10 mm outer diameter and 11 mm height matter most where nearby holder parts or top clearance are tight.

The 10 mm dimension is the cap outer diameter, not an M10 thread designation. Match the actual thread diameter, pitch and seating shape to your cuvette; these details, insertion depth and sealing performance are not specified here.

English selection reference
Selection reference ↗

Handling and cleaning

Clean the cap with methods suitable for PTFE and for the complete assembly it will be used with. If your application involves demanding chemicals or extended contact conditions, check suitability for the assembled system rather than treating the cap alone as the limit for use.

Included with this option

1 PTFE screw cap. Cuvettes are not included.

Availability and ordering

Order this listed option directly, or contact us to check current availability and dispatch timing. For a required delivery date, please ask before checkout. Preparation time is separate from carrier transit and customs clearance.

Need a different fit?

Contact us with your cuvette SKU or the mating dimensions of the cap and cuvette top if you need help checking fit.

Additional information

Weight50 g
