(MQGSC009) Glass Standard Cuvette, 96-G-20 Style Chamber

Weight50 g
SKU: MQGSC009

$30.00

In Stock

MQGSC009 is a glass standard cuvette for visible spectroscopy with a 20 mm optical path, Two-Way Light optical access and an open-top chamber. Its 14 mL nominal capacity suits routine liquid filling in a compact rectangular body. Supplied as 1 glass cuvette per piece.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQGSC009 is a glass standard cuvette for visible spectroscopy with a 20 mm optical path, Two-Way Light optical access and an open-top chamber. Its 14 mL nominal capacity gives you a longer-path liquid cell with direct top access for filling, rinsing and sample exchange, while the rectangular body helps you check holder clearance before ordering.

Path Length
20 mm
Sample Volume (Nominal)
14 mL
Opening Configuration
Open Top

Selection Specifications

Product KindCuvette
Cell TypeStandard Cuvette
Measurement ModeVisible Spectroscopy
Path Length20 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit350 nm
Wavelength Range — Upper Limit2000 nm
Sample Volume (Nominal)14 mL
External Dimensions28 × 26 × 40 mm
Cell Body Dimensions28 × 26 × 40 mm
External Dimensions ScopeBody Only
Body Height40 mm
MaterialGlass
Opening ConfigurationOpen Top
Pack Quantity1 Piece
Wall Thickness3 mm
Package Contents1 × Glass Standard Cuvette

Choose this option

Choose MQGSC009 when your method uses a 20 mm transmission path and you want an open cell rather than a fitted closure. This format is practical for routine bench work where you fill from above, inspect the liquid directly and rinse the chamber between runs. The glass body is intended for visible-light use across the stated 350–2000 nm range.

What makes this option different

  • Open-top chamber gives direct access for pipetting, pouring, rinsing and checking the sample surface before measurement.
  • 20 mm optical path suits methods written around a longer transmission distance than a 10 mm cell.
  • Two-Way Light layout supports measurement across one opposing optical pair rather than side-access geometries.
  • 14 mL nominal capacity provides a full-height liquid region for routine filling and helps you cover the beam with a practical working volume in this body style.
  • Powder-fused / fused integrated construction identifies this as a fused glass body style rather than an added-cap or plate assembly, so selection and handling are centered on the single open chamber and the main cell body.
  • 28 × 26 × 40 mm body size gives a compact rectangular format for holder-clearance checks, with dimensions stated for the body only.

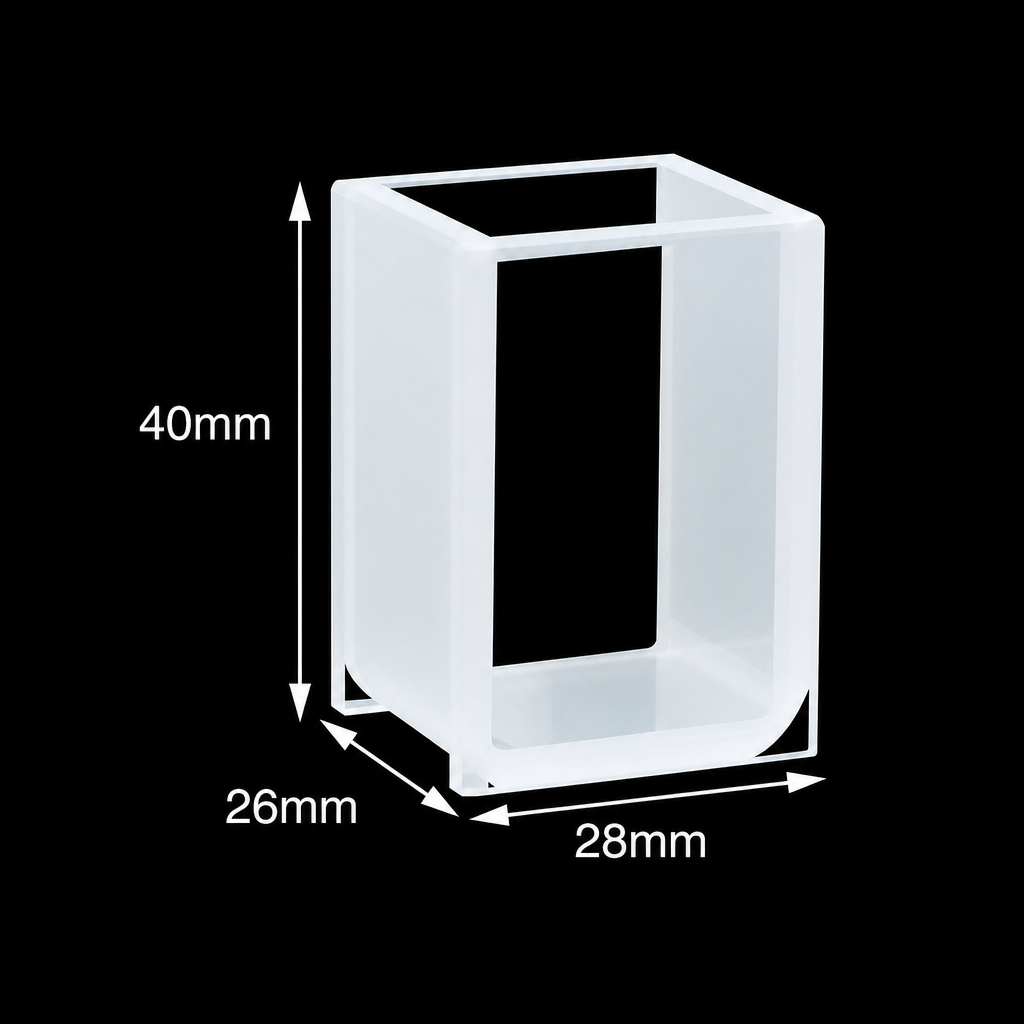

Structure and dimensions

Product dimensions for checking holder clearance and sample access.
Product dimensions for checking holder clearance and sample access.Open image ↗

Using this cell

Fill the cell from the top and make sure the liquid level covers the beam during measurement. The open chamber makes routine sample exchange straightforward, especially when your method involves repeated blank, sample and rinse steps.

Keep the same orientation for blank and sample readings. Before measurement, remove bubbles from the optical path and wipe the outer optical faces so droplets, residue and fingerprints do not interfere with the reading.

First-use check

  1. Inspect the optical faces and chamber for chips, dust or handling marks.
  2. Place the cell in the holder and confirm that it seats securely without strain.
  3. Run a blank in the intended orientation, then repeat after filling to confirm bubble-free beam coverage.

Fit and optical alignment

View the English selection reference. Also available in the product gallery.

The stated 28 × 26 × 40 mm dimensions apply to the body only. Use them to check holder clearance around the rectangular cell and the space you need above the opening for filling and cleaning.

Z Height is not listed for this item. If your instrument uses a fixed beam position or a tight holder geometry, compare the beam center with your current cuvette or holder drawing before ordering.

English selection reference
Selection reference ↗

Solvents and cleaning

This glass cell is used for visible-range liquid measurements, but specific chemical limits are not listed for this SKU. If your method involves organic solvents, aggressive chemicals, elevated temperature or prolonged contact, check suitability for the complete cell before use.

Do not use hydrofluoric acid with glass. Avoid hot strong alkalis and abrasive cleaning methods, and clean the optical faces with gentle non-abrasive materials.

Included with this option

1 Glass Standard Cuvette. The listed price is for one piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body size, opening style or other cell geometry, send your holder details or a dimensioned drawing for review. For custom work, include the required dimensions, optical path, sample conditions and quantity.

Send a product-selection enquiry with SKU MQGSC009 and your application details.
