(MQQCU008) Custom Quartz Optical Cell, Drawing-Based Plate Configuration
$479.00
MQQCU008 is a custom JGS1 quartz optical cell in a drawing-based layered plate configuration for UV/Vis use from 200 to 2500 nm. This design uses access apertures within a bonded multi-plate structure and Molded 83 fabrication, making it suitable for projects where the aperture pattern and plate layout are part of the cell design. Sold as 1 piece.
Description
MQQCU008 is a custom JGS1 quartz optical cell built around a drawing-based layered plate configuration rather than a fixed standard body. It is intended for UV/Vis use from 200 to 2500 nm and is selected when the aperture layout, plate structure and access pattern are part of the optical design.

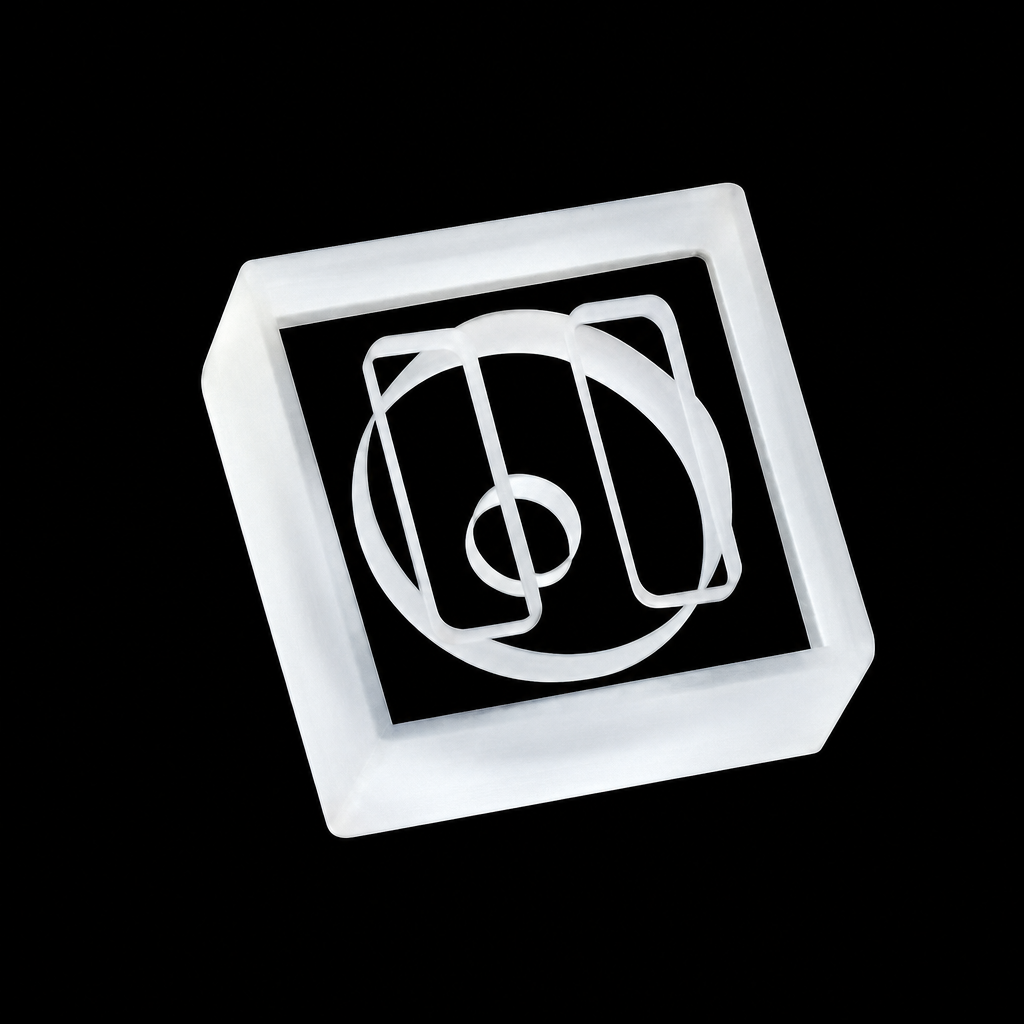

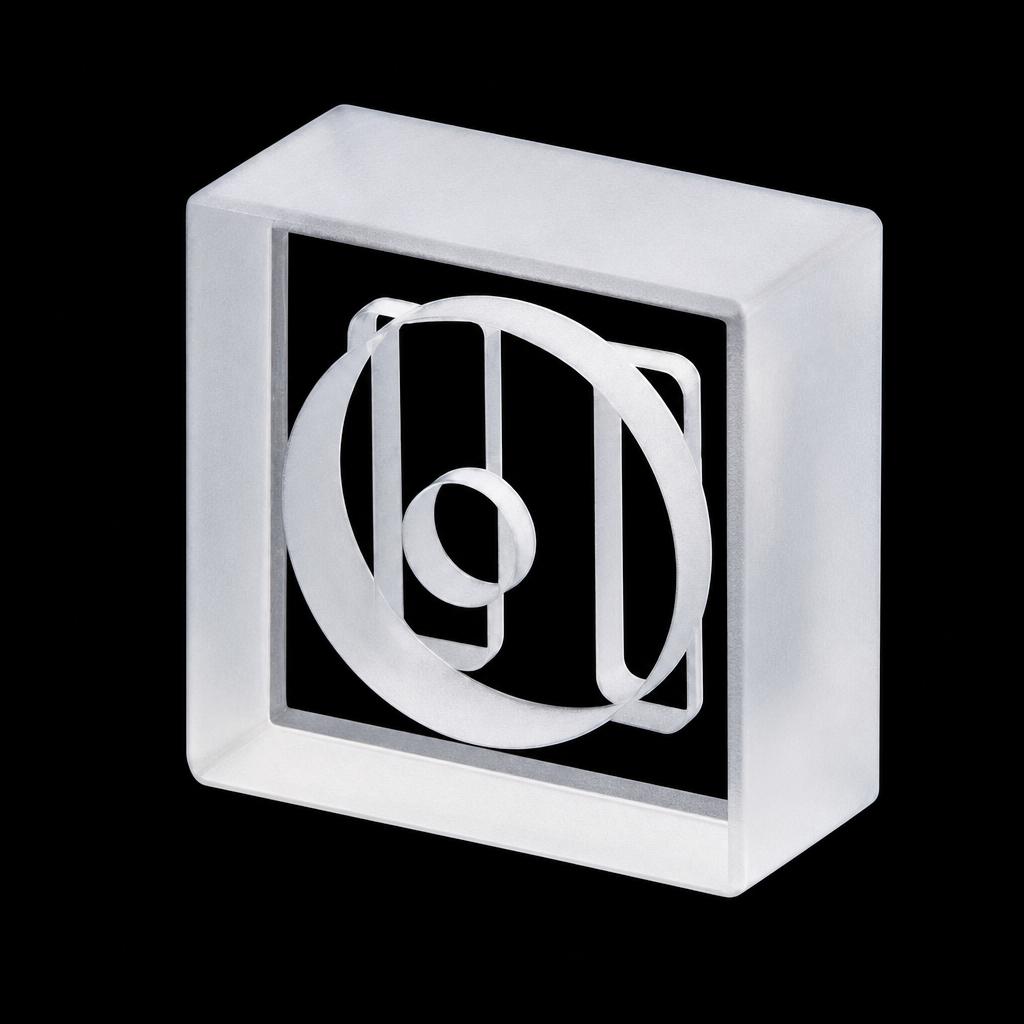

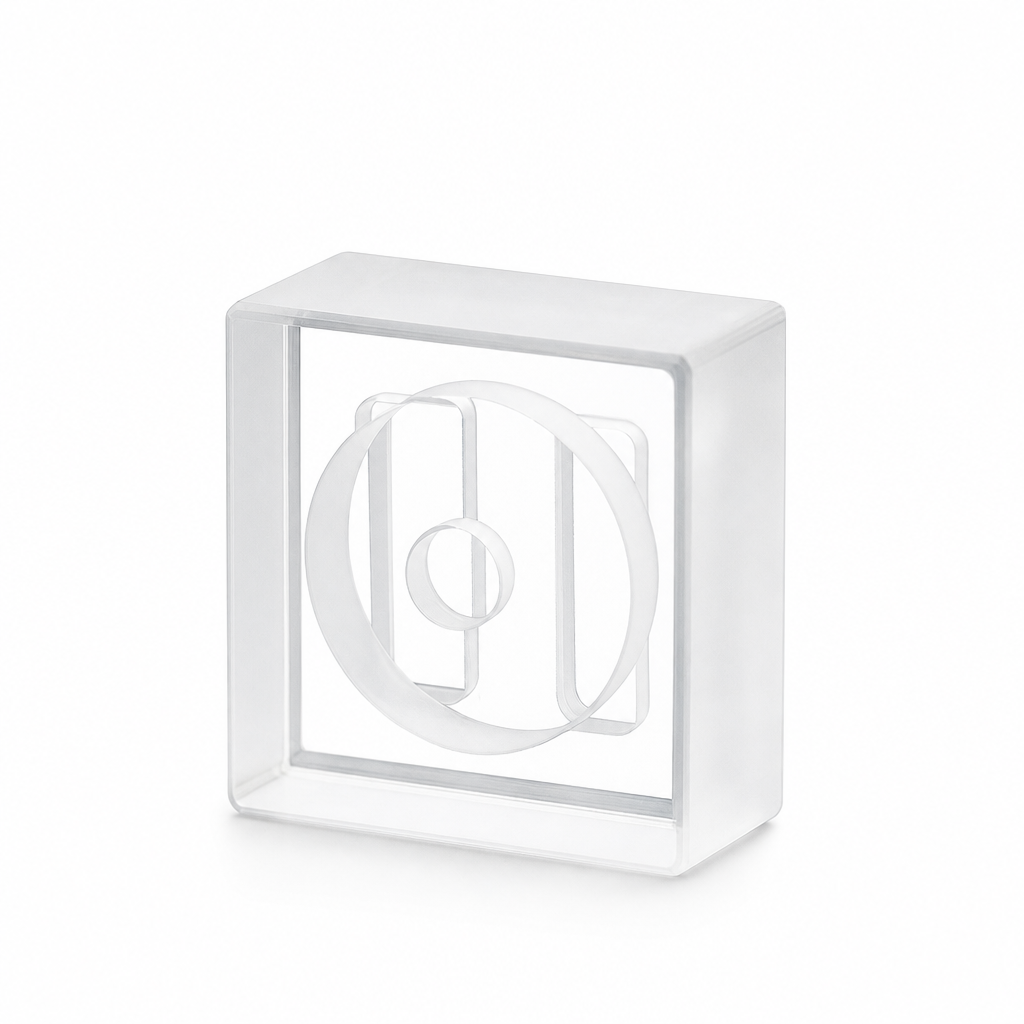

The reference layout shows a bonded multi-plate build with different plate functions in one assembly, including round apertures, slotted features and a plain plate. That makes this option useful when the final cell needs to follow an agreed drawing instead of a standard finished geometry.
- Cell Type
- Rectangular Sample Cell
- Opening Configuration
- Layered Bonded Cell with Access Apertures
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Rectangular Sample Cell |
| Measurement Mode | UV/Vis Spectroscopy |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Material | Quartz |
| Material Grade | JGS1 |
| Pack Quantity | 1 Piece |
| Fabrication Method | Molded 83 |
| Opening Configuration | Layered Bonded Cell with Access Apertures |
Choose this option
Choose MQQCU008 when your project is defined by plate layout and aperture pattern rather than by a standard cuvette outline. It suits custom builds where the sample entry, optical access and internal structure need to be specified on the drawing together with the assembly approach.
What makes this option different
- Drawing-based plate construction: the finished cell is defined by the agreed plate layout rather than a fixed catalog body shape.
- Layered bonded structure with access apertures: the design can combine multiple plate functions within one assembly.

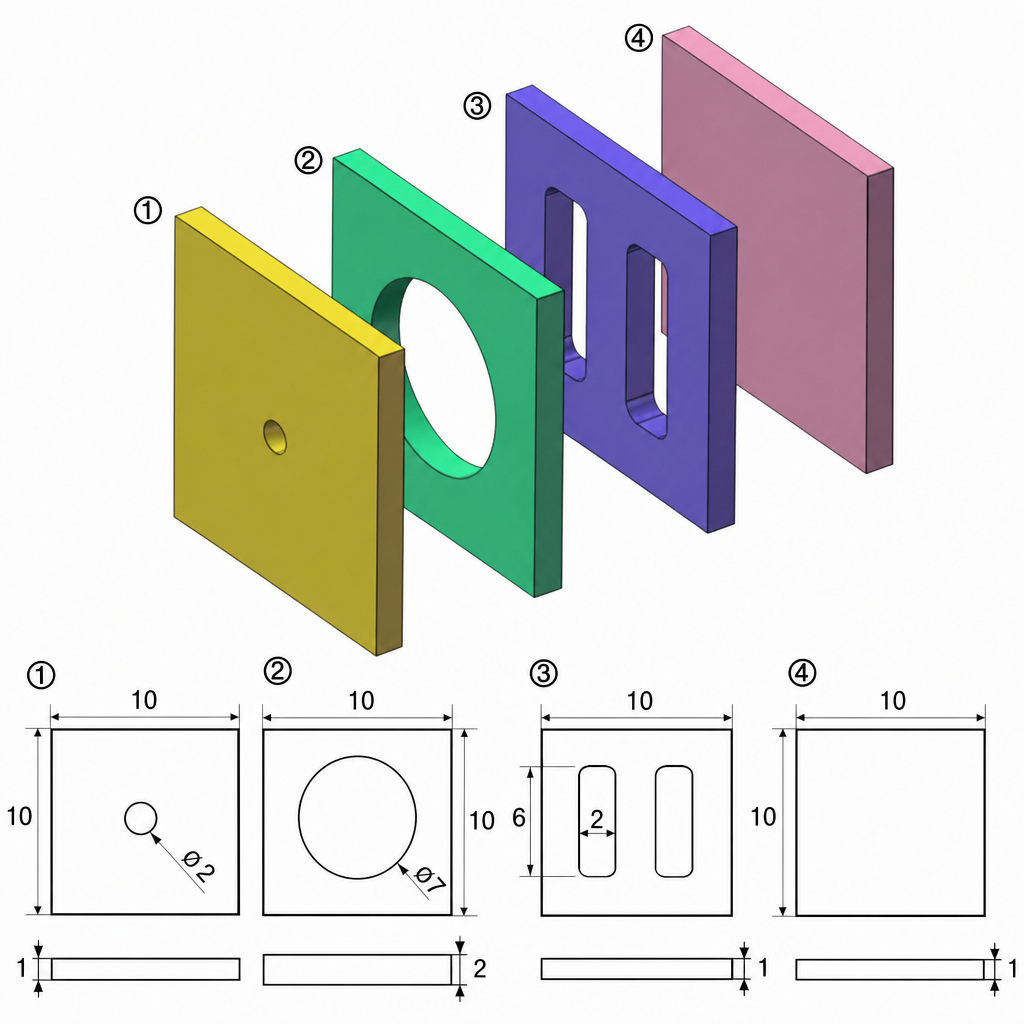

- Reference features include round and slotted openings: the illustrated layout shows a φ2 straight hole, a φ7 through-hole, two 6 × 2 mm slots and one plain plate.
- JGS1 quartz for 200 to 2500 nm: suitable for UV/Vis applications within the stated wavelength range.
- Molded 83 fabrication: often selected for organic-solvent methods and applications that may involve heat, subject to the full assembly and operating conditions.
Using this cell
Use the agreed drawing as the working reference for orientation, sample entry and any clamping or sealing method. Because this is a configuration-led item, the practical use depends on how the final apertures, slots and plate stack are specified for your project.
Before manufacture, identify which faces carry the optical path and how the sample reaches the measurement region. If the method needs a cover plate, fixture pressure, tubing or another sealing approach, define those items with the drawing rather than assuming them from the concept image.
First-use check
- Compare the delivered part with the agreed drawing before use, including aperture layout and optical-face orientation.
- Check fit in the holder or fixture and verify beam placement with an appropriate blank or background.
- If the assembly uses sealing, clamping or mating parts, confirm those are installed as intended before introducing sample.
Fit and optical alignment
View the English selection reference. Also available in the product gallery.

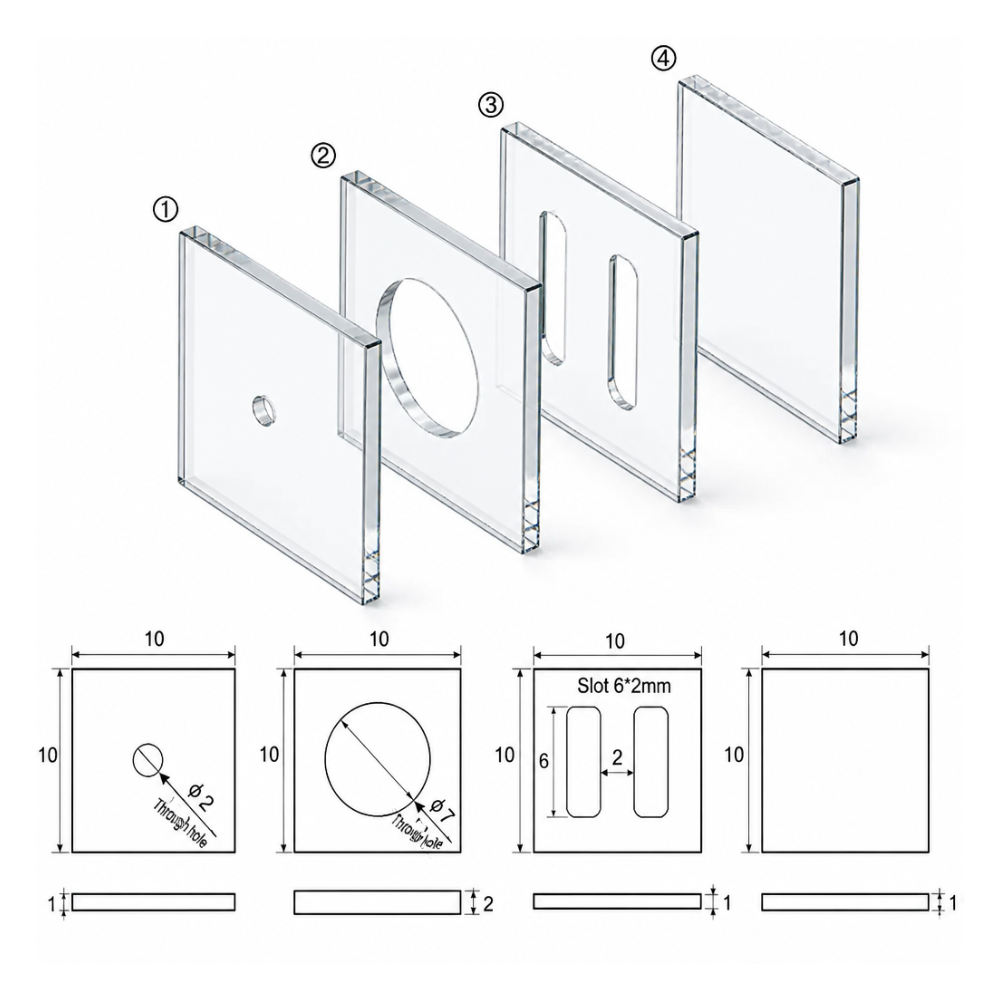

The reference shows 10 × 10 plate elements with thicknesses of 1, 2, 1 and 1 mm in the illustrated layout, but the finished outside dimensions and optical path for your order should be taken from the final agreed drawing. Z Height and nominal volume are not established here, so holder fit and beam position should be checked against the project drawing when those points matter.

Solvents and cleaning
This cell uses Molded 83 fabrication. This construction is commonly chosen for organic-solvent methods and applications that may involve heat, but the exact chemical limits for this specific assembly are not listed here. Check the full wetted assembly, including any added seals or fittings, before using aggressive chemicals, heated liquids or long contact times.
Quartz should not be used with hydrofluoric acid. Avoid hot strong alkalis and abrasive cleaning on optical faces.
Included with this option
1 piece. Any additional components should be defined in the agreed drawing and quotation.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
Send a labelled drawing or sketch with the critical plate sizes, aperture layout, optical direction, holder information and sample conditions. If your project needs a different assembly envelope, access pattern or tolerance target, those details should be reviewed on the drawing for quotation.
Send a product-selection enquiry with SKU MQQCU008, your drawing, sample conditions, quantity and delivery destination.
