(MQQFC012) Quartz Rectangular Sample Cell, 5 mm Path, 7 mL, Open at Both Ends

Weight50 g
SKU: MQQFC012

$167.00

In Stock

MQQFC012 is a JGS1 quartz rectangular sample cell with a 5 mm optical path, Two-Way Light geometry and 7 mL nominal capacity. Its open-at-both-ends body provides a larger rectangular chamber for custom holders or end fixtures rather than a ready-to-connect assembly. Sold as 1 piece.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC012 is a JGS1 quartz rectangular sample cell for UV/Vis measurements from 200 to 2500 nm. It combines a 5 mm optical path with a 7 mL nominal capacity in a larger open-at-both-ends body, making it useful when you need a longer transmission path together with a substantial rectangular sample chamber.

The Two-Way Light layout gives a straightforward beam direction, while the larger chamber geometry helps when the sample region itself is part of your fixture design. This is a cell body for a separate holder or end-sealing arrangement, not a finished ported flow assembly.

Path Length
5 mm
Sample Volume (Nominal)
7 mL
Opening Configuration
Open at Both Ends

Selection Specifications

Product KindSpecialized Cell
Cell TypeRectangular Sample Cell
Measurement ModeTransmission Spectroscopy
Path Length5 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)7 mL
External Dimensions40 × 10 × 40 mm
Body Height40 mm
Base Dimensions40 × 10 mm
Internal Dimensions35 × 5 × 40 mm
MaterialQuartz
Material GradeJGS1
Fabrication MethodStandard 80
Opening ConfigurationOpen at Both Ends
Pack Quantity1 Piece

Choose this option

Choose MQQFC012 when your application calls for a 5 mm path and a larger rectangular chamber that will be integrated into custom support hardware. It is a practical choice for bench or process assemblies where you want to define the end interfaces yourself and need more chamber volume than the shorter-path small-body formats.

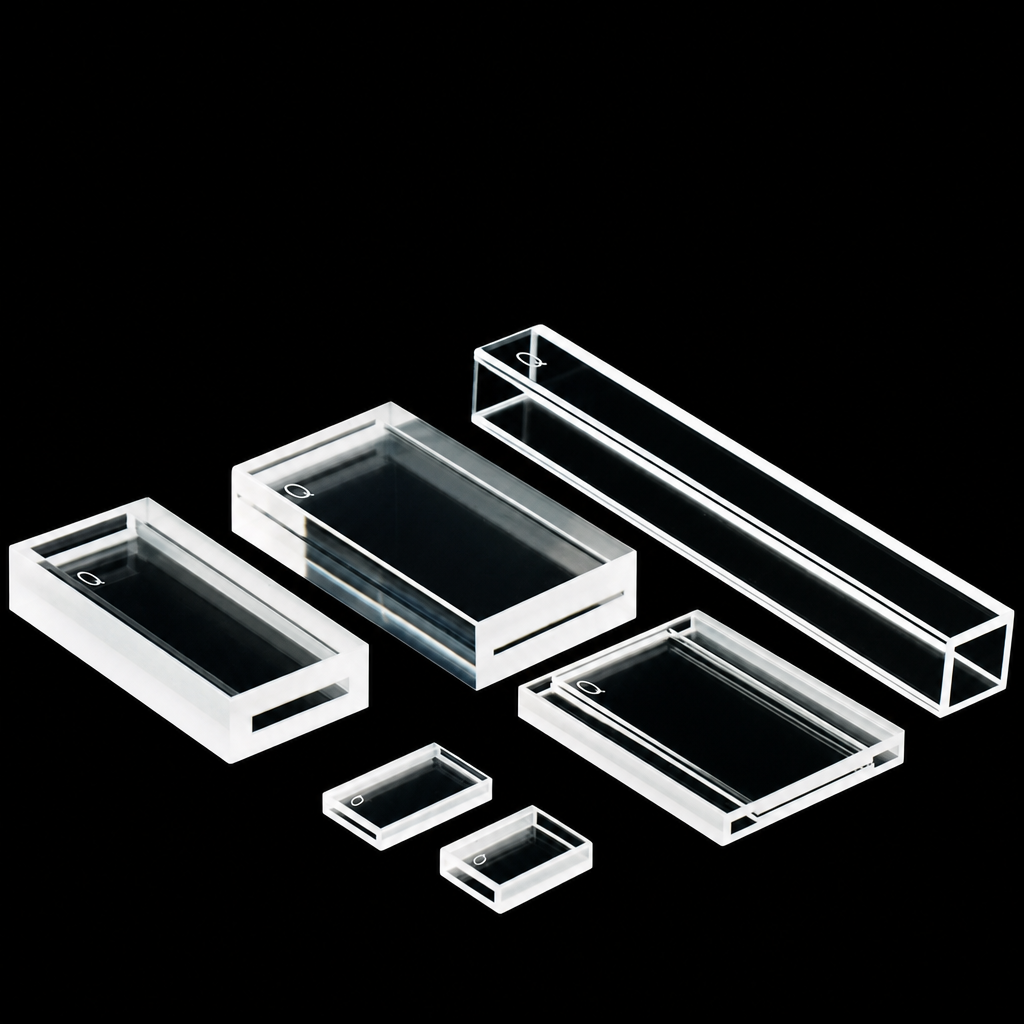

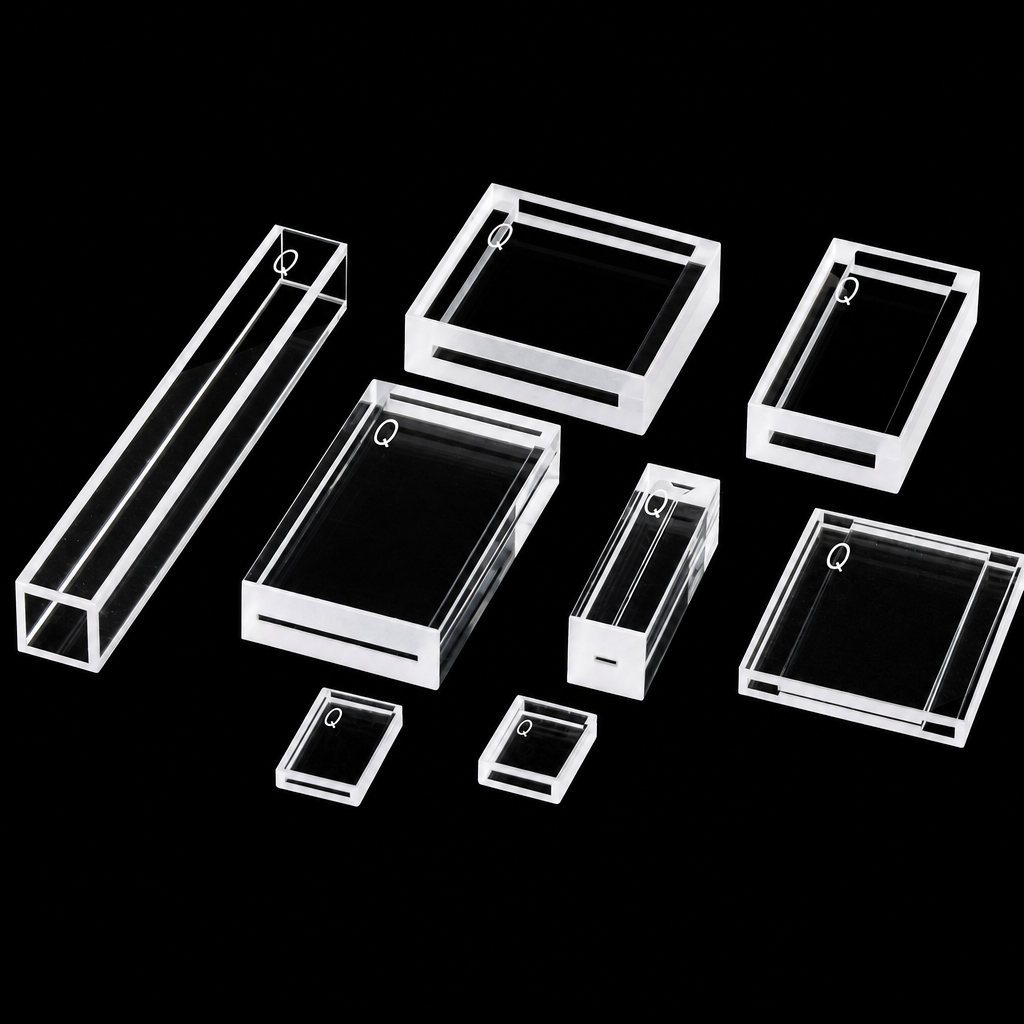

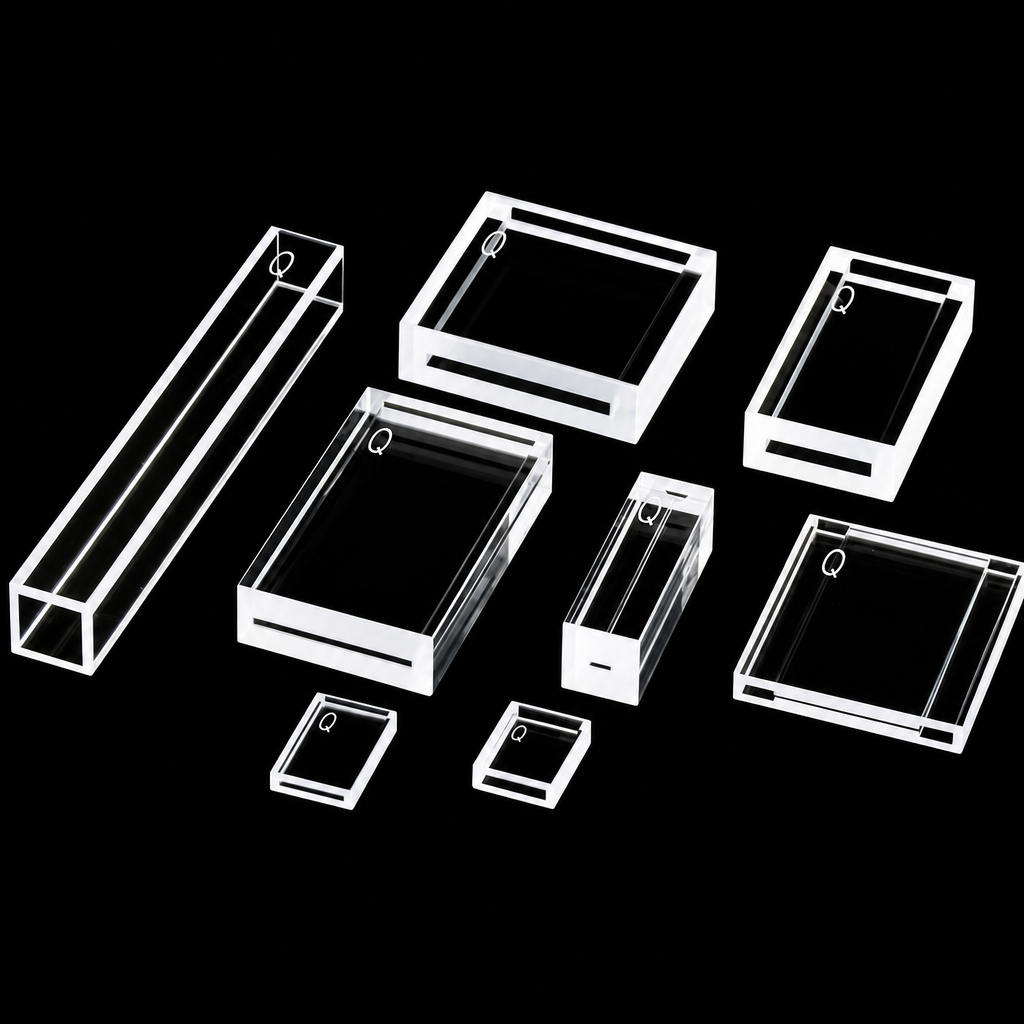

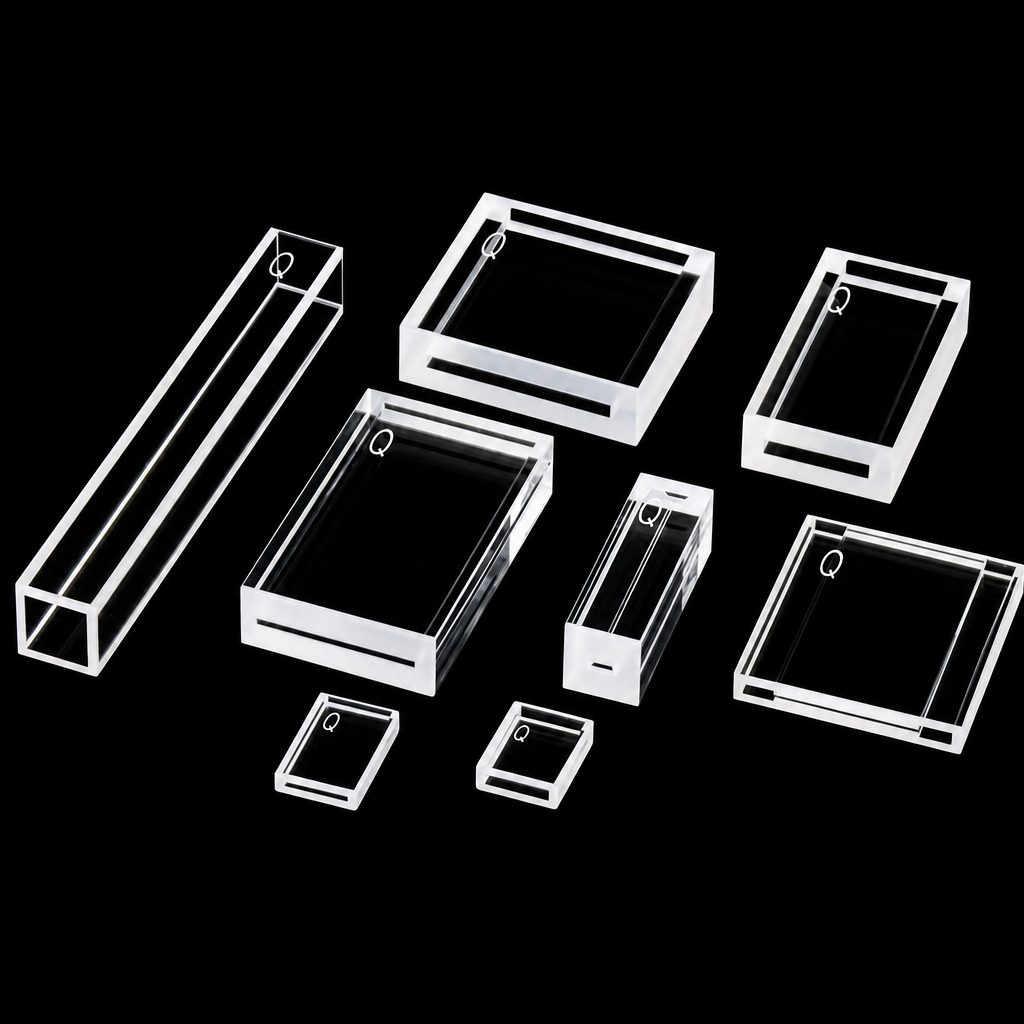

View the English selection reference. Also available in the product gallery. Group photographs illustrate other options in the series.

What makes this option different

  • 5 mm optical path: suited to methods that require a longer transmission distance.
  • 7 mL nominal capacity: a larger chamber volume within this rectangular open-body format.
  • Open at both ends: intended for your own end-sealing or mounting arrangement, not fixed ports.
  • 40 × 10 × 40 mm exterior: a larger body for custom fixtures and support geometry.

Structure and dimensions

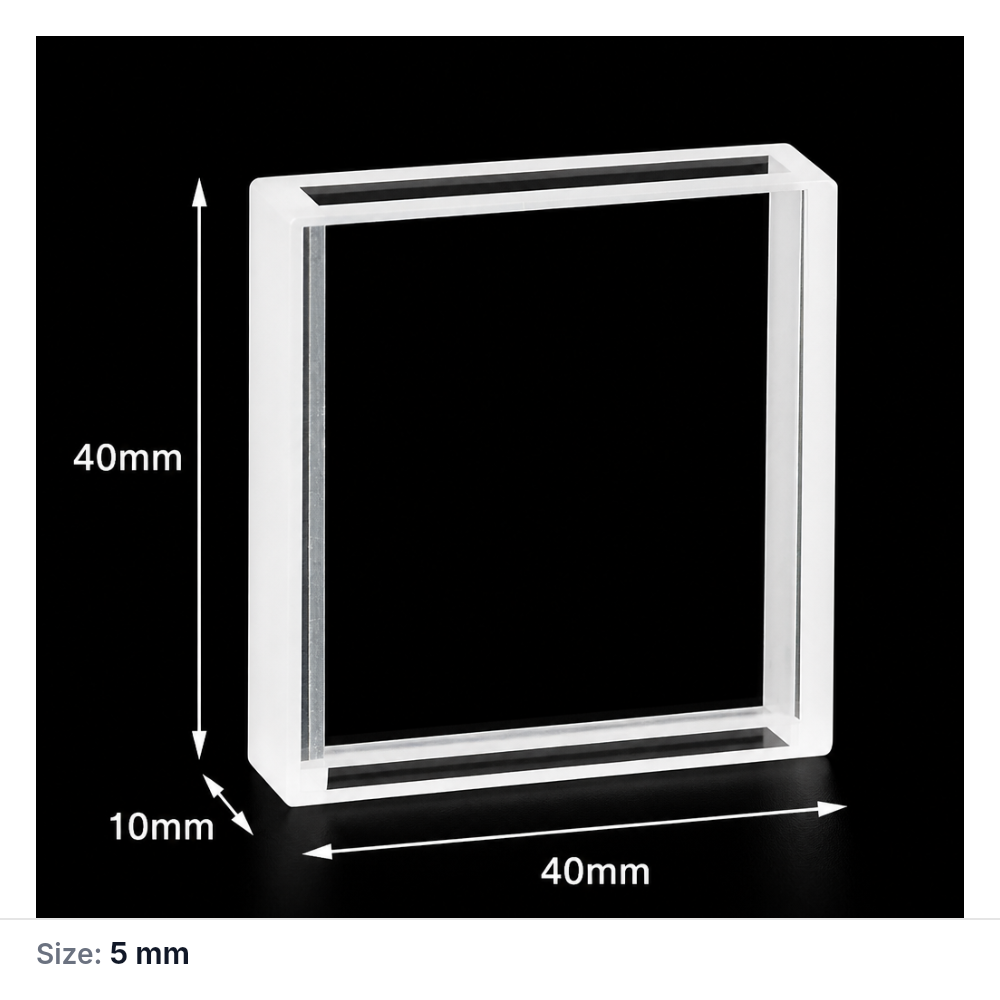

Product dimensions for checking holder clearance and sample access.
Product dimensions for checking holder clearance and sample access.Open image ↗

Using this cell

Install the cell so the beam crosses the 5 mm path. The internal dimensions are 35 × 5 × 40 mm, which describe the chamber space and can help when planning filling orientation and sample access inside the holder.

For liquid use, establish the end-sealing and filling procedure in the final assembly before measurement. The 7 mL value is the nominal chamber volume of the cell body; the total retained volume in service can change once external seals, adapters or connected lines are added.

First-use check

  1. Inspect the optical faces, chamber edges and end openings before fitting the cell.
  2. Verify holder fit and sample retention with a blank in the final measurement position.
  3. Check that seals, bubbles and external droplets are clear of the optical path.

Fit and optical alignment

Use the 40 × 10 × 40 mm external body dimensions to check fixture clearance and support contact. Support the cell evenly and avoid point loading or direct clamping across the optical faces.

Z Height is not specified for this SKU, so instrument beam-height compatibility should be checked in the actual mounting arrangement. If your setup uses a fixed beam center, send the holder details before ordering.

English selection reference
Selection reference ↗

Solvents and cleaning

This SKU is listed as Standard 80, an adhesive-bonded quartz construction suited to routine room-temperature aqueous samples and buffers. Avoid organic samples and organic cleaning solvents on the bonded assembly. If your method requires organic solvents or heated use, ask about a more suitable sintered or molded option before ordering.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaners. Clean the optical faces gently with non-abrasive lab wipes.

Included with this option

1 rectangular sample cell. The listed price is for one piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for projects involving different path lengths, chamber sizes, external dimensions, opening arrangements and fabrication requirements. If your application depends on a specific holder fit, beam height or end interface, send a dimensioned drawing or labelled sketch with the critical dimensions and tolerances.

Send a product-selection enquiry with SKU MQQFC012, your holder or interface details, sample conditions, quantity and delivery destination.
