(MQQFC064) Black-Wall Quartz Flow Cell, 10 mm Path, 70 µL, 15 mm Z Height

Weight50 g
SKU: MQQFC064

$317.00

In Stock

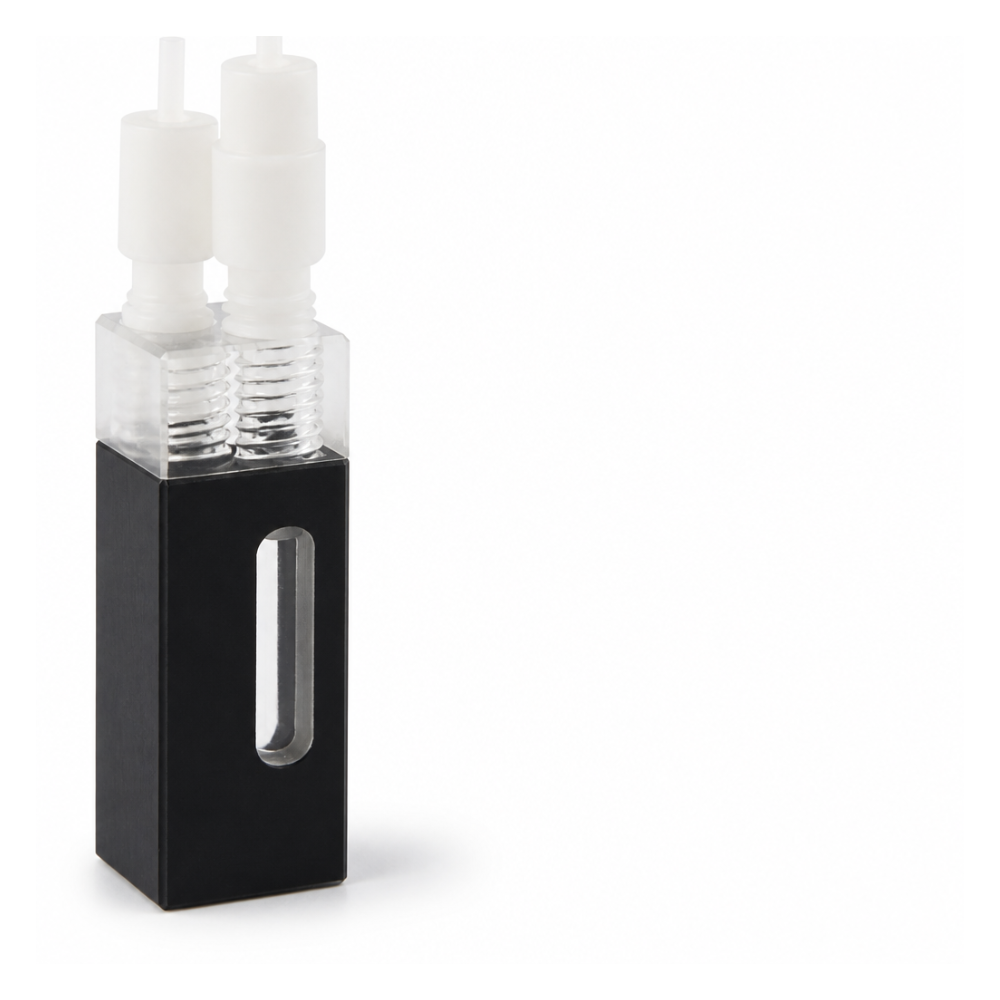

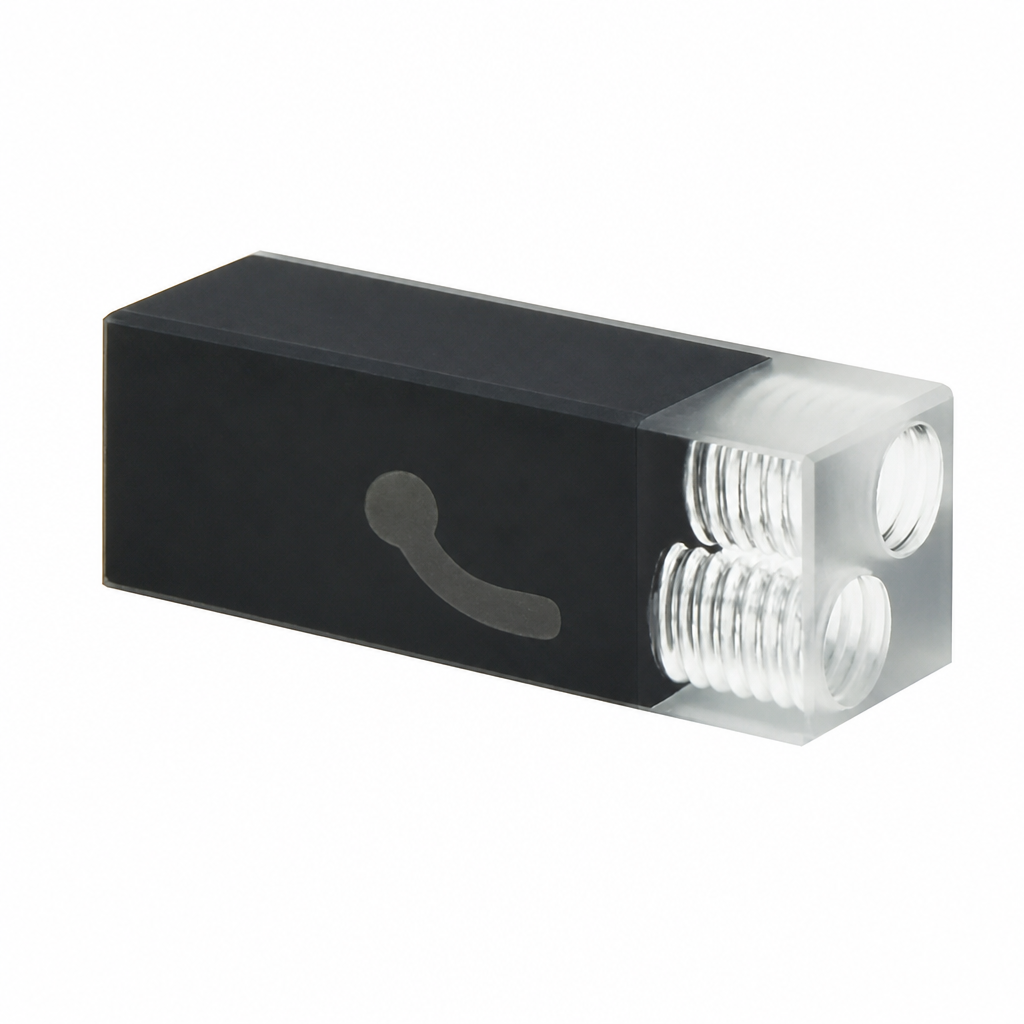

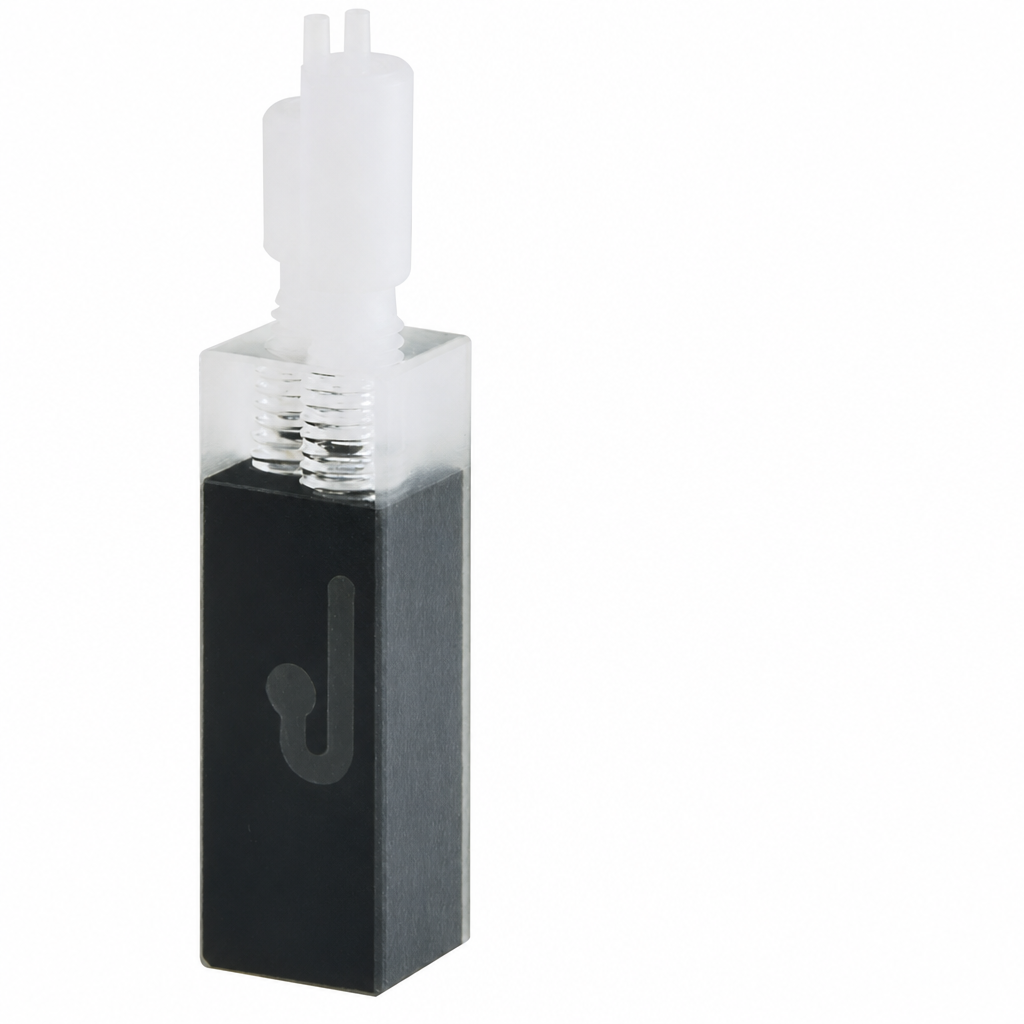

JGS1 quartz flow cell with a 10 mm optical path, 70 µL nominal capacity and a 15 mm beam-centre height. Two opposing optical faces use a 3 mm optical aperture, surrounded by a black body. Two top M6 fluid interfaces are separate from the optical opening. The bare body is 12.5 × 12.5 × 35 mm; Standard 80 construction, price per cell.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC064 is the 70 µL black-wall flow-cell version with two opposing optical faces and a 3 mm optical aperture. It combines a 10 mm measurement path with a specified 15 mm base-to-beam-centre height.

Path Length
10 mm
Sample Volume (Nominal)
70 µL
Opening Configuration
Two Threaded Fluid Ports

Selection Specifications

Product KindFlow Cell
Cell TypeFlow Cell
Measurement ModeUV/Vis Spectroscopy
Path Length10 mm
Light Transmission ConfigurationTwo-Way Light
Z Height15 mm
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)70 µL
External Dimensions12.5 × 12.5 × 35 mm
Cell Body Dimensions12.5 × 12.5 × 35 mm
External Dimensions ScopeBody Only
Body Height35 mm
Base Dimensions12.5 × 12.5 mm
MaterialQuartz
Material GradeJGS1
Port Count2
Port ThreadM6
Fabrication MethodStandard 80
Opening ConfigurationTwo Threaded Fluid Ports
Port LayoutTop connection at the left in the referenced original; Top connection at the right in the referenced original
Pack Quantity1 Piece
Package Contents1 × Quartz Micro Flow Cell

Choose this option

Choose this configuration when your method requires transmission access through the small optical opening and lower nominal sample capacity. Check beam position and opening size independently of the fluid connection geometry.

What makes this option different

  • 10 mm path / 70 µL nominal capacity: these identify the selected sample-region option. Nominal capacity is not a minimum working fill or a complete circuit volume.
  • Two opposing optical faces: align the transmission beam with the specified opening and opposing face.
  • 3 mm optical aperture: the 3 mm dimension belongs to the optical opening; it is not a fluid bore or the M6 thread size.
  • 15 mm Z Height: the centre-height reference runs from the base of the body to the illuminated region, rather than from the bottom edge of a window.

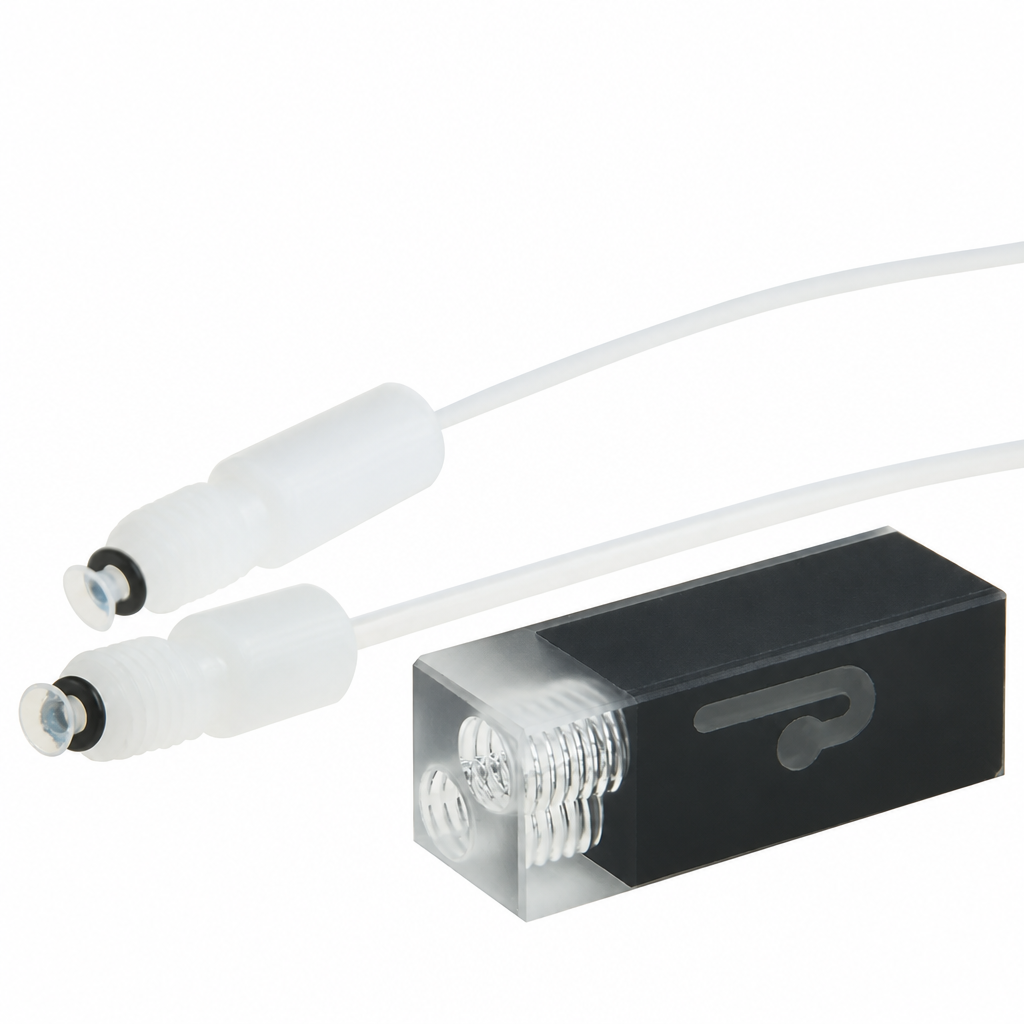

  • Two top M6 interfaces: plan the fitting and tubing arrangement for your liquid circuit. White fitting colour alone does not establish a material specification.

Using this cell

Support the body while attaching or removing fittings, and keep tubing loads off the optical assembly. Flush with a suitable blank, watch for bubbles at the illuminated region and keep the cell seated in the same orientation for blank and sample.

First-use check

  1. Inspect the optical faces, connection edges and sample region for damage or residue.
  2. Check holder support, beam direction and connection clearance before completing the liquid circuit.
  3. Flush with a suitable blank, remove bubbles and establish a stable reference before measuring the sample.

Fit and optical alignment

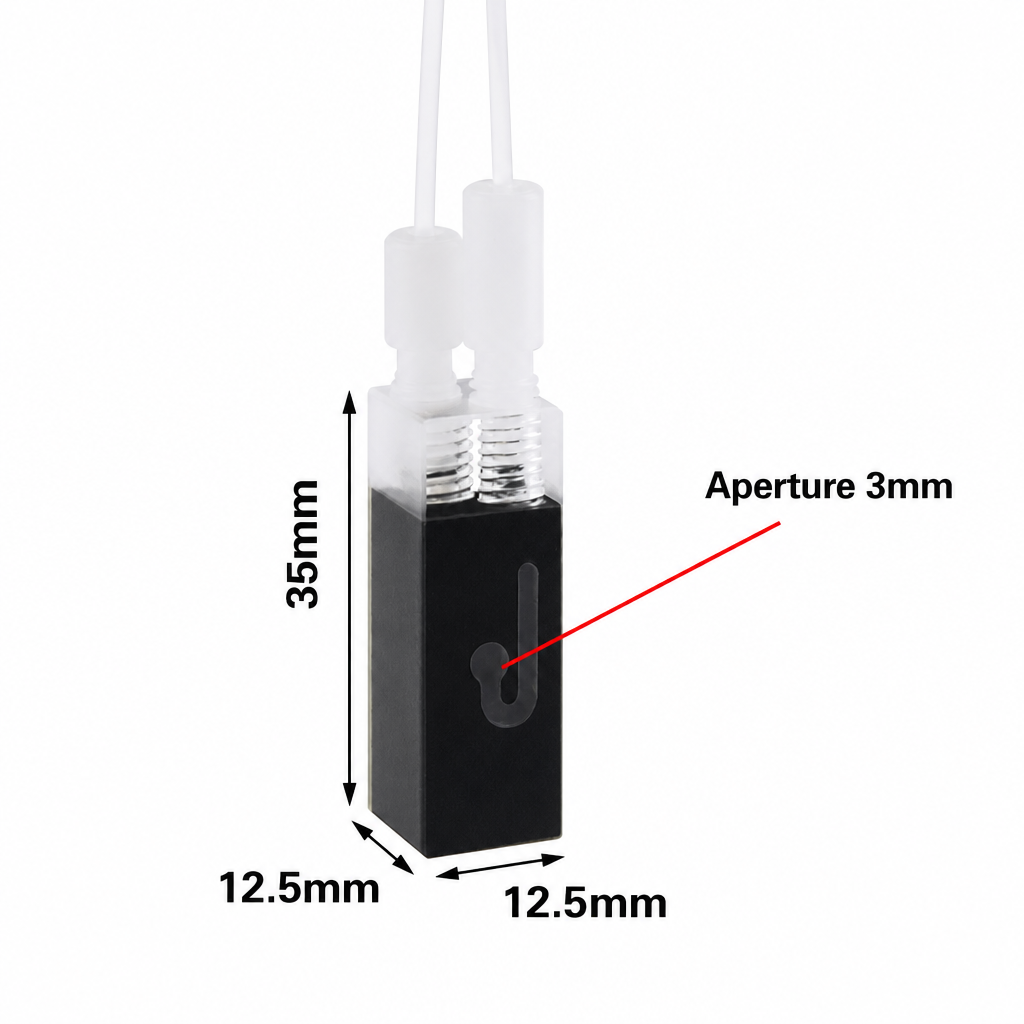

The bare body is 12.5 × 12.5 × 35 mm. Fittings and tubing project above that body envelope, so the 35 mm dimension is not the full installed height. Check holder seating, the 15 mm beam-centre height and the optical opening together; leave access to both top interfaces.

View the English selection reference.

English selection reference
Selection reference ↗

Solvents and cleaning

Standard 80: Standard 80 is an adhesive-bonded construction for routine room-temperature aqueous samples and buffers. Avoid organic sample solvents and organic cleaning agents on this bonded assembly. Check exposure for every wetted fitting, seal and tube as well as the cell.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe exterior optical faces gently with non-abrasive optical tissue, and keep handling loads off projecting connections.

Included with this option

The listed price is per flow cell. Specify the matching fittings and external tubing required by your circuit when ordering; optical-aperture dimensions do not specify those fluid accessories.

Availability and ordering

Contact us to confirm current availability and dispatch timing for your quantity. For a required delivery date, check timing before checkout; preparation and production are separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects involving optical paths, sample regions, optical access, connection geometry and mounting dimensions. Modified designs and prototype batches are quoted separately. Send your drawing, holder details, sample conditions and quantity through the contact page, and include MQQFC064.

Additional information

Weight50 g
