(MQQFC069) Quartz Flow Cell, 50 mm Path, 17.5 mL, Large Top Tube

Weight250 g
SKU: MQQFC069

$336.00

In Stock

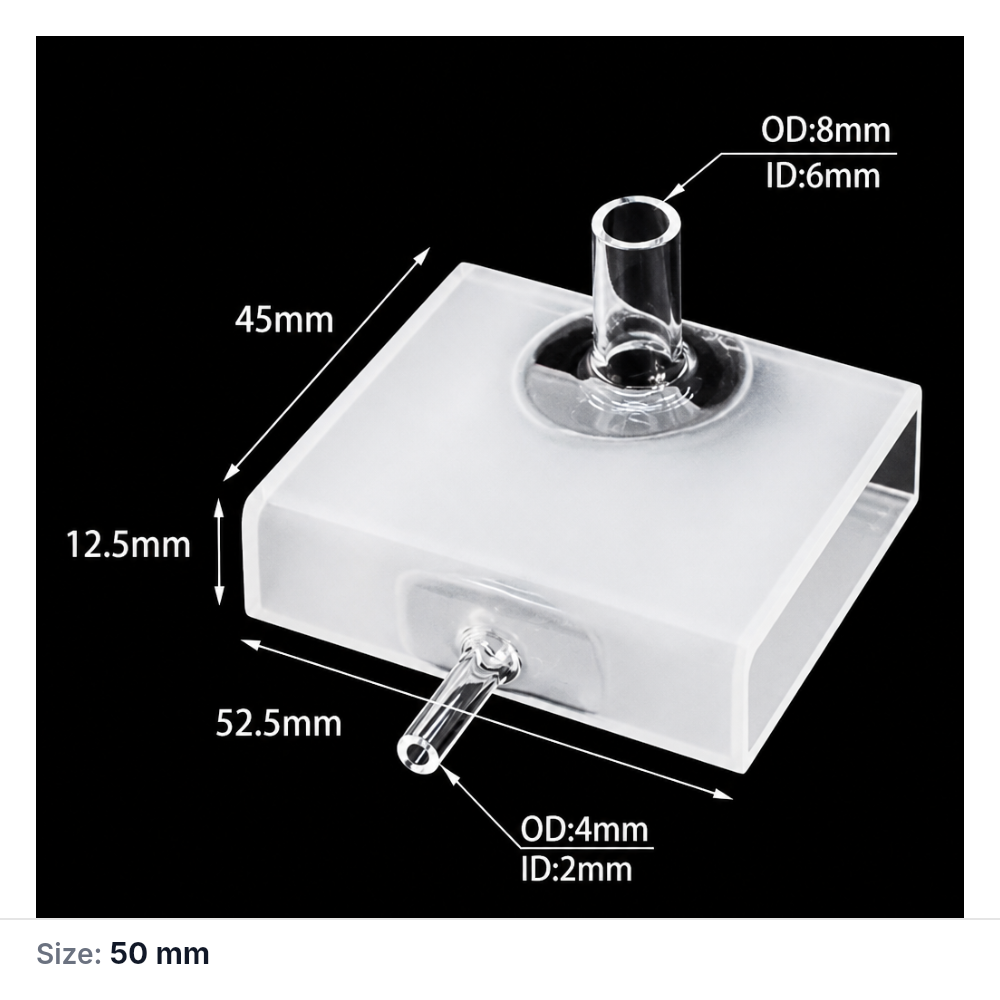

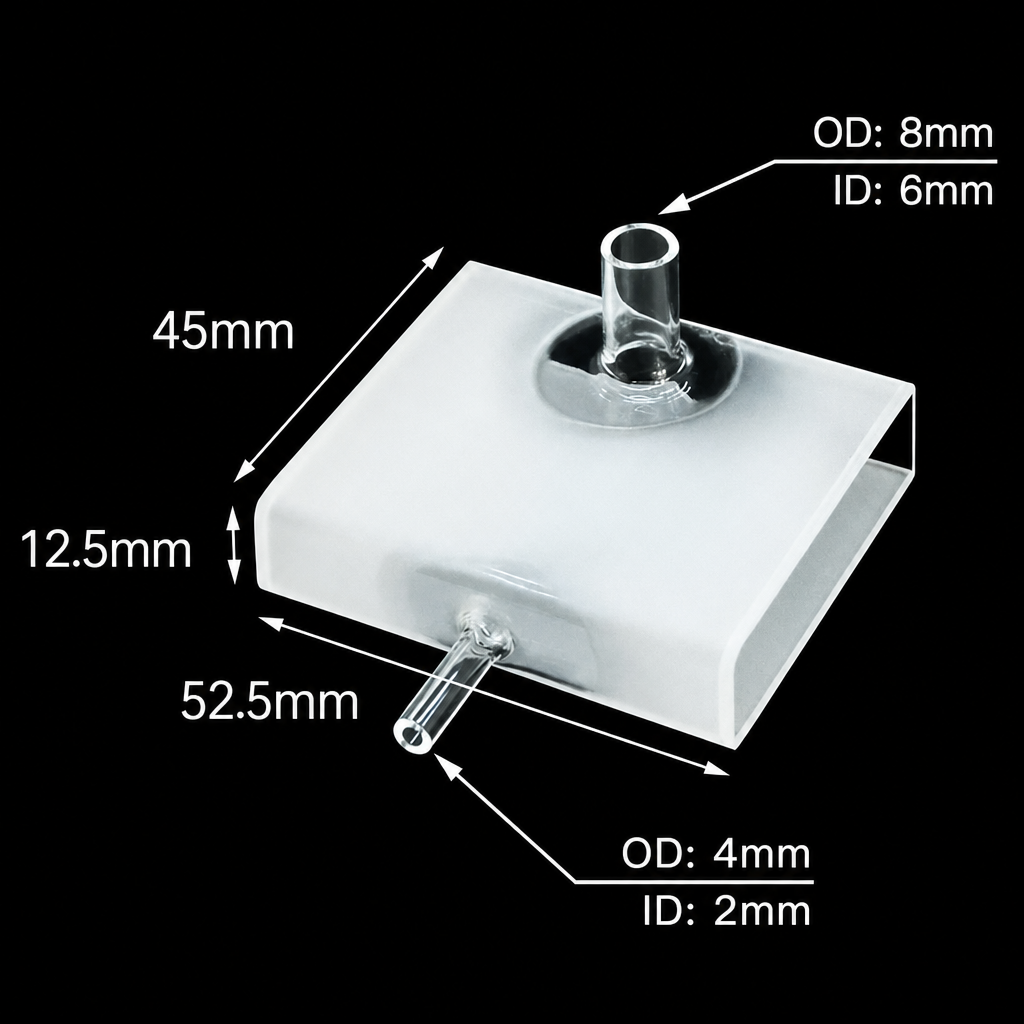

JGS1 quartz flow cell with a 50 mm optical path, 17.5 mL nominal capacity and two opposing optical faces. The top tube is 8 mm OD / 6 mm ID; the side tube is 4 mm OD / 2 mm ID. Its 52.5 × 45 × 12.5 mm body excludes both projecting connections. The larger connection is on top in this version; one cell supplied.

In Stock
Add to Wishlist
Add to Wishlist
SKU: MQQFC069 Categories: , , Tags: , ,
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC069 is the 50 mm / 17.5 mL flow-cell version with the larger connection on top. It combines a broad, pale frosted body with two opposing clear optical faces for transmission measurement through the stated path.

Path Length
50 mm
Sample Volume (Nominal)
17.5 mL
Opening Configuration
One Top Tube and One Side Tube

Selection Specifications

Product KindFlow Cell
Cell TypeFlow Cell
Measurement ModeUV/Vis Spectroscopy
Path Length50 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)17.5 mL
External Dimensions52.5 × 45 × 12.5 mm
Cell Body Dimensions52.5 × 45 × 12.5 mm
External Dimensions ScopeBody Only
MaterialQuartz
Material GradeJGS1
Port Count2
Opening ConfigurationOne Top Tube and One Side Tube
Port Layouttop in source drawing, OD 8 mm, ID 6 mm; side/front in source drawing, OD 4 mm, ID 2 mm
Pack Quantity1 Piece
Package Contents1 × Quartz Flow Cell

Choose this option

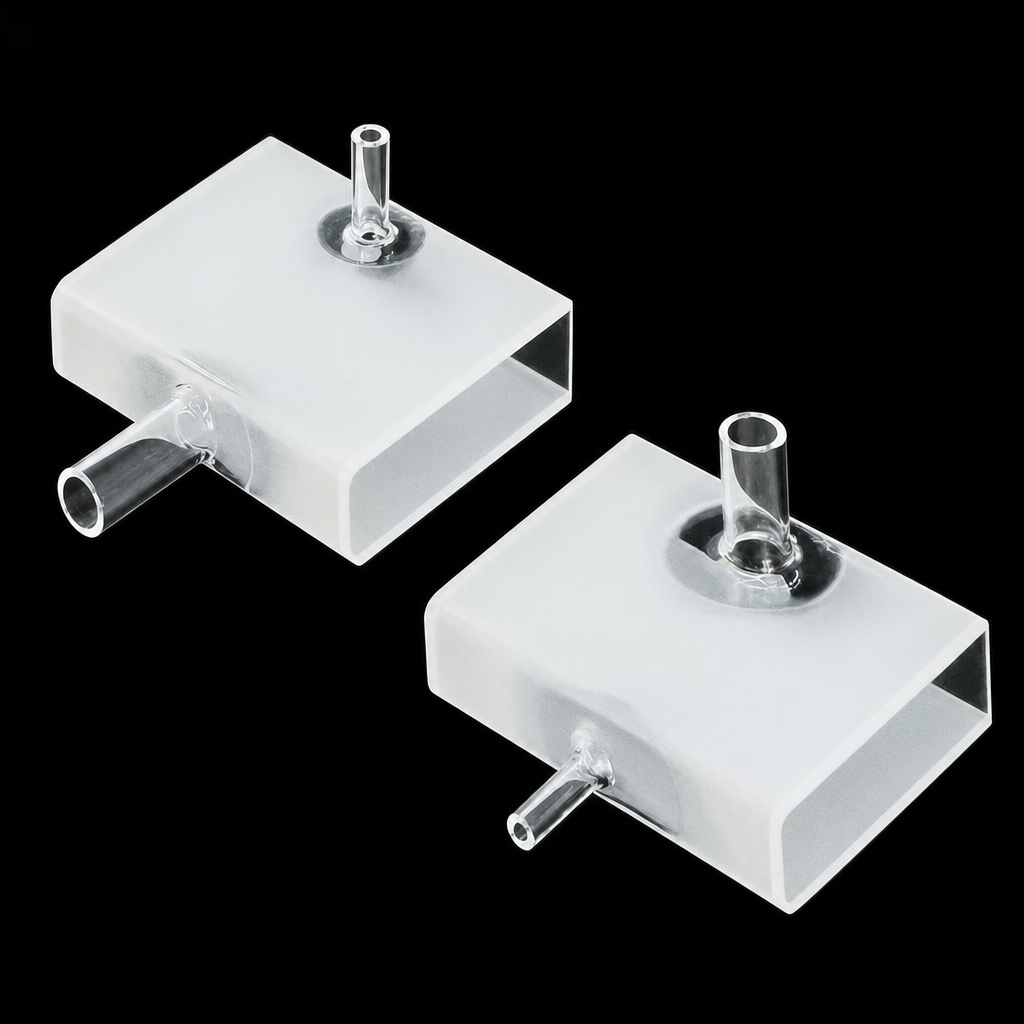

Choose this configuration when your liquid-circuit layout needs a 8 mm OD / 6 mm ID top connection and a 4 mm OD / 2 mm ID side connection. The paired alternative reverses the large and small tube positions while keeping the same optical path, nominal capacity and body dimensions.

What makes this option different

  • 50 mm optical path: align the transmission beam with the two clear optical faces. The pale frosted body surfaces are not additional specified optical windows.
  • 17.5 mL nominal capacity: this identifies the chamber option; it does not state a minimum working fill or the total volume of your external tubing.
  • Different connection diameters: top 8 mm OD / 6 mm ID, side 4 mm OD / 2 mm ID. Match each connection separately rather than selecting one tubing size for both.
  • Large top tube arrangement: reserve clearance in that direction and support attached tubing independently of the cell. Connection position does not assign a universal inlet or outlet role.
  • 52.5 × 45 × 12.5 mm body: the projecting connections extend beyond these dimensions.

Using this cell

Hold the supported body while making fluid connections. Fill and flush with a suitable blank and inspect the optical region for bubbles. Choose inlet and outlet routing for your setup, and keep tube loads off the cell during use and cleaning.

First-use check

  1. Inspect the optical faces, connection edges and sample region for damage or residue.
  2. Check holder support, beam direction and connection clearance before completing the liquid circuit.
  3. Flush with a suitable blank, remove bubbles and establish a stable reference before measuring the sample.

Fit and optical alignment

Check the body envelope, optical beam direction and the clearance around both tubes as separate requirements. Support the body in the intended fixture and leave room for the bend radius of attached tubing. A matching nominal path does not establish holder or fitting compatibility.

View the English selection reference.

English selection reference
Selection reference ↗

Solvents and cleaning

Select sample and cleaning conditions for the complete wetted assembly, including the quartz body, both connections and any tubing or seals you add. The cell construction does not by itself establish a pressure rating or compatibility with every solvent.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe exterior optical faces gently with non-abrasive optical tissue, and keep handling loads off projecting connections.

Included with this option

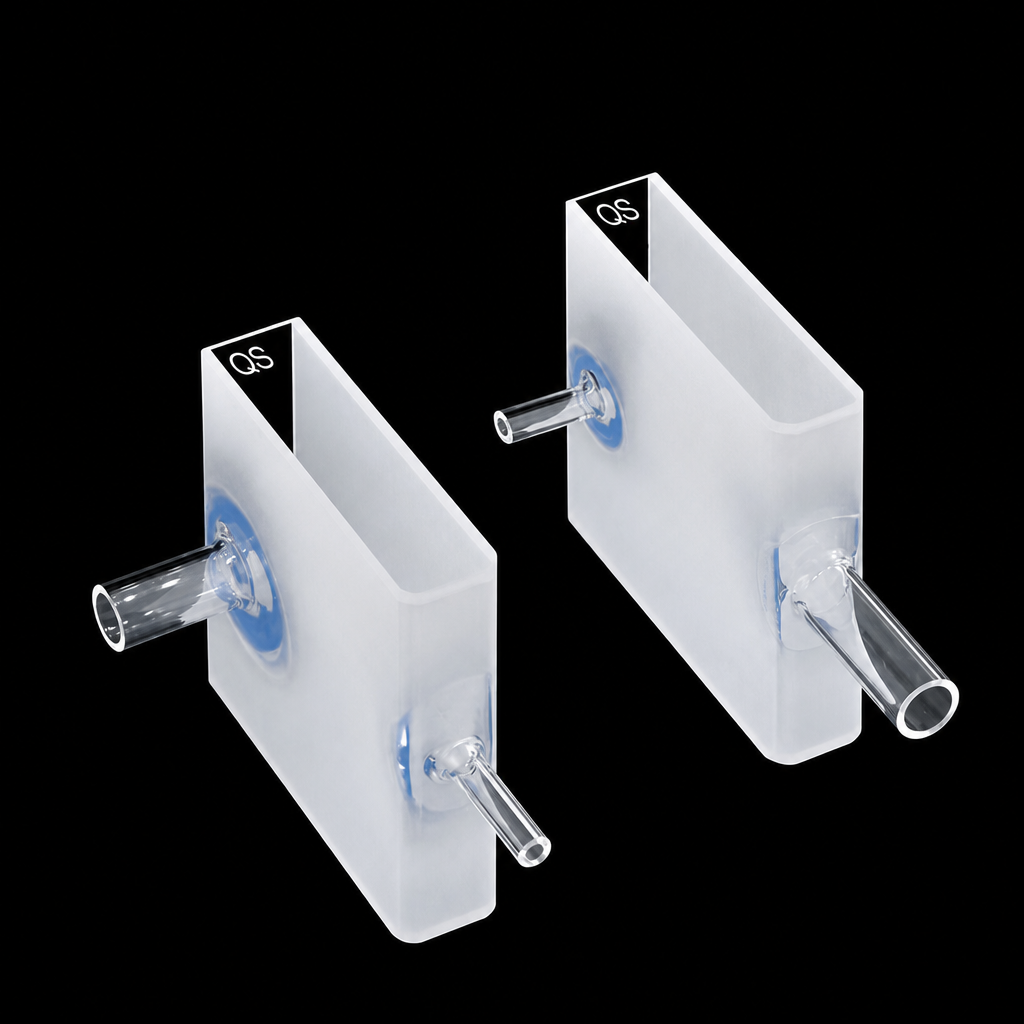

One flow cell in the large/small tube arrangement shown. The listed price is per cell; family comparison pictures do not indicate a two-cell set.

Availability and ordering

Contact us to confirm current availability and dispatch timing for your quantity. For a required delivery date, check timing before checkout; preparation and production are separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects involving optical paths, sample regions, optical access, connection geometry and mounting dimensions. Modified designs and prototype batches are quoted separately. Send your drawing, holder details, sample conditions and quantity through the contact page, and include MQQFC069.
