(MQQFC072) Quartz Flow Cell, 10 mm path, 10 mL nominal capacity, Body with End Flanges
$773.00
JGS1 quartz flow cell for UV/Vis use, with a 10 mm optical path, Four-Way Light access and 10 mL nominal capacity. Its 10 × 10 mm internal section, 80 mm body height and end-flange format suit installations that need both a defined optical region and end-mounted support. Sold as 1 piece.
Description
MQQFC072 is a JGS1 quartz flow cell for UV/Vis setups that use a 10 mm optical path with light access from four sides around the sample region. Its 10 × 10 mm internal section, 10 mL nominal capacity and end-flange format make it a practical choice when the optical space and the mounting arrangement both need to be considered. This version uses a supplier-described powder-fusion construction.
- Path Length
- 10 mm
- Sample Volume (Nominal)
- 10 mL
- Opening Configuration
- Two End Openings
Selection Specifications
| Product Kind | Flow Cell |
|---|---|
| Cell Type | Flow Cell |
| Measurement Mode | UV/Vis Spectroscopy |
| Path Length | 10 mm |
| Light Transmission Configuration | Four-Way Light |
| Sample Volume (Nominal) | 10 mL |
| Internal Dimensions | 10 × 10 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Opening Configuration | Two End Openings |
| Pack Quantity | 1 Piece |
| Package Contents | 1 × Quartz Flow Cell |
Choose this option
Choose MQQFC072 when your method is built around a 10 mm flow path and an end-mounted flange layout rather than a standard cuvette position. The square internal section and Four-Way Light geometry are useful when the cell must sit inside a dedicated holder or assembly and still leave optical access on more than one side.
What makes this option different
- 10 mm optical path with a 10 × 10 mm internal section for a larger straight-through chamber format.
- Four-Way Light gives optical access on four sides around the sample region.
- 80 mm body height in the central section, with end flanges for mounting in a dedicated assembly.
- Powder-fusion construction on a JGS1 quartz body for this specific build style.

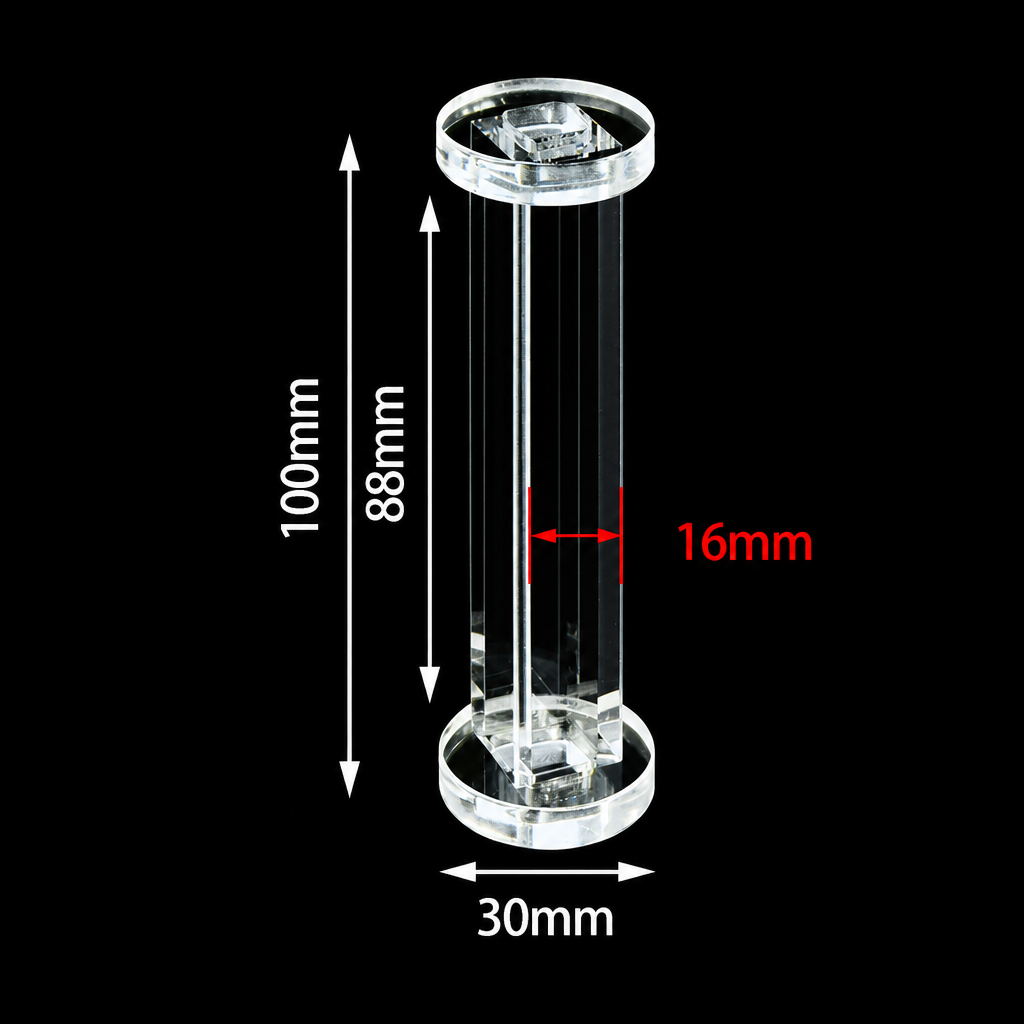

Structure and dimensions

Using this cell
Install the cell with support on the body and flange areas, not through bending load on connected tubing or external hardware. Fill gradually and clear bubbles from the optical region before taking a blank or sample reading.
The 10 mL value is a nominal capacity for planning circulation and flushing. It should not be treated as a minimum working volume, so the liquid level and flow condition still need to keep the optical region fully covered during measurement.
First-use check
- Inspect the optical faces, internal passage and flange-contact areas before assembly.
- Check holder and flange fit before tightening the full fluid connection.
- Run a blank after filling and repeat after any visible bubble removal.
Fit and optical alignment
View the English selection reference.

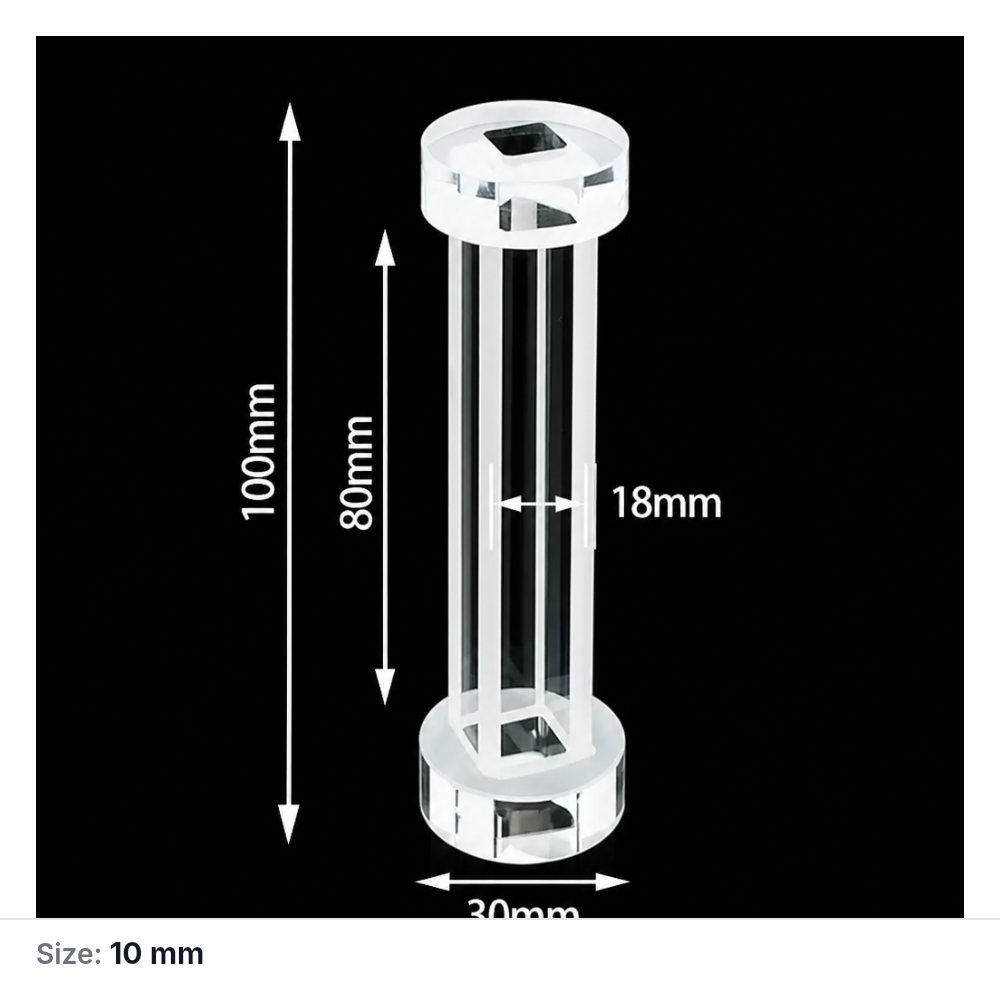

The checked geometry includes an 80 mm central body height and a 10 × 10 mm internal section. The end flange features are separate from the square optical body, so the full mounting footprint should be matched to your own support hardware rather than assumed from the sample chamber alone.
Z Height is not established for this SKU, so beam-centre compatibility still needs to be checked against your instrument or holder. Confirm the pressure limit and sealing arrangement before using this cell in a pressurized circuit.

Solvents and cleaning
This cell uses quartz with a supplier-described powder-fusion construction. Choose the sample and cleaning method for the complete assembly, including any seals and fittings used in your system. If your process involves aggressive chemicals, organic solvents, elevated temperature or long soak times, review the full assembly conditions before use.
Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning materials, and clean the optical faces gently with suitable non-abrasive optical tissue.
Included with this option
1 Quartz Flow Cell.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz flow cells for requirements involving path length, chamber size, external envelope, flange style and other drawing-based details. Use this contact page to send your holder information, drawing, sample conditions, quantity and delivery destination.
Additional information
| Weight | 75 g |
|---|
