(MQQFL016) Quartz Micro Cuvette, 10 mm path, 20 µL nominal capacity, Small Raised Sample Region
Description
MQQFL016 is a JGS1 quartz ultra-micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light access and 20 µL nominal capacity. The open-top format gives direct access to the sample region, while the 12.5 × 12.5 × 45 mm body-only size helps you review holder clearance before ordering.
This cell is useful when you need a very small nominal volume but still want a standard 10 mm path in a compact quartz body. Its stated 200–2500 nm range also supports UV/Vis use within the limits of this exact cell design.
- Path Length
- 10 mm
- Sample Volume (Nominal)
- 20 µL
- Opening Configuration
- Open Top
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Ultra-Micro Cuvette |
| Measurement Mode | Fluorescence Spectroscopy |
| Path Length | 10 mm |
| Light Transmission Configuration | Four-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 20 µL |
| External Dimensions | 12.5 × 12.5 × 45 mm |
| Cell Body Dimensions | 12.5 × 12.5 × 45 mm |
| External Dimensions Scope | Body Only |
| Body Height | 45 mm |
| Base Dimensions | 12.5 × 12.5 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Fabrication Method | Standard 80 |
| Opening Configuration | Open Top |
| Pack Quantity | 1 Piece |
| Package Contents | 1 × Quartz Micro Cuvette |
Choose this option
Choose MQQFL016 when your method needs a 10 mm path in a very small-volume cell and your optical setup benefits from side access around the sample region. The open top keeps filling straightforward, and the body-only dimensions give you a practical starting point for checking holder fit and access above the cell.
What makes this option different
- 20 µL nominal capacity for ultra-micro sample handling in a complete cuvette body.
- 10 mm optical path for methods that require this path length rather than a shorter micro-scale path.
- Four-Way Light configuration for fluorescence layouts that use optical access from multiple sides.
- Open-top body for direct pipette loading and visual inspection of the sample region.
- 12.5 × 12.5 × 45 mm body-only size to check holder clearance separately from beam-height requirements.
- Standard 80 adhesive-bonded construction for routine room-temperature water-based work rather than solvent-heavy use.

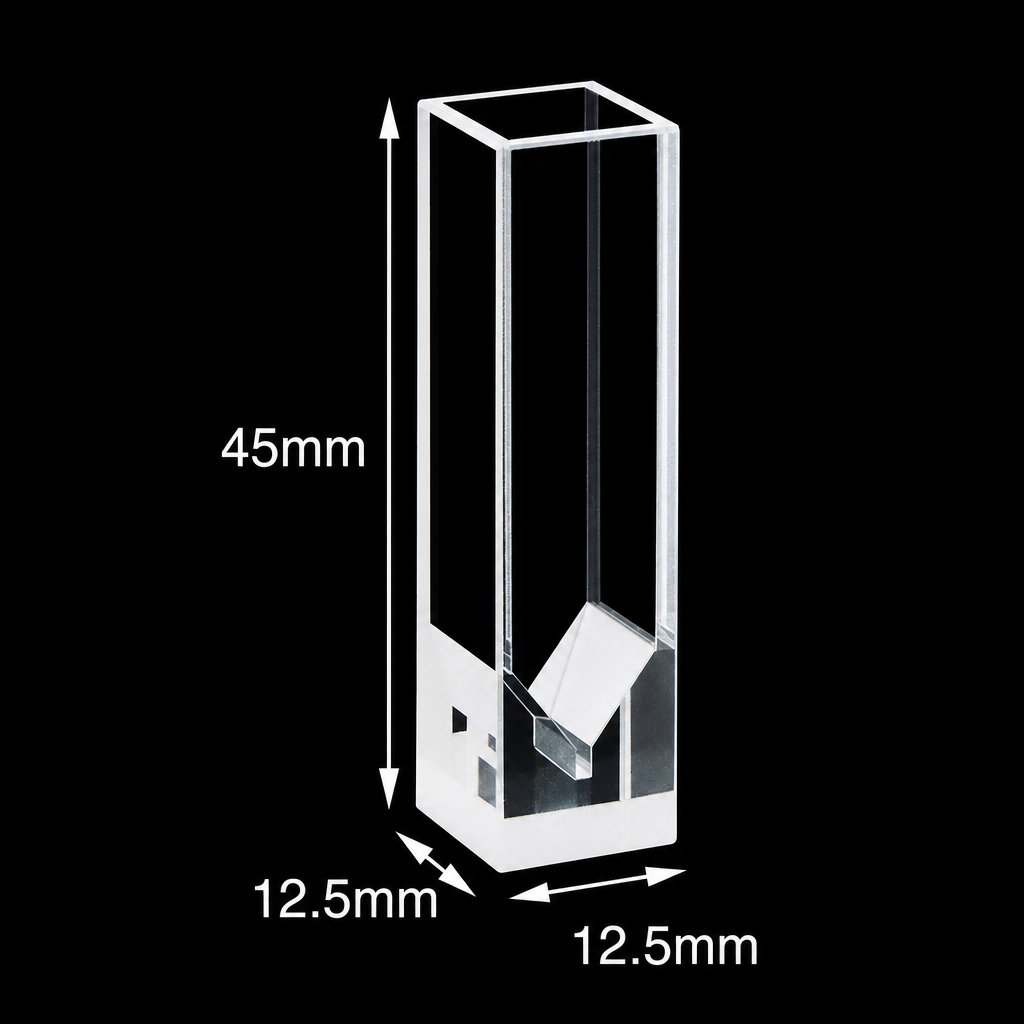

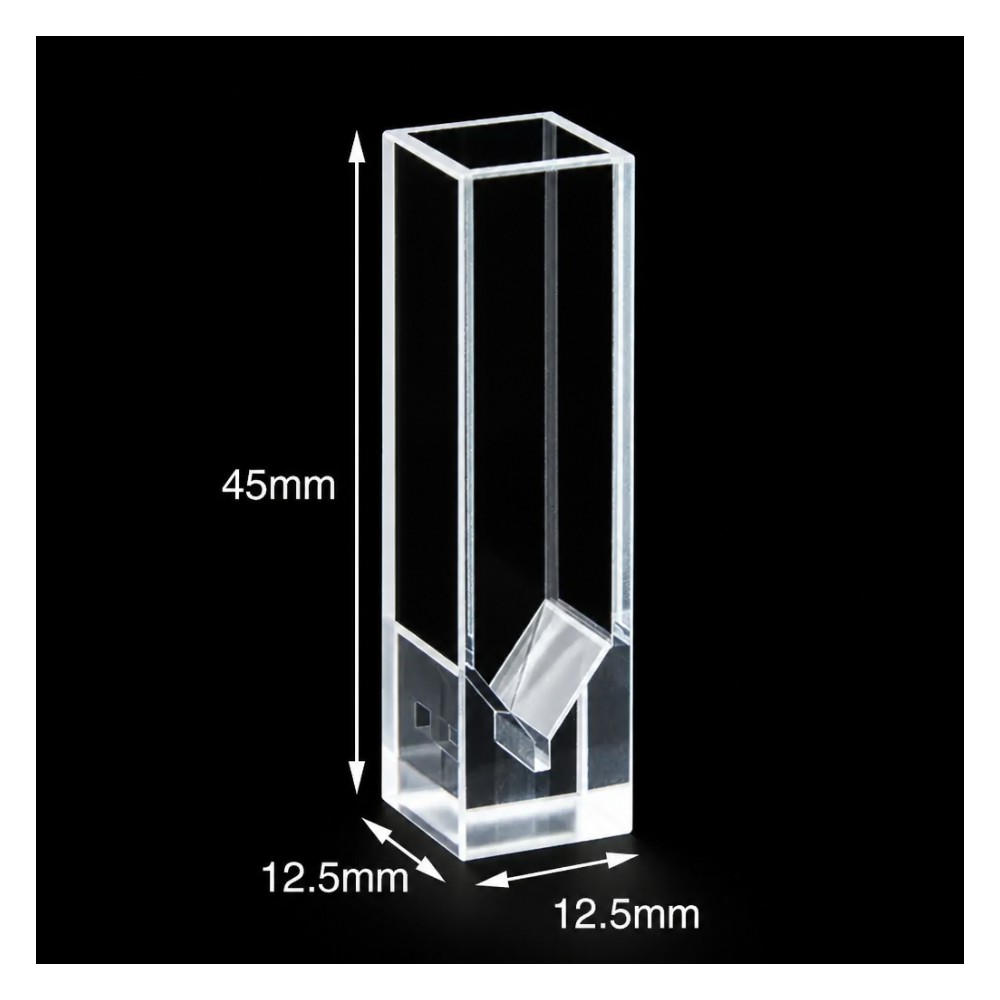

Structure and dimensions

Using this cell
Fill the cell from the open top and keep the measurement orientation consistent between blank and sample. Because the nominal volume is 20 µL, pay close attention to bubble formation and whether the filled sample region fully covers the beam used by your instrument.
Check for droplets on the outside optical faces before measurement. A small-volume cell benefits from careful handling so the illuminated area stays clear and repeatable from run to run.
First-use check
- Inspect the cuvette body and optical faces for chips, residue or handling marks.
- Test the fit in your holder before preparing critical samples.
- Run a blank in the intended orientation and confirm the beam passes through the filled sample region as expected.
Fit and optical alignment
View the English selection reference. Also available in the product gallery.
The stated external dimensions apply to the body only: 12.5 × 12.5 × 45 mm. Use those dimensions to check physical clearance in the holder and access for filling, but confirm beam position separately if your instrument requires a specific optical centre or Z Height, because Z Height is not stated for this SKU.
Four-Way Light describes the supported optical access category, not a universal instrument match. If your setup depends on a defined beam height, aperture or holder geometry, send those details before ordering.

Solvents and cleaning
This cuvette uses Standard 80 adhesive-bonded construction. For this fabrication type, water-based samples and routine room-temperature buffer work are generally the safer starting point.
Avoid organic samples and organic cleaning solvents with this adhesive-bonded cell. If your method involves organic solvents, aggressive chemicals, elevated temperature or long contact time, check the full sample and cleaning conditions for the exact assembly before use.
Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the exterior optical faces with a non-abrasive optical tissue or another gentle lab cleaning method suitable for quartz surfaces.
Included with this option
1 Quartz Micro Cuvette.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send your drawing or holder information, critical dimensions, sample conditions and target quantity so we can review the project scope.
Send a product-selection enquiry with SKU MQQFL016 and your application details.
Additional information
| Weight | 50 g |
|---|
