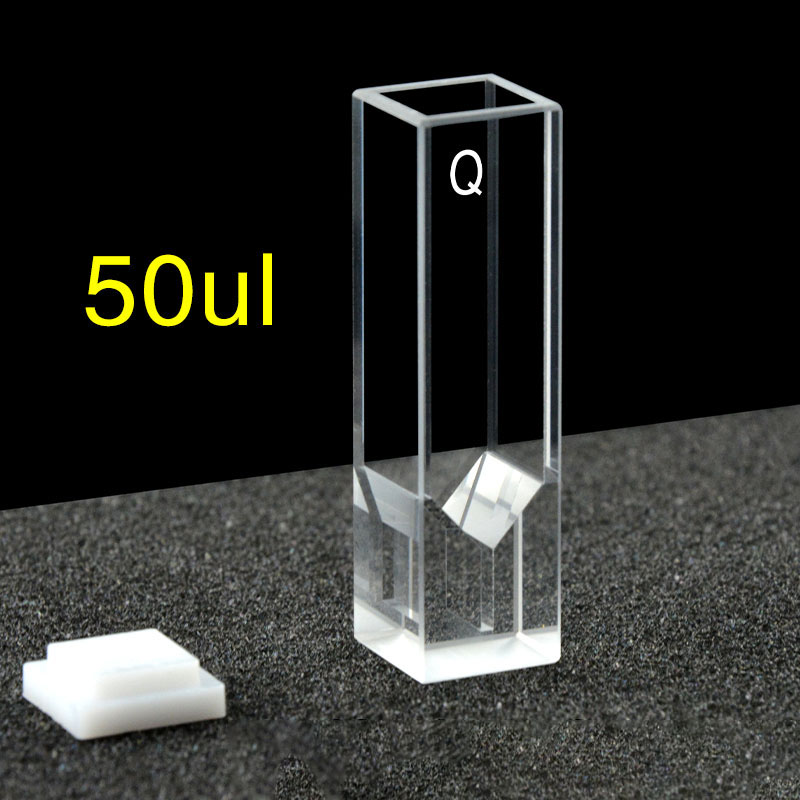

(C104CS43) Quartz Ultra-Micro Cuvette, 10 mm Path, 50 µL

Weight	30 g

SKU: C104CS43

Original price was: $223.00.Current price is: $201.00.

In Stock

C104CS43 is a JGS1 quartz ultra-micro cuvette with a 10 mm optical path, 50 µL nominal capacity, Four-Way Light configuration and an open top for direct pipette access. It suits small-volume four-side optical setups where the body geometry and beam position are already known to match your holder. Supplied as 1 cuvette.

In Stock

SKU: C104CS43 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS43 is a compact JGS1 quartz ultra-micro cuvette that combines a 10 mm optical path with a 50 µL nominal capacity in a 12.5 × 12.5 mm square body. Its open-top format gives direct access to the sample, while the Four-Way Light layout supports optical access from four sides for methods that use that geometry.

This is a useful choice when you want the familiar 10 mm path length without moving to a full-size sample volume. The square body helps with holder seating checks, but the beam-center height is not specified for this model, so fit should be checked against your own instrument or fixture.

Path Length: 10 mm
Sample Volume (Nominal): 50 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	50 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Body Only
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Opening Configuration	Open Top

Choose this option

Choose C104CS43 when your method is built around a 10 mm path and a small nominal fill, and when you need an open-top cell that can be filled, inspected and rinsed directly from above. The 50 µL nominal capacity makes it relevant for small-sample work, while the Four-Way Light configuration is useful for setups that rely on side optical access as well as the main beam path.

What makes this option different

Open-top access lets you pipette, rinse and visually check the sample directly from above.
10 mm optical path keeps this ultra-micro format aligned with methods written for that path length.
Four-Way Light configuration provides optical access on four sides for suitable beam geometry.
50 µL nominal capacity gives a small-volume sample region without changing to a non-square body format.
12.5 × 12.5 mm square body gives a clear holder-fit starting point for installations that accept this standard cross-section.
Supplier-labelled HELLMA process identifies a supplier process designation for this exact SKU, but the joining method is not specified here, so selection should stay focused on the confirmed geometry and your own sample and cleaning conditions.

Using this cell

Fill the cell from the top and make sure the illuminated region is fully covered before measurement. The 50 µL figure is the nominal capacity of the sample chamber, not a minimum working volume, so the actual fill level depends on your beam size and how your instrument addresses the sample region.

Use a consistent orientation for blank, standard and sample measurements. Because this is an open-top cell, it is intended for upright use and direct access during filling and rinsing rather than sealed, inverted or pressure-based operation.

First-use check

Inspect the optical faces and top opening for chips, residue or handling marks.
Seat the cuvette in your holder and check that it stands square and stable.
Run a blank at your intended fill level and confirm that the illuminated region is fully covered without bubbles.

Fit and optical alignment

The body dimensions are 12.5 × 12.5 × 45 mm, and those dimensions apply to the cuvette body itself. That helps you check holder seating and side clearance in square-cell fixtures.

Z Height is not established for this model, so do not assume beam alignment from the 45 mm body height alone. If your instrument has a fixed beam center or fluorescence optics that depend on a specific sample-region position, confirm that relationship in your own holder before ordering.

Solvents and cleaning

This cuvette is made from JGS1 quartz. The exact joining details and assembly-specific chemical limits are not established here, so match the cell to your sample liquid and cleaning routine before use, especially for aggressive chemicals, extended soaking or specialised cleaning agents.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue after rinsing. For general fabrication background, see this overview.

Included with this option

Supplied as 1 cuvette. A closure or other accessories are not specified for this listing.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, path length, sample volume, optical windows, Z Height, closures and related fit requirements. Send a dimensioned drawing or labelled sketch, together with your holder details, wavelength range, sample conditions and quantity. To discuss a modified version, visit Discuss your requirements and quote C104CS43.
