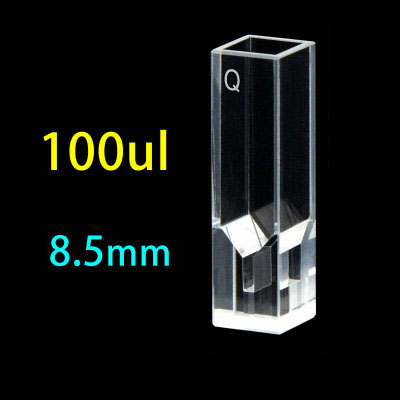

(C104CS61) Quartz Ultra-Micro Cuvette, 10 mm Path, 100 µL

Weight	30 g

SKU: C104CS61

Original price was: $175.00.Current price is: $158.00.

In Stock

C104CS61 is a JGS1 quartz ultra-micro cuvette with a 10 mm optical path, 100 µL nominal capacity and Four-Way Light access. Its open-top chamber gives direct pipette access, and the 8.5 mm Z Height helps you check beam position from the cuvette base. Sold as 1 cuvette per listed sale.

In Stock

SKU: C104CS61 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS61 is a JGS1 quartz ultra-micro cuvette for small-volume UV/Vis and fluorescence work, combining a 10 mm optical path with a 100 µL nominal capacity in an open-top body. Its Four-Way Light layout gives optical access from multiple sides, while the 8.5 mm Z Height helps you plan beam placement from the base rather than from total body height.

Path Length: 10 mm
Sample Volume (Nominal): 100 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Z Height	8.5 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	100 µL
External Dimensions	12.5 × 12.5 × 45 mm
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Opening Configuration	Open Top

Choose this option

Choose C104CS61 when you need a full 10 mm path in a compact sample cell and want direct top access for pipetting. The open chamber makes loading and checking the sample straightforward, and the stated 8.5 mm Z Height is useful when your holder or instrument has a defined beam position that must line up with the sample region.

What makes this option different

10 mm optical path keeps this common path length in an ultra-micro format for small-volume measurements.
100 µL nominal capacity helps you plan sample preparation for a compact sample region; nominal capacity is not a minimum working volume.
Four-Way Light configuration provides side optical access around the sample chamber for supported measurement geometries.
Open-top chamber allows direct filling, inspection and emptying from above without a built-in closed assembly.
8.5 mm Z Height gives a bottom-to-optical-centre reference for beam alignment checks.
JGS1 quartz body supports use across the stated 200–2500 nm wavelength range for this SKU.

Using this cell

Fill the cell from the top and make sure the illuminated region is covered during measurement. Load carefully to avoid bubbles in the beam area, and keep the optical faces free from droplets, fingerprints and dried residue.

This is an open-top cell body, so use it in an upright arrangement that suits open filling. If your method depends on sealed handling, inversion or pressure, you will need to review whether a separate closure arrangement is suitable for your setup.

First-use check

Inspect the optical faces before first use and confirm that the base seats evenly in your holder. Then test with your blank or sample matrix to confirm that your practical fill level covers the beam path in the measurement orientation you use.

Fit and optical alignment

The external body dimensions are 12.5 × 12.5 × 45 mm. Check holder seating and surrounding clearance in your instrument, especially if your setup adds any support, cover or adapter around the bare cell body.

The stated Z Height is 8.5 mm from the base to the optical centre. Use that bottom reference when checking beam alignment, because total body height alone does not establish whether the beam will pass through the intended sample region.

Solvents and cleaning

Quartz is widely used for UV and visible measurements, but the exact chemical limits of this assembly are not specified here. If your sample, rinse solvent or cleaning routine involves aggressive chemicals or extended contact, check suitability for your conditions before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the exterior optical faces gently with non-abrasive optical tissue.

For general fabrication background, see MQ Cuvette Fabrication Glossary.

Included with this option

Sold as 1 cuvette per listed sale. Additional supplied accessories or closure details are not specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review related custom JGS1 quartz requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch, your holder or instrument information, the key dimensions and tolerances for your application, and your sample conditions. You can discuss your project at Discuss your requirements.
