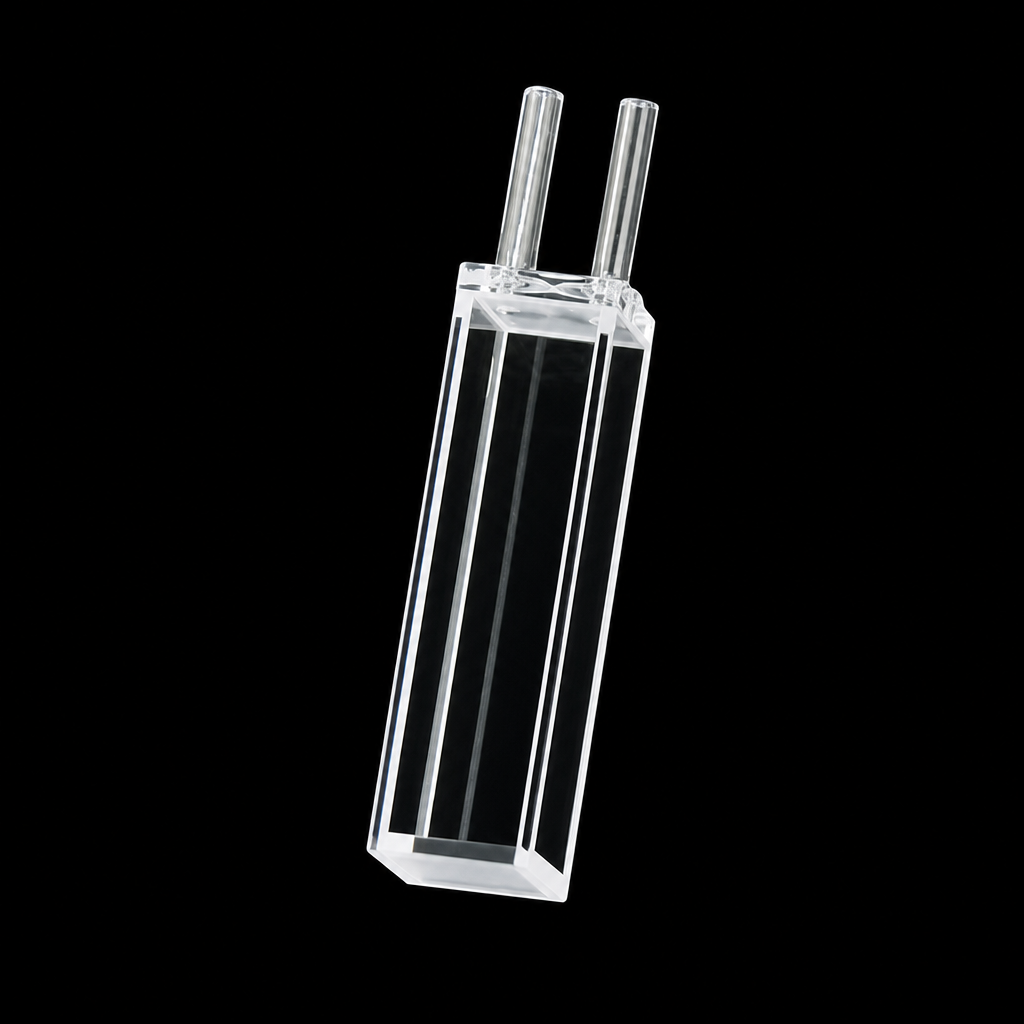

(MQQFL019) Quartz Flow Cell, 10 mm path, 3.5 mL nominal capacity, Upright Twin-Tube Layout
$239.00

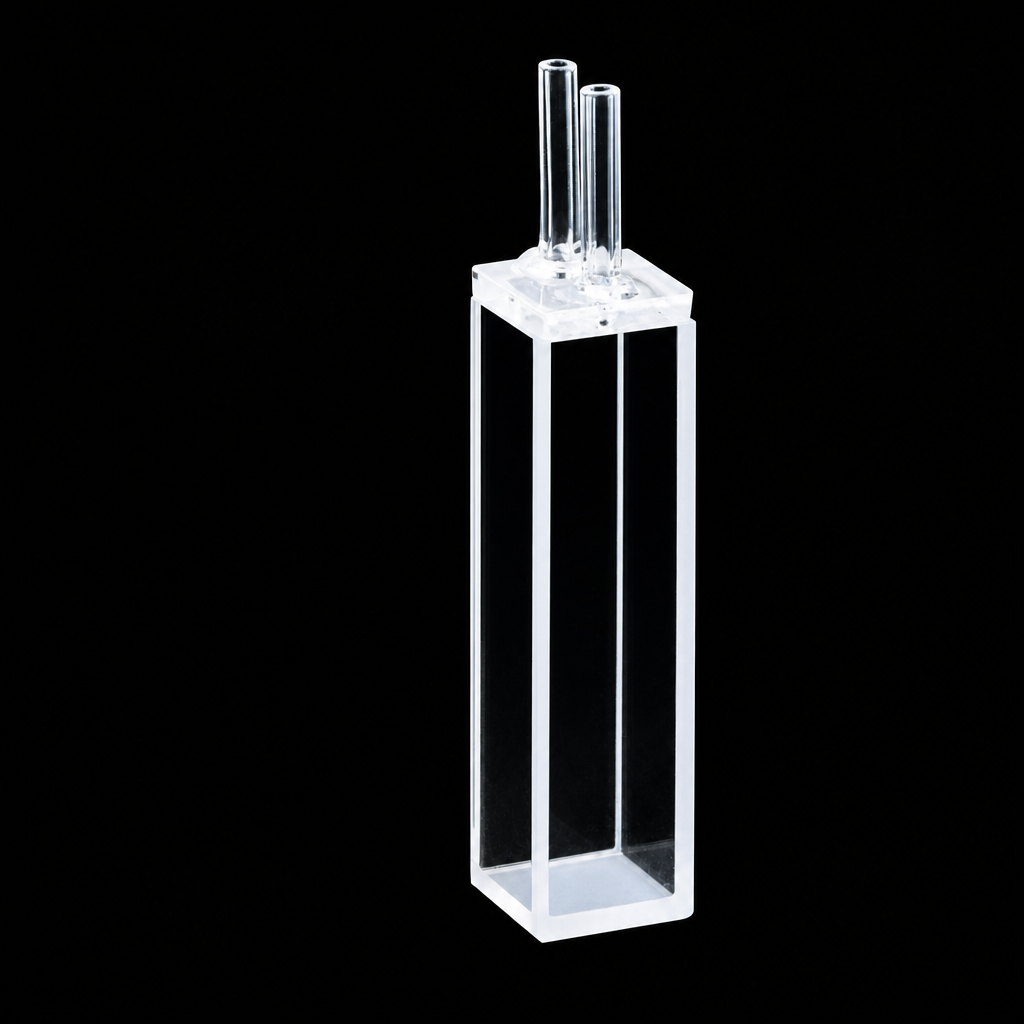

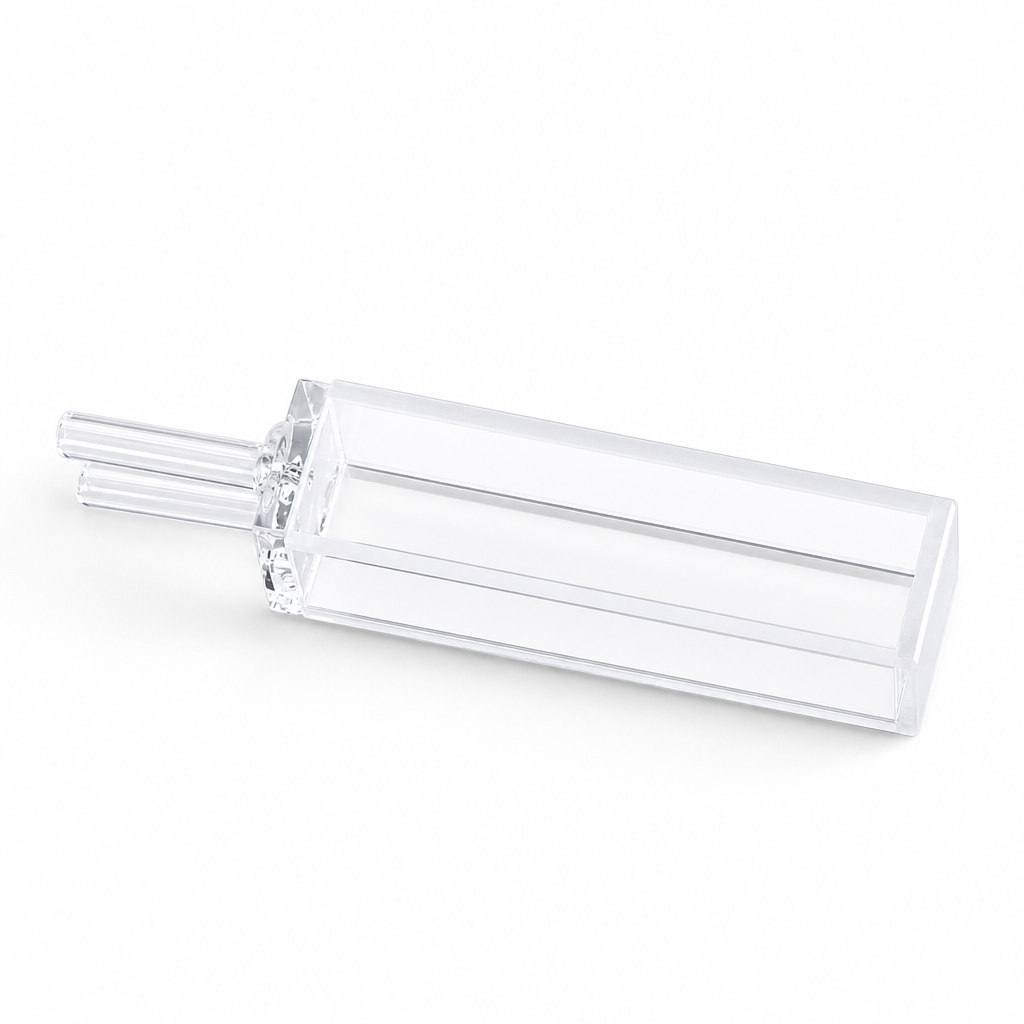

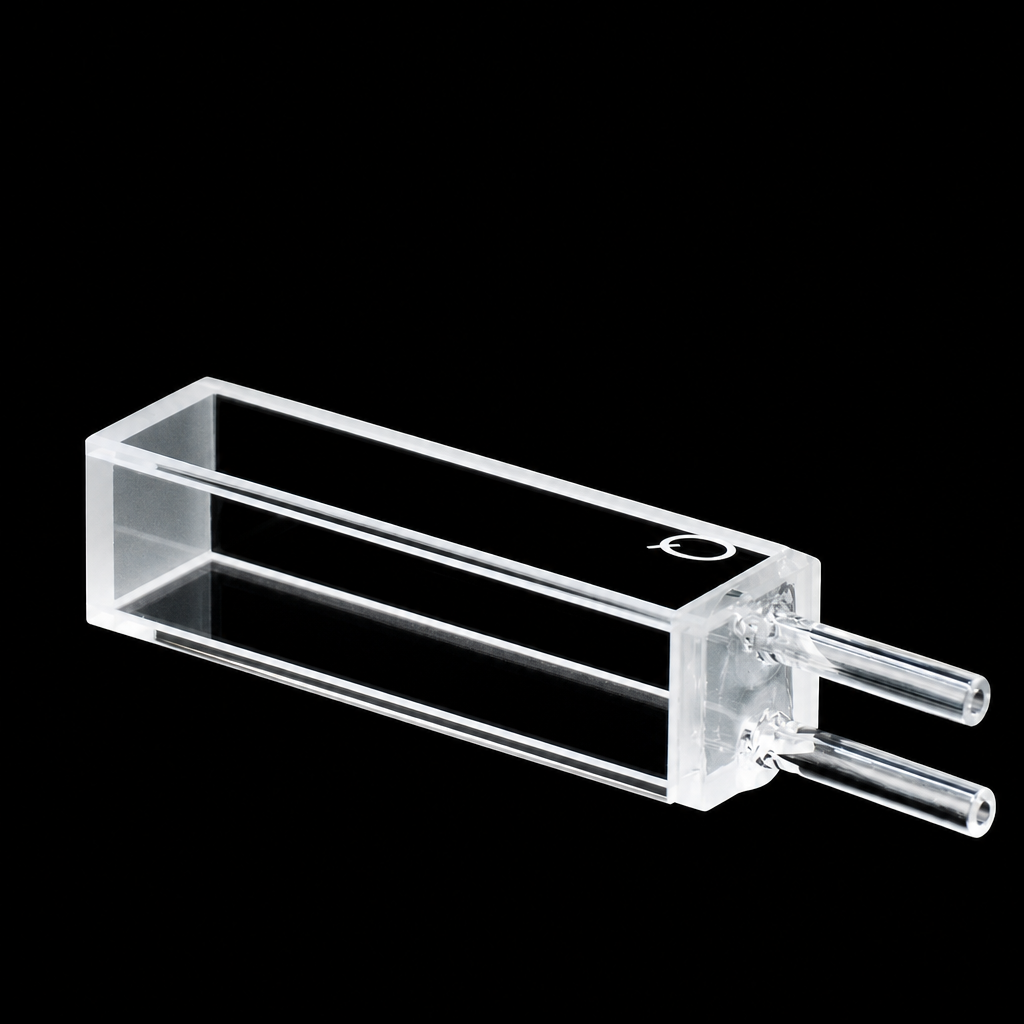

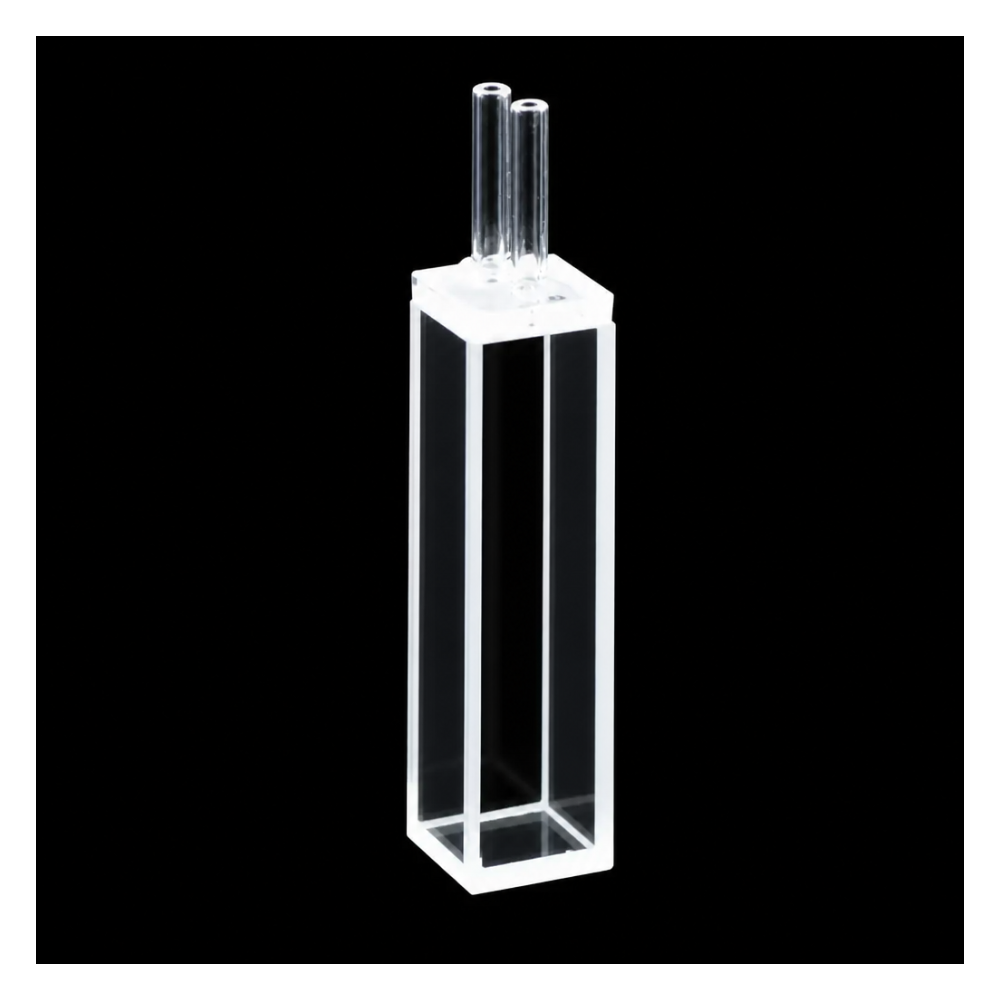

MQQFL019 is a JGS1 quartz flow cell for fluorescence spectroscopy with a 10 mm optical path, 3.5 mL nominal capacity and Four-Way Light configuration. Its upright body uses two opposed end tubes with 3 mm OD and 1 mm ID, helping you plan optical access and tubing layout together. Sold as 1 piece.
Description
MQQFL019 is a JGS1 quartz flow cell for fluorescence spectroscopy with a 10 mm optical path, 3.5 mL nominal capacity and Four-Way Light configuration. The upright 12.5 × 12.5 × 45 mm body uses two opposed end tubes, so you can plan side optical access together with an axial fluid connection layout. This format suits fluorescence setups that need optical access on more than one side while keeping the liquid path aligned through the body.
- Path Length
- 10 mm
- Sample Volume (Nominal)
- 3.5 mL
- Opening Configuration
- Two Opposed End Tubes
Selection Specifications
| Product Kind | Flow Cell |
|---|---|
| Cell Type | Flow Cell |
| Measurement Mode | Fluorescence Spectroscopy |
| Path Length | 10 mm |
| Light Transmission Configuration | Four-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 3.5 mL |
| External Dimensions | 12.5 × 12.5 × 45 mm |
| Body Height | 45 mm |
| Base Dimensions | 12.5 × 12.5 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Port Count | 2 |
| Tube Outer Diameter (OD) | 3 mm |
| Tube Inner Diameter (ID) | 1 mm |
| Opening Configuration | Two Opposed End Tubes |
| Port Layout | Axial end A, shown at the top; Opposite axial end B, shown at the bottom |
| Pack Quantity | 1 Piece |
| Package Contents | 1 × Quartz Flow Cell |
Choose this option
Choose this cell when your fluorescence arrangement needs four-side optical access and an upright twin-tube layout rather than top-entry tubing. The 10 mm path and 3.5 mL nominal chamber suit methods that use a larger flow-cell volume than micro-format designs, while the opposed end tubes help you route the liquid line along the cell axis.
What makes this option different
- Four-Way Light configuration provides optical access on four sides for suitable fluorescence geometries.
- Two opposed end tubes place the fluid connections at opposite axial ends of the body.
- 3 mm OD / 1 mm ID tubes help you check tubing connection size and flow-path planning.
- 3.5 mL nominal capacity with 10 mm path combines a standard path length with a larger chamber than low-volume flow cells.
Using this cell
Support the quartz body during installation and connect the tubing without using the tubes as levers or lifting points. Fill and flush the cell gradually so the optical region is fully wetted and free of visible bubbles before running a blank or baseline.
The two tubes are the fluid access points at opposite ends of the cell body. Inlet and outlet roles are not fixed here, so you can assign flow direction to suit your system layout. No pressure rating is specified for this item.
First-use check
- Inspect the optical faces, body and tube ends before assembly.
- Check that the mounted cell presents the intended optical sides to your excitation and detection geometry.
- Prime the cell, remove visible bubbles and repeat the blank after the fluid path is stable.
Fit and optical alignment
View the English selection reference.

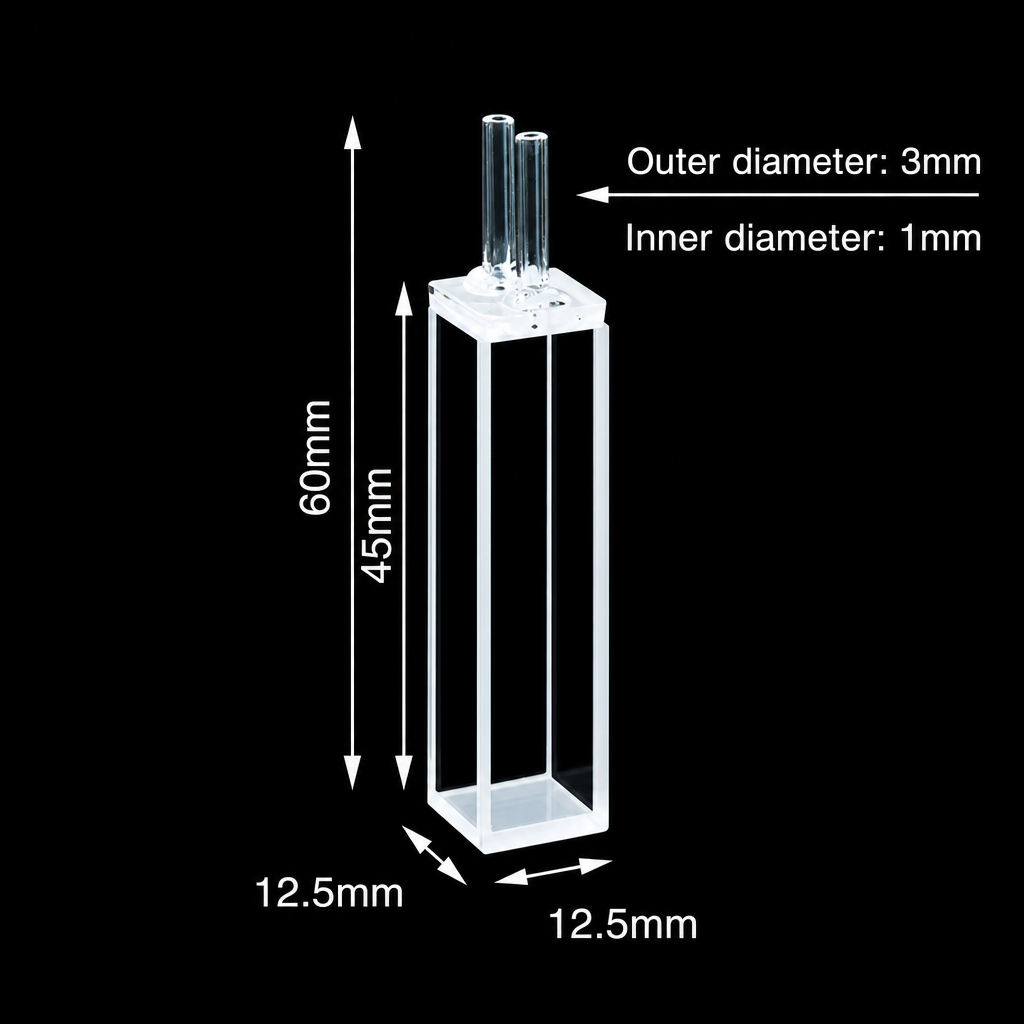

The optical body measures 12.5 × 12.5 × 45 mm. A 60 mm overall height is shown for the version with the fixed tubes, so holder clearance should be checked separately from the bare body size.
Z Height is not listed for this model. If your instrument has a fixed beam-center requirement, check that from your holder or alignment drawing rather than from the outer dimensions alone. Also leave room above and below the mounted cell for tubing exit and bend radius.

Solvents and cleaning
This cell uses a fused-integrated construction as described for the product, but no numeric fabrication grade is established for this SKU. For general fabrication background, see MQ Cuvette Fabrication Glossary.
Choose your sample and cleaning routine for the complete wetted assembly, especially if your method uses organic solvents, aggressive chemicals, elevated temperature or long contact time. Keep hydrofluoric acid away from quartz, avoid hot strong alkalis and clean the optical faces gently with suitable non-abrasive lab tissue.
Included with this option
1 quartz flow cell. The listed price is for one piece.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz production for changes to path length, nominal volume, body dimensions, optical access, tube layout and related tolerances. Send a labelled drawing or fixture information if you need a different envelope or connection arrangement.
Send a product-selection enquiry with SKU MQQFL019, your optical layout, tubing requirements, sample conditions and quantity.
Design notes for this configuration: Four-Face Quartz Flow Cell: Reviewing a Two-Top-Tube Layout (MQQFL019)
Additional information
| Weight | 70 g |
|---|
