(MQQMC045) Quartz Micro Cuvette, 30 mm path, 3.6 mL nominal capacity, 3.5 mm Slit

Weight50 g
SKU: MQQMC045

$240.00

In Stock

This quartz micro cuvette combines a 30 mm optical path with a 3.6 mL nominal capacity and a narrow 3.5 mm slit in an open-top body. Its Two-Way Light layout suits UV/Vis transmission work where you need a longer path in a compact rectangular format. Sold as 1 piece.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQMC045 is a JGS1 quartz micro cuvette for UV/Vis measurements with a 30 mm optical path in a compact rectangular body. Its Two-Way Light layout gives a straightforward transmission geometry, while the 3.5 mm slit and 3.6 mL nominal capacity define a relatively narrow sample region compared with the body length. This listed option is sold as 1 piece.

Path Length
30 mm
Sample Volume (Nominal)
3.6 mL
Opening Configuration
Open Top

Selection Specifications

Product KindCuvette
Cell TypeMicro Cuvette
Measurement ModeUV/Vis Spectroscopy
Path Length30 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)3.6 mL
External Dimensions32.5 × 12.5 × 45 mm
Cell Body Dimensions32.5 × 12.5 × 45 mm
External Dimensions ScopeBody Only
Body Height45 mm
Base Dimensions32.5 × 12.5 mm
MaterialQuartz
Material GradeJGS1
Fabrication MethodStandard 80
Opening ConfigurationOpen Top
Pack Quantity1 Piece
Package Contents1 × Quartz Micro Cuvette

Choose this option

Choose this cell when your method needs a 30 mm transmission path but your holder or sample routine still favors a compact open-top cuvette. The long path, narrow slit and direct top access are the practical selection points here: they affect how you fill the cell, inspect the sample region and match the beam to the intended liquid-filled area.

What makes this option different

  • 30 mm optical path for UV/Vis methods that need a longer transmission distance through the sample.
  • 3.5 mm slit for a narrow sample region that should be checked against beam footprint and filling access.
  • Open-top, Two-Way Light body for direct filling and straightforward transmission alignment through two optical faces.
  • 3.6 mL nominal capacity in a 32.5 × 12.5 × 45 mm body-only format.

Structure and dimensions

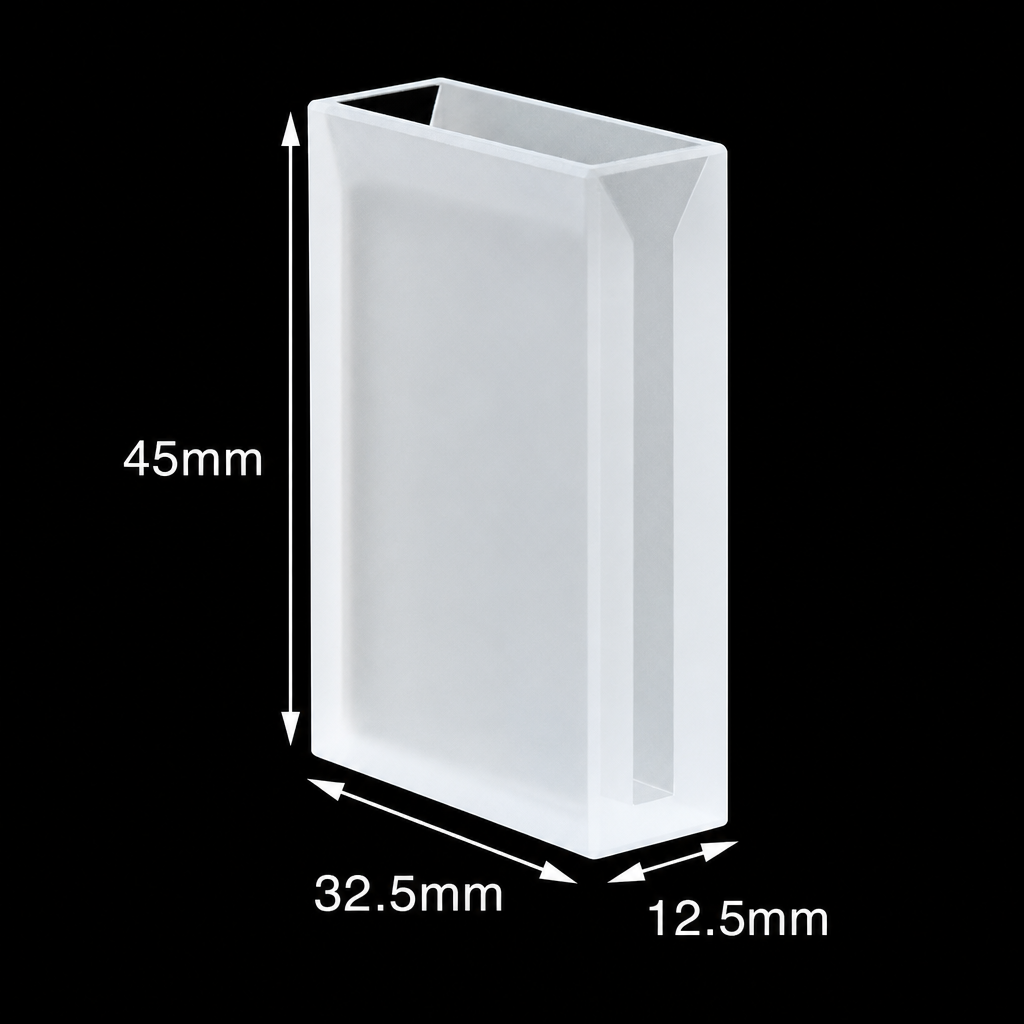

Product dimensions for checking holder clearance and sample access.
Product dimensions for checking holder clearance and sample access.Open image ↗

Using this cell

Fill the cell from the open top and keep the same orientation for blank and sample throughout the method. Before measurement, inspect the slit region for bubbles, droplets or residue, because the narrow opening area can make local filling defects easier to miss.

The 3.6 mL figure is the nominal capacity, not a minimum working volume. If your setup uses a small beam or a defined beam height, make sure the liquid level fully covers the illuminated region used in your instrument.

First-use check

  1. Inspect the optical faces and top opening for chips, residue or visible contamination.
  2. Test fit the cell in the holder and verify that the beam passes through the intended optical faces.
  3. Run a blank in the same orientation you will use for the sample.

Fit and optical alignment

View the English selection reference.

The stated body dimensions are 32.5 × 12.5 × 45 mm, and these dimensions apply to the body only. They are useful for holder clearance and seating checks, but they do not establish the complete installed envelope if your setup adds a separate cover or holder hardware.

Z Height is not specified for this cell. If your holder or instrument requires a defined beam-center height, please send the holder details or a drawing before ordering.

English selection reference
Selection reference ↗

Solvents and cleaning

This cell uses Standard 80 adhesive-bonded quartz construction. It is best suited to room-temperature water-based samples and buffers.

Chemical limits for this exact SKU are not established in more detail here, so avoid treating it as a general solvent-resistant option. Do not use hydrofluoric acid on quartz, avoid hot strong alkalis and abrasive cleaning materials, and clean the optical faces gently with a mild non-abrasive routine.

Included with this option

1 Quartz Micro Cuvette.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects for changes to path length, capacity, body dimensions, optical windows, Z Height and related geometry. Send your drawing or holder details, the critical dimensions and tolerances, sample conditions and required quantity.
