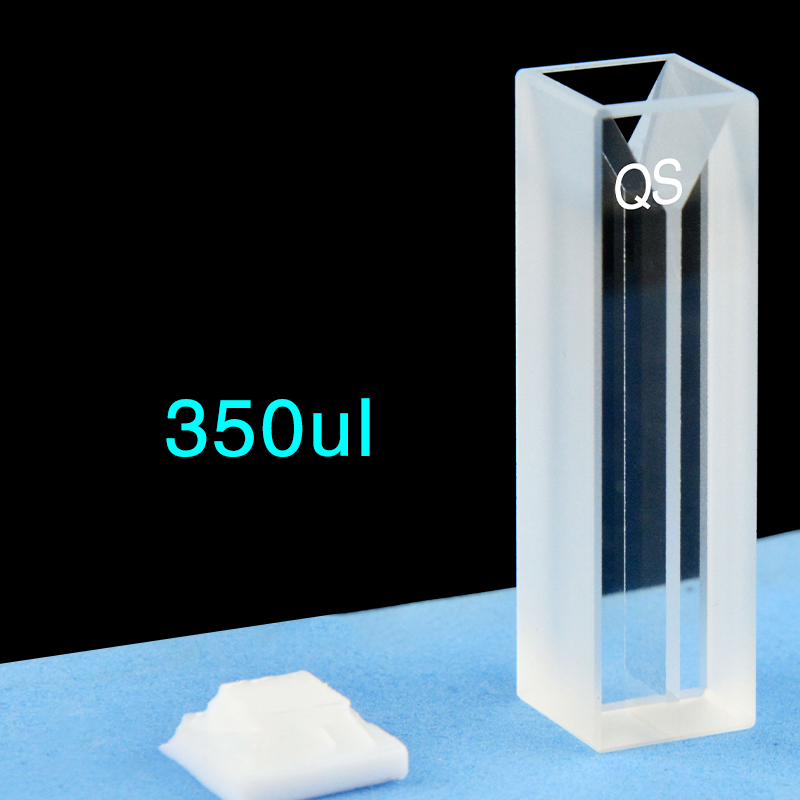

(C102CE12) Quartz Micro Cuvette, 10 mm Path, 350 µL

Weight	30 g

SKU: C102CE12

Original price was: $179.00.Current price is: $162.00.

In Stock

JGS1 quartz micro cuvette C102CE12 combines a 10 mm optical path with a 350 µL nominal capacity in a compact body for UV/Vis work. Its 1 mm sample region helps you choose it for narrow-beam measurement setups, and the cuvette is supplied as 1 piece with a PTFE closure.

In Stock

SKU: C102CE12 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CE12 is a JGS1 quartz micro cuvette for UV/Vis measurements when you need a 10 mm path in a smaller-volume format. It combines a 350 µL nominal capacity with a 1 mm sample region in a compact uncapped 12.5 × 12.5 × 45 mm body, so it suits methods that need a narrow reading region rather than a larger general-purpose cell. A PTFE closure is included, and the stated wavelength range for this option is 200–2500 nm.

Path Length: 10 mm
Sample Volume (Nominal): 350 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Material	PTFE
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	1 mm

Choose this option

Choose C102CE12 when your method is built around a 10 mm transmission path but the sample presentation needs a narrow 1 mm region and a micro-format cell body. The 350 µL nominal capacity makes this a practical option for small-volume UV/Vis work, while the top closure helps with routine filling and handling without changing the basic straight-through optical layout.

What makes this option different

10 mm optical path in a micro cuvette format for UV/Vis transmission measurements.
350 µL nominal capacity paired with a narrow 1 mm sample region.
Two-Way Light layout for a straight optical path through the cell.
Compact 12.5 × 12.5 × 45 mm uncapped body for holder-fit checks.
JGS1 quartz body with a stated 200–2500 nm wavelength range.
Included PTFE closure for routine sample loading and covering.
Sold as 1 cuvette.

Using this cell

Fill the cell so the intended reading region is covered cleanly and free of bubbles on the optical faces. Because the sample region is narrow, careful filling and consistent orientation are more important than with a wider chamber.

Place the PTFE closure after filling and handle the cuvette by the upper body where possible to keep the optical faces clean. The 350 µL figure is the nominal capacity of the cell, not a minimum working volume.

First-use check

Inspect the cuvette body and optical faces for chips, residue or handling marks.
Test-fit the uncapped body in your holder before preparing a sample.
Run a blank to confirm that the beam passes through the intended sample region.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cuvette body. Use those dimensions to check the holder opening and insertion space, and allow extra clearance above the cell for the installed closure.

Z Height is not specified for this SKU. If your instrument depends on a fixed beam-center height, check the holder and beam position before ordering rather than assuming alignment from the body size alone.

Solvents and cleaning

This option is listed under Molded 83, with supplier joining described as optical contact. For selection, this type is generally used for methods that may involve organic solvents or temperature-controlled work, but the chemical limits for this exact SKU are not established here.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and choose a cleaning routine that suits both the quartz body and the PTFE closure used with the sample.

Included with this option

One C102CE12 JGS1 quartz micro cuvette with an included PTFE closure.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz versions for changes to dimensions, optical path length, sample volume, optical windows, Z Height, closures or fabrication requirements. If you need a different fit, send a labelled drawing or sketch together with holder details, wavelength range and sample conditions. Discuss your requirements and reference C102CE12.
