(C102SS40) Quartz Micro Cuvette, 10 mm Path, 350 µL

Weight	30 g

SKU: C102SS40

Original price was: $86.00.Current price is: $78.00.

In Stock

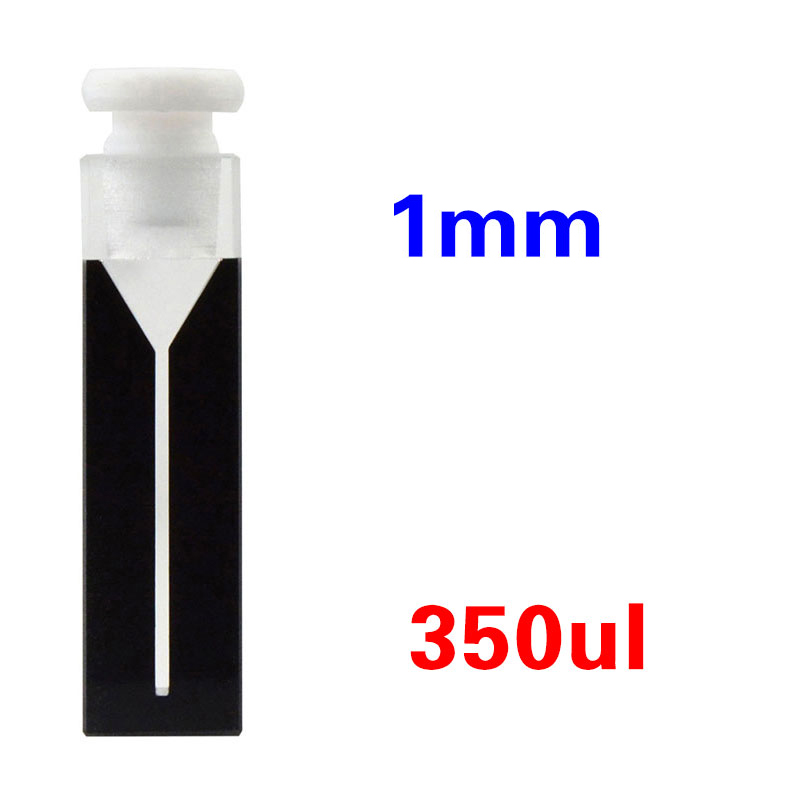

C102SS40 is a JGS1 quartz micro cuvette for UV/Vis work with a 10 mm optical path, a 1 mm sample-region slit and 350 µL nominal capacity. This Two-Way Light black-wall version includes a closure and is sold as 1 cuvette per price unit.

In Stock

SKU: C102SS40 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SS40 is a JGS1 quartz micro cuvette for UV/Vis measurements that combines a 10 mm optical path with a very narrow 1 mm sample region. This black-wall, stoppered version also has a compact 350 µL nominal capacity, making it the most restricted sample-region option among these listed slit variants. It is a suitable choice when your method or holder is built around this specific narrow-slit microcell format.

Path Length: 10 mm
Sample Volume (Nominal): 350 µL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	1 mm
Sample Volume (Nominal)	350 µL
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Detection Channel Width	1 mm

Choose this option

Choose C102SS40 when you need the listed combination of 10 mm path length, 1 mm sample-region slit, black-wall body style and stoppered handling. The narrow slit is the key distinction here: it affects how your beam passes through the filled sample region, so this option is best selected against your actual beam footprint and holder geometry rather than by path length alone.

What makes this option different

10 mm optical path for UV/Vis measurement.
1 mm sample-region slit for this exact narrow-slit format.
350 µL nominal capacity in a compact micro cuvette body.
Black-wall Two-Way Light version with closure included.

Using this cell

Fill the cell so the beam passes through fully covered liquid in the 1 mm sample region, and check carefully for bubbles before reading. Keep the same orientation for blank and sample measurements, especially when working with a narrow slit format where beam placement matters.

Seat the closure gently after filling. The listed 350 µL value is the nominal capacity, not a minimum working volume, so low-fill applications should be checked in the actual holder and optical setup you use.

First-use check

Inspect the optical faces and slit area for dust, dried residue or edge damage.
Place the cuvette in your holder and confirm stable seating and beam position.
Run a blank in the same orientation you will use for samples.

Fit and optical alignment

This SKU is identified by a 1 mm sample-region slit, but a full set of external dimensions and the Z Height are not established here. Before ordering, check that your holder clearance, beam height and beam footprint suit this micro cuvette geometry.

If your instrument depends on a defined beam-center height for microcells, confirm that separately with your fixture or drawing review rather than assuming a standard value.

Solvents and cleaning

Chemical limits for this exact assembly are not established here, so check that your sample and cleaning liquids are suitable before routine use. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

For general construction background, see cuvette fabrication methods.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different slit width, holder fit or another JGS1 quartz microcell configuration, discuss your requirements and quote part number C102SS40.
