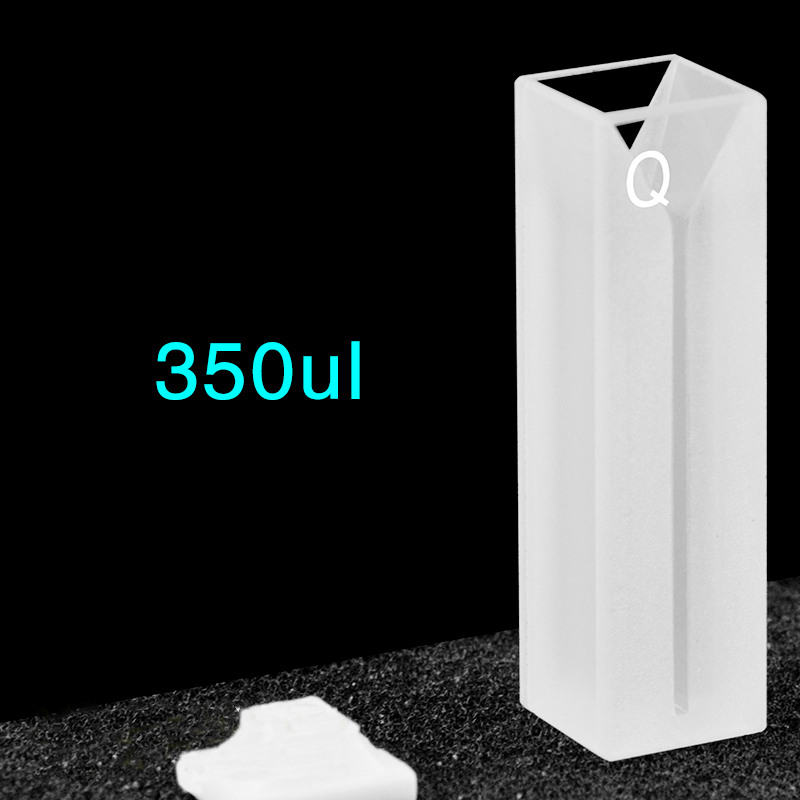

(C102CR14) Quartz Micro Cuvette, 10 mm Path, 350 µL

Weight	30 g

SKU: C102CR14

Original price was: $72.00.Current price is: $65.00.

In Stock

C102CR14 is a quartz micro cuvette for UV/Vis work with a 10 mm optical path, a 350 µL nominal capacity and a narrow 1 mm sample region. Its open-top body supports direct filling, and the sale unit is 1 cuvette with a lid included.

In Stock

SKU: C102CR14 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CR14 is a quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, Two-Way Light layout and 350 µL nominal capacity. The 1 mm sample region makes this option useful when you need a narrow measurement zone in a compact cell body, while the open top keeps filling and inspection straightforward. It is sold as 1 cuvette per price unit, with a lid included.

Path Length: 10 mm
Sample Volume (Nominal): 350 µL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top (Cell Body)
Detection Channel Width	1 mm

Choose this option

Choose C102CR14 when your method uses a 10 mm path but you want a relatively narrow sample region rather than a wider micro-cuvette channel. This combination helps when you are planning beam coverage, fill handling and holder fit together in a compact quartz body. The stated body size of 12.5 × 12.5 × 45 mm applies to the uncapped cell body, so you can review the holder footprint separately from top clearance for the lid.

What makes this option different

1 mm sample region for a narrow illuminated zone at the measurement area.
350 µL nominal capacity in a compact micro cuvette format.
10 mm optical path with Two-Way Light for straight-through UV/Vis measurement.
Open-top quartz body with lid included for direct filling and covered handling between steps.

Using this cell

Fill the cell from the top and make sure the liquid fully covers the beam path during measurement. Because this is a small-volume format with a narrow sample region, careful filling and bubble control matter in routine use.

Use the same orientation for blank and sample runs, and keep the exterior optical faces clean and dry before placing the cell in the holder. The 350 µL figure is the nominal capacity of the cell, not a minimum working volume.

First-use check

Inspect the optical faces for dust or handling marks, rinse with a cleaning liquid suitable for your method, and test the body fit in your holder. Then make a trial fill to confirm that the beam passes through a fully covered, bubble-free sample region.

Fit and optical alignment

The uncapped body measures 12.5 × 12.5 × 45 mm. Use those dimensions to check holder seating and side clearance, but allow extra space above the cell for the supplied lid because the installed height is not stated here.

Z Height is not specified for this SKU. If your instrument has a fixed beam center or a holder with limited adjustment, check the beam position in relation to the sample region before ordering.

Solvents and cleaning

This cell uses a quartz body and a supplier-stated powder-fused construction term, but the chemical limits for this exact assembly are not specified here. If your samples or cleaning routine involve aggressive chemicals, review compatibility for the complete cell and lid arrangement before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. For routine care, rinse promptly after use and wipe the outer optical faces gently with non-abrasive optical tissue. For general background on MQ cuvette constructions, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

Included with this option

Supplied as 1 quartz micro cuvette with a lid.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review related JGS1 quartz custom requirements involving dimensions, path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch, your holder or instrument information, the critical dimensions and tolerances, and your sample conditions. Discuss your requirements and reference C102CR14.
