(MQQSC008) Quartz Screw-Top Cuvette, 3 mm path, Large Screw Opening, Pack of 2

Weight200 g
SKU: MQQSC008

$598.00

In Stock

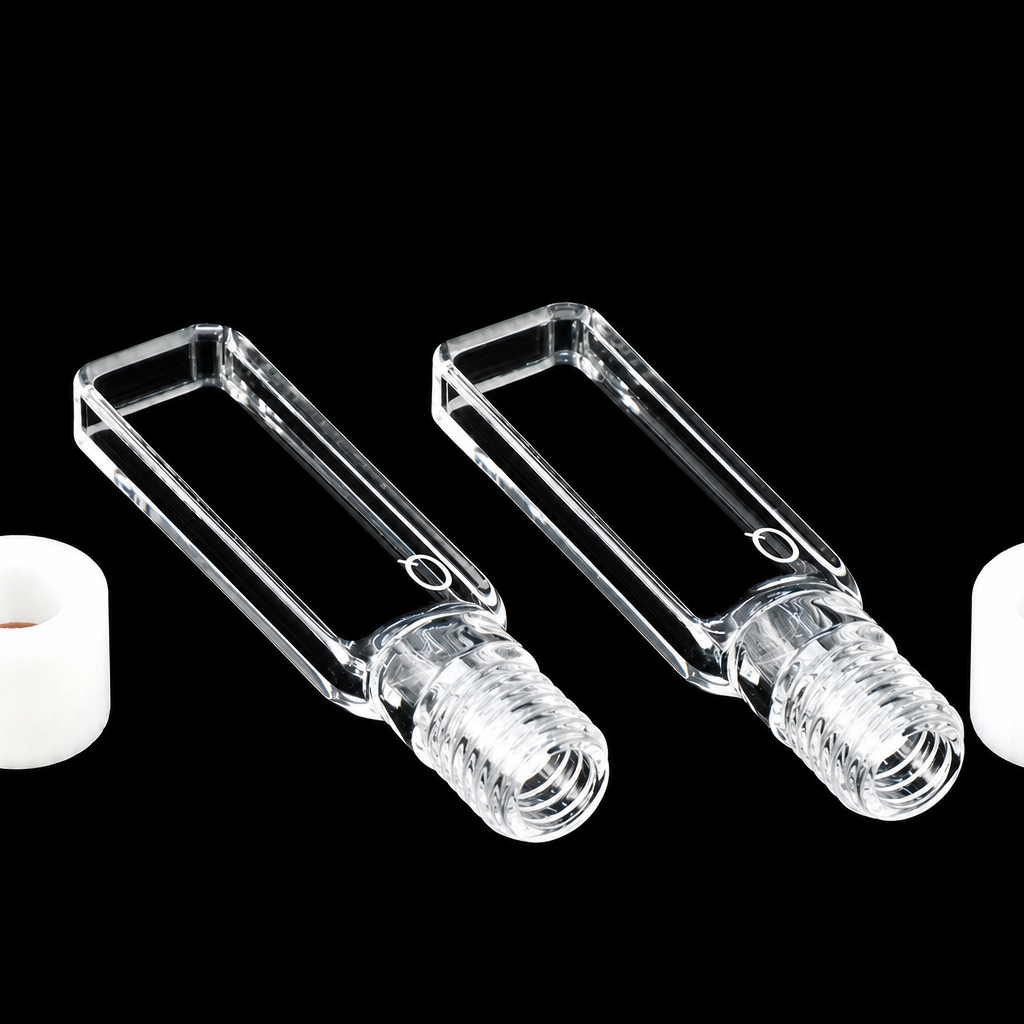

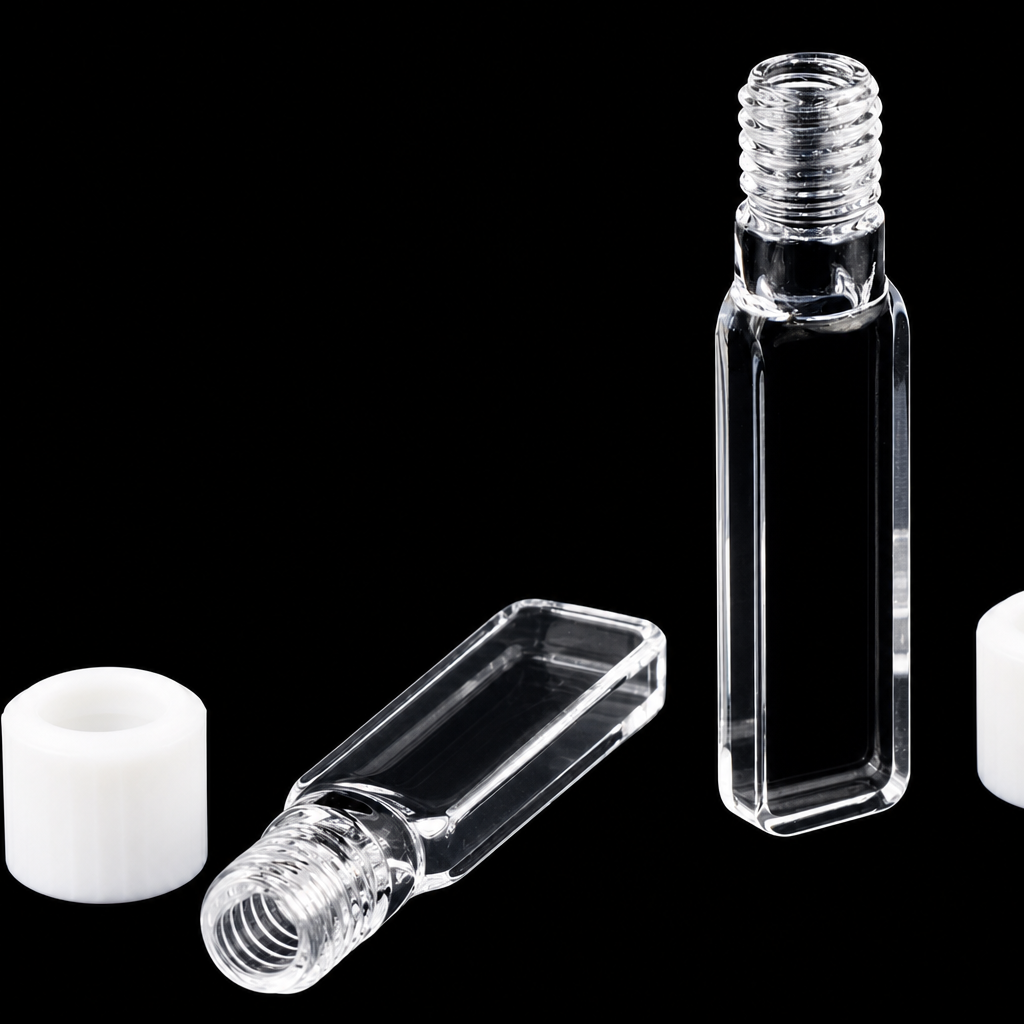

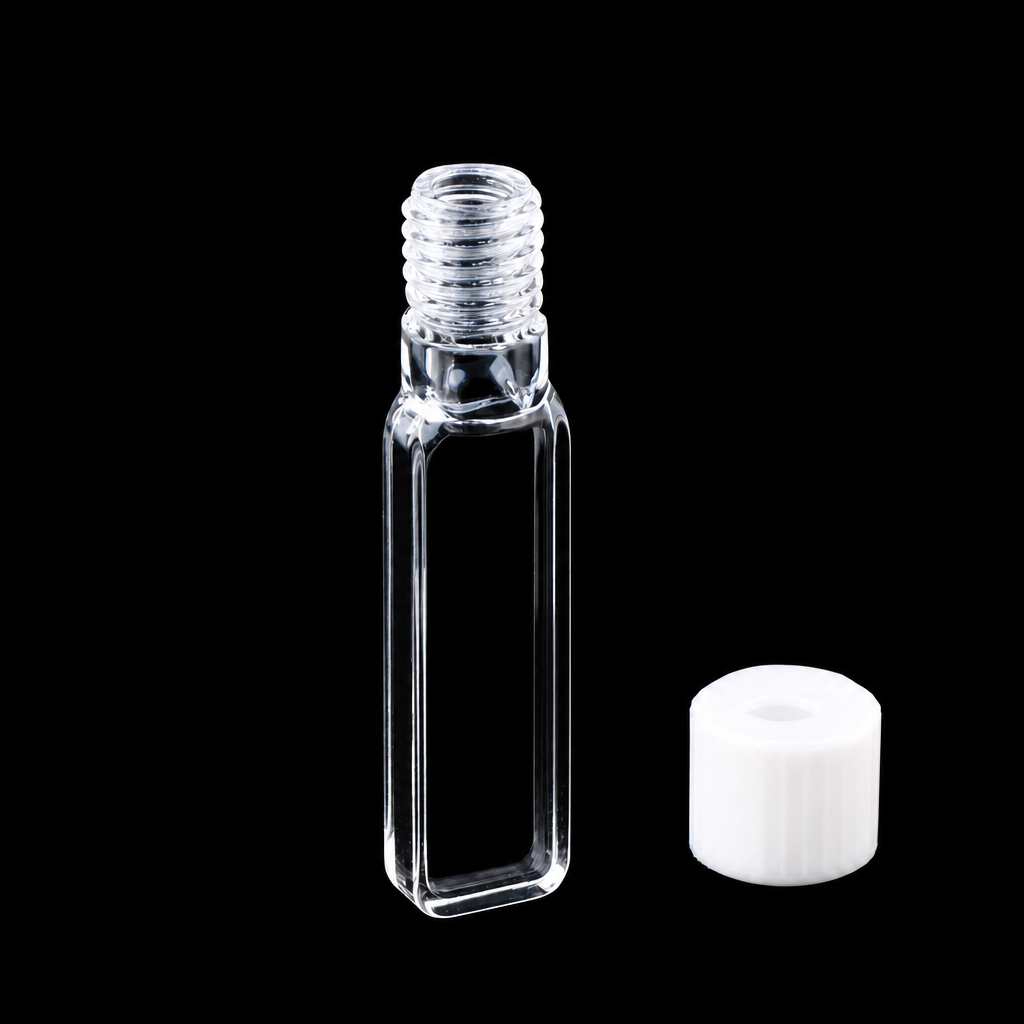

Quartz Screw-Top Cuvette MQQSC008 combines a 3 mm optical path with Four-Way Light geometry and a large M10 screw opening. Its 1050 µL nominal capacity and included screw closures suit UV/Vis work that needs top filling and optical access from more than two sides. The listed sale unit is a pack of 2.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

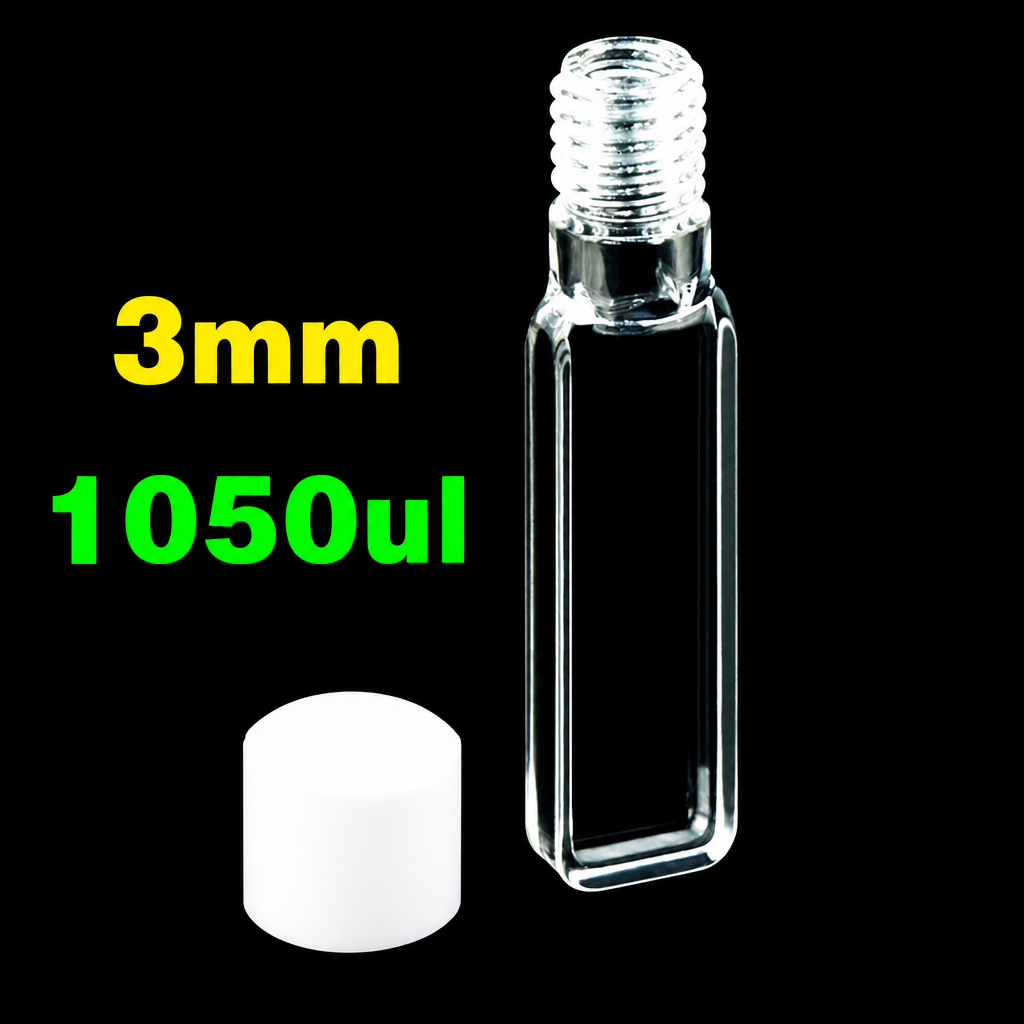

MQQSC008 is a JGS1 quartz Screw-Top Cuvette for UV/Vis spectroscopy with a 3 mm optical path, Four-Way Light configuration and a large M10 screw opening. It is a practical choice when you want a short path length, covered top access and optical access around more than two faces of the same cell. The nominal capacity is 1050 µL, and this listing is for a pack of 2 with accompanying closures.

Path Length
3 mm
Sample Volume (Nominal)
1.05 mL
Closure Type
Screw Cap

Selection Specifications

Product KindCuvette
Cell TypeScrew-Top Cuvette
Measurement ModeUV/Vis Spectroscopy
Path Length3 mm
Light Transmission ConfigurationFour-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)1.05 mL
Cell Body Dimensions12.5 × 5.5 × 38 mm
Overall Height without Closure54 mm
Body Height38 mm
Overall Height with Closure58 mm
Base Dimensions12.5 × 5.5 mm
MaterialQuartz
Material GradeJGS1
Closure TypeScrew Cap
Closure IncludedYes
Fabrication MethodMolded 83
Closure ThreadM10
Sales Unitpack of 2
Package Contents2 × Quartz Screw-Top Cuvette; Accompanying closures

Choose this option

Choose MQQSC008 when your method uses a 3 mm path but your setup also benefits from side optical access. The large screw opening makes filling and emptying straightforward, while the supplied closure lets you cover the sample during routine handling. Four-Way Light is the key structural difference here: it gives optical access on multiple faces without changing to a different cell style.

What makes this option different

  • 3 mm optical path for methods built around a shorter path length.
  • Four-Way Light configuration for optical access on more than two sides of the cell body.
  • Large M10 screw opening for direct top filling, with closures included.
  • Pack of 2 for the listed sales unit.

Using this cell

Fill the cell through the screw opening, then fit the closure for routine covered handling between preparation and measurement. Keep the same orientation for blank and sample runs so the measurement is taken through the intended faces each time.

The 1050 µL figure is a nominal capacity, not a minimum working volume. Fill to a level that fully covers the illuminated region in your own holder, and remove bubbles before measurement. Wipe the outer optical faces clean and dry before placing the cell in the instrument.

First-use check

  1. Inspect the optical faces, screw opening and closures for shipping damage or residue.
  2. Test holder fit and verify beam alignment with a suitable blank.
  3. After filling, confirm that the illuminated region is covered and free of bubbles.

Fit and optical alignment

View the English selection reference. Also available in the product gallery. Group photographs illustrate options in the series.

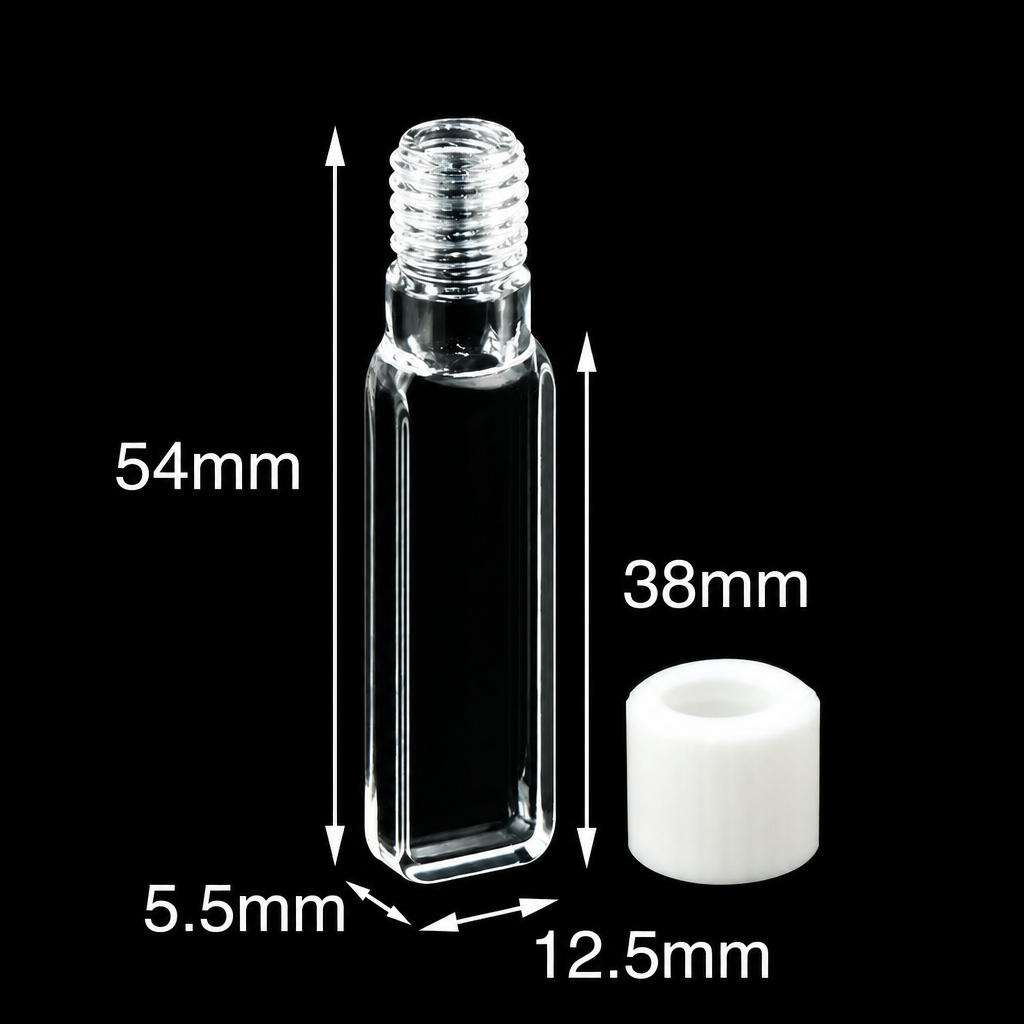

The base footprint is 12.5 × 5.5 mm, the body height is 38 mm, and the overall height with cap is 58 mm. Check holder width, insertion depth and top clearance before ordering, especially where space around the cell position is limited.

Z Height is not established for this SKU, so beam-height fit should be checked against your instrument or holder. The M10 thread identifies the closure connection size at the neck; it should not be treated as a pressure-rated fitting specification.

English selection reference
Selection reference ↗

Solvents and cleaning

This cell uses Molded 83 fabrication. This type is commonly selected for organic-solvent methods and applications that may involve heat, but the exact chemical limits for this assembled cell and closure combination are not established here.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaning materials. Clean the optical faces gently with non-abrasive optical tissue or another suitable soft material.

Included with this option

2 Quartz Screw-Top Cuvettes with accompanying closures. The listed price is for the pack of 2.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving optical path length, cell dimensions, nominal volume, openings, closures and related geometry. If your application depends on a specific beam height, holder envelope or connection arrangement, send a drawing or labelled sketch with the critical dimensions and tolerances.

Send a product-selection enquiry with SKU MQQSC008, your holder or instrument details, sample conditions, required quantity and delivery destination.
