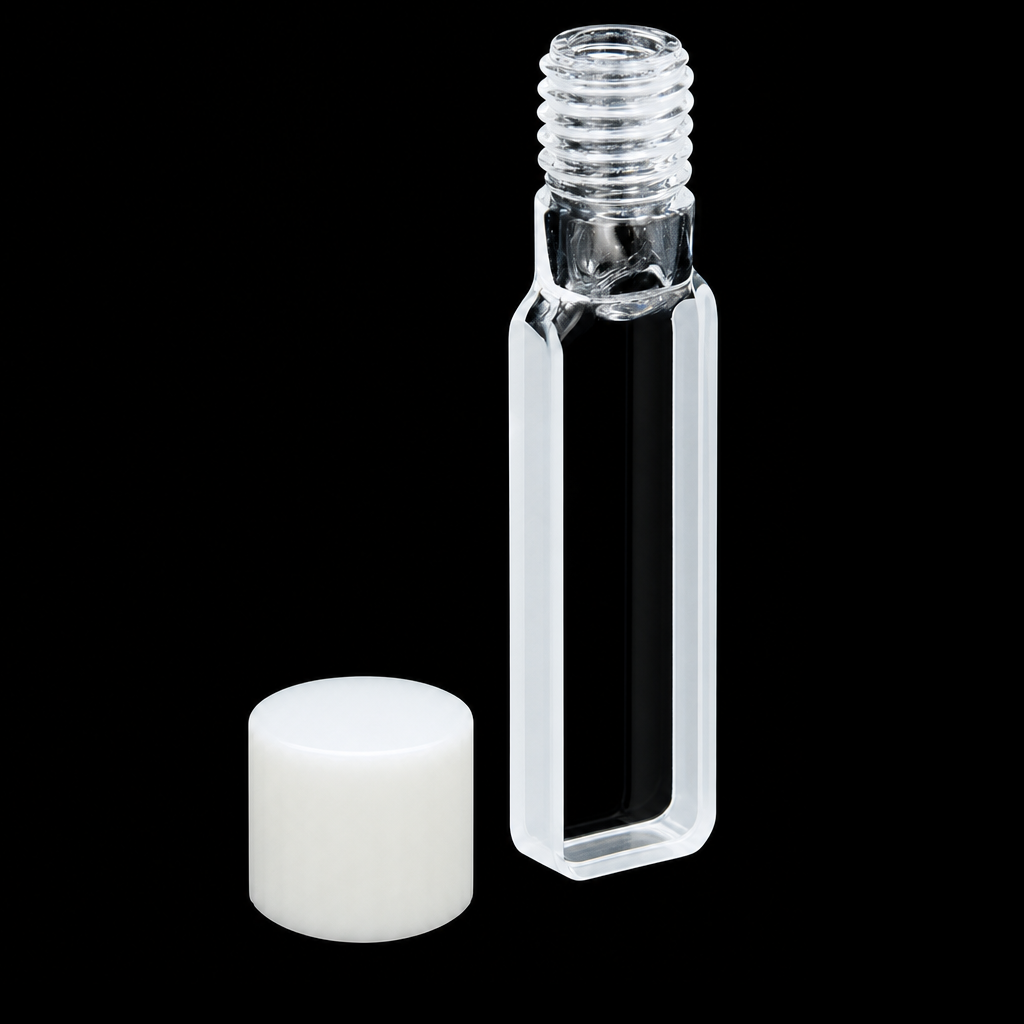

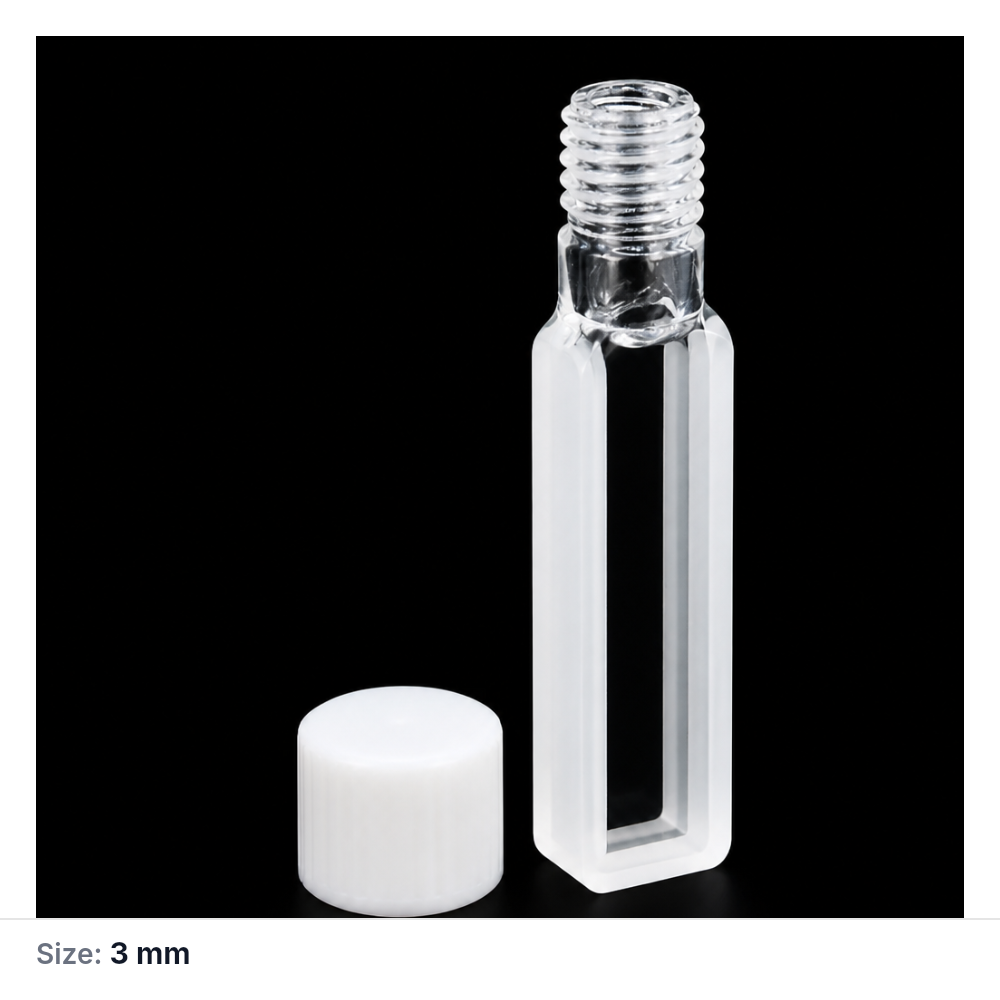

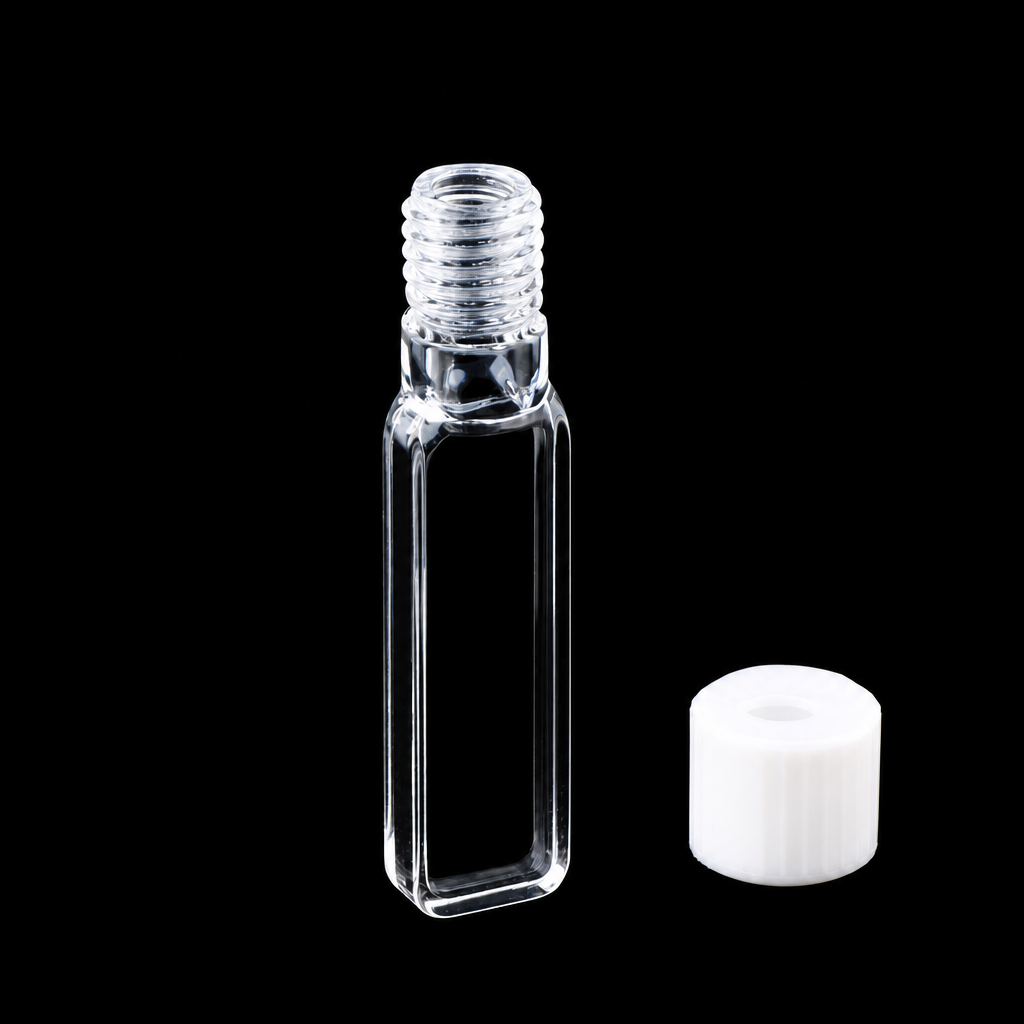

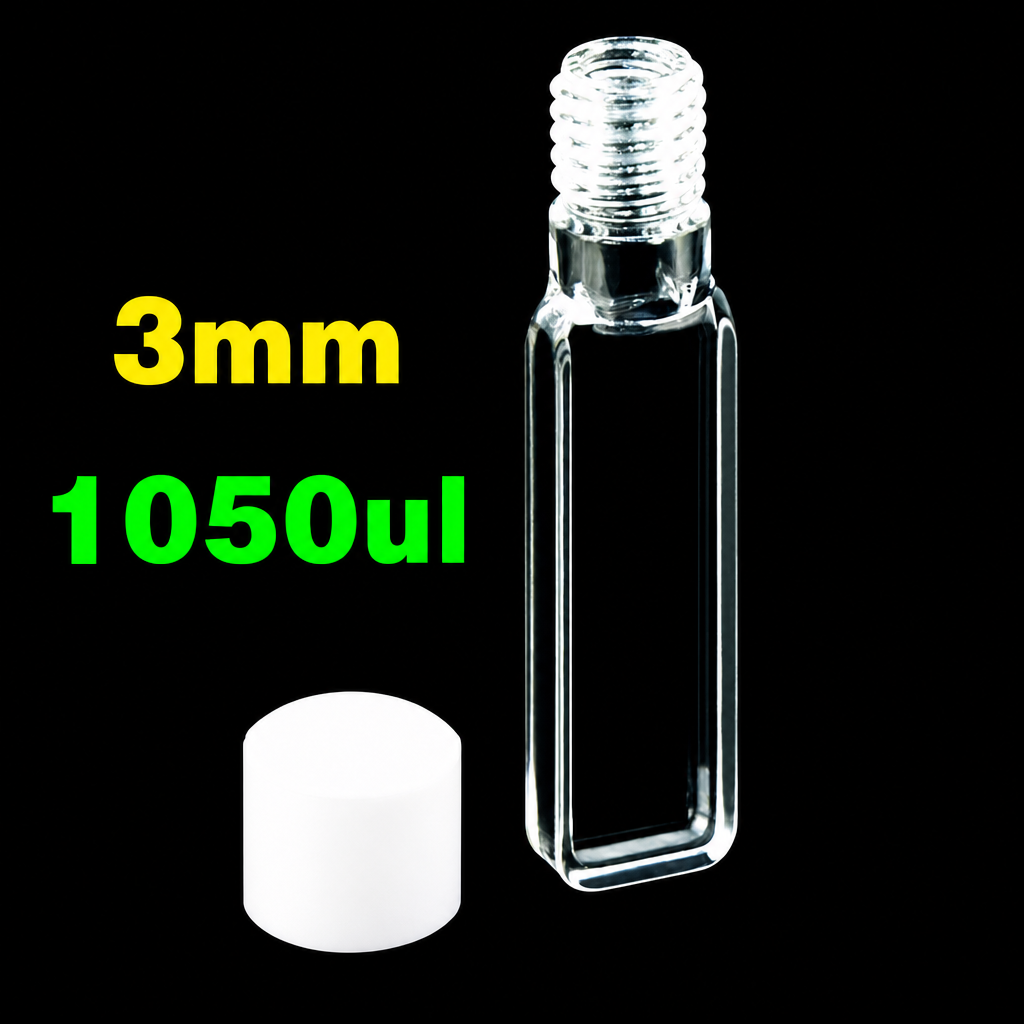

(MQQSC009) Quartz Screw-Top Cuvette, 3 mm path, Large Screw Opening
$215.00
Quartz Screw-Top Cuvette with 3 mm path, Large Screw Opening. For a method requiring a short sample path and a removable screw closure. The listed price is for one cell. Molded 83.
You can order the listed specification directly, or contact us to check availability and dispatch timing. Additional preparation or production time may be needed if this option is temporarily unavailable.
In Stock
Description
MQQSC009 is the Quartz Screw-Top Cuvette option with 3 mm path, Large Screw Opening. Choose the configuration for the actual holder, optical arrangement and sample-handling method.
- Path Length
- 3 mm
- Cell Type
- Screw-Top Cuvette
- Closure Type
- Screw Cap
Selection Specifications
| Cell Type | Screw-Top Cuvette |
|---|---|
| Material | Quartz |
| Path Length | 3 mm |
| Light Transmission Configuration | Two-Way Light |
| Closure Type | Screw Cap |
| Closure Included | Yes |
| Measurement Mode | UV/Vis Spectroscopy |
| Fabrication Method | Molded 83 |
| Pack Quantity | 1 Piece |
| Package Contents | 1 × Quartz Screw-Top Cuvette; Accompanying closure |
Choose this option
- For a method requiring a short sample path and a removable screw closure.
- Compare the path, window configuration and sample access with your current cell before ordering.
What makes this option different
- 3 mm path: a shorter sample path can help keep absorbance within the usable range of your method; use this path in calculations.
- Two-Way Light: match the required optical direction and detection access.
- Molded 83: choose the fabrication grade and required acceptance criteria separately from pack quantity.
Using this cell
Match the optical path and transmitting direction to the measurement method. Keep seating and orientation consistent for blank and sample.
Fill so the liquid covers the illuminated region. Remove trapped bubbles and keep fingerprints or residue off the exterior optical faces.
First-use check
- Inspect the optical faces, sample region and any mating or connecting surfaces before use.
- Check holder fit and optical alignment with an appropriate blank or background.
- Remove bubbles and exterior droplets, then repeat the blank in the same position.
Fit and optical alignment

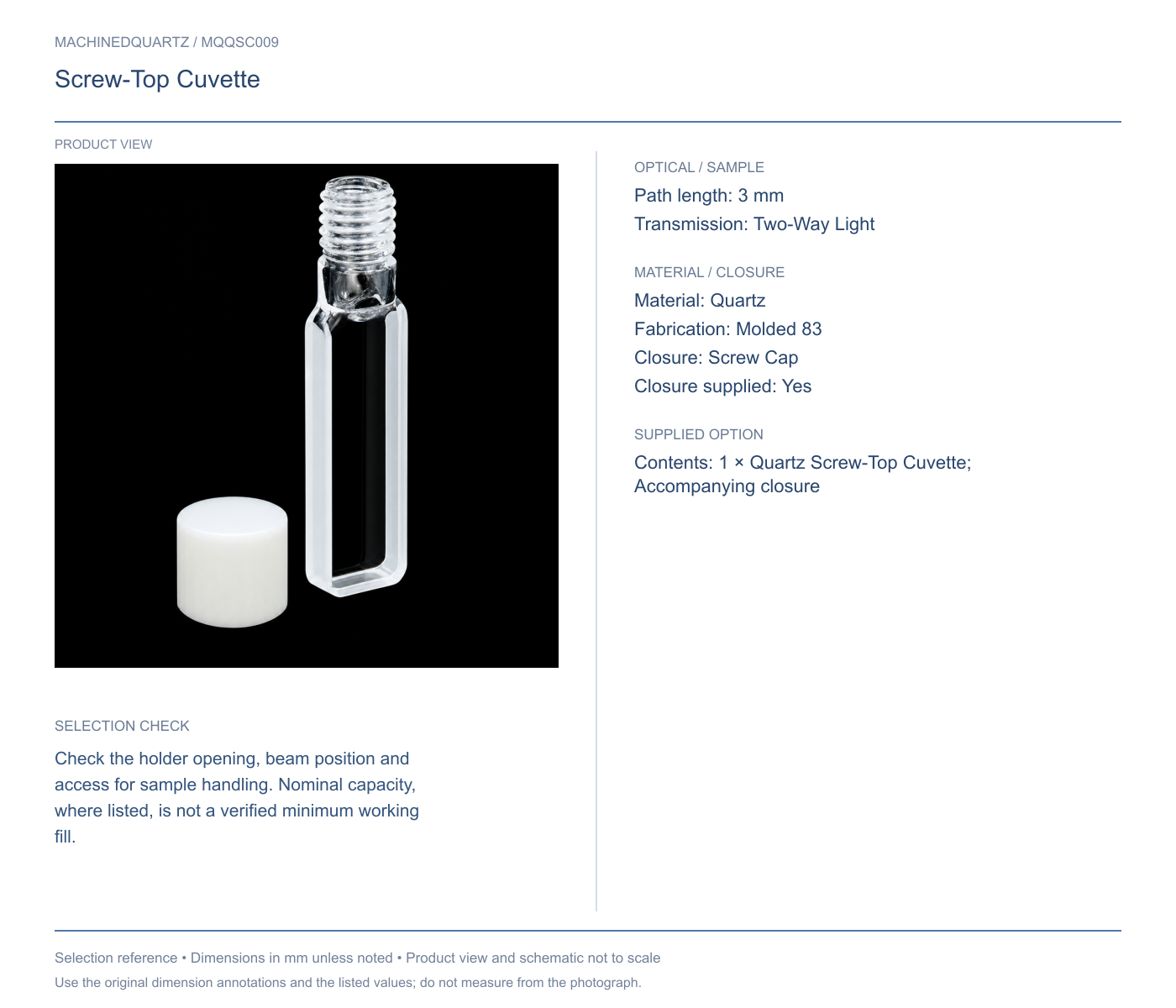

View the English selection reference. Also available in the product gallery.

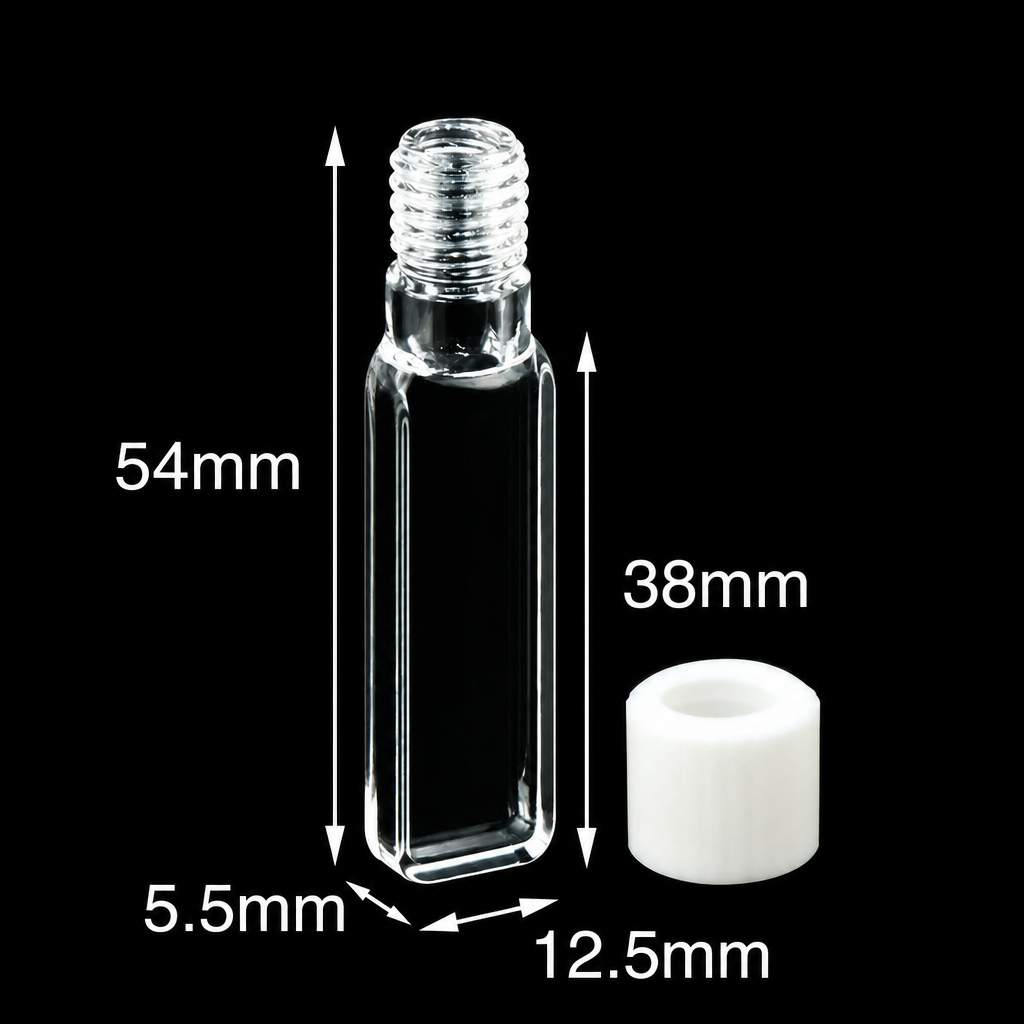

Check the cell envelope, holder depth, beam position and access for filling or connections against your instrument before ordering.
Allow clearance for the neck and for fitting or removing the screw cap. A cap thread identifies a closure connection and does not by itself specify a pressure-rated fluid fitting.
Solvents and cleaning — Molded 83
Molded 83 is an MQ selection option for organic-solvent and heated measurement methods. Choose the sample and cleaning routine for the complete cell, including any closures or fittings. For aggressive liquids, heat or prolonged soaking, send the liquid, concentration, temperature and contact time for a suitability check.
Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaners. Clean exterior optical faces gently with non-abrasive optical tissue.
Included with this option
1 MQQSC009 cell with the accompanying closure. The listed price is for one cell.
Availability and ordering
You can order the listed specification directly, or contact us to check availability and dispatch timing before ordering. If your selected option is temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, please contact us before checkout; preparation time is separate from shipping transit time.
Discuss a custom version
Send the required path, capacity, external envelope, windows or Z Height, closure/interface details and fabrication/tolerance requirements. Custom material is generally JGS1 quartz. Prototype orders are usually 2–4 cells, with feasibility, specification, quantity, price and timing confirmed for the project.
Send a product-selection enquiry with SKU MQQSC009, your drawing or holder details, sample conditions, quantity and delivery destination.
Additional information
| Weight | 100 g |
|---|
