Quartz 10mm Cuvette Particle Size Sample Cell, 3.5ml, Sintered 80, Four-Way Light, PTFE Cap, 1pc/ea, C104CA6

Description

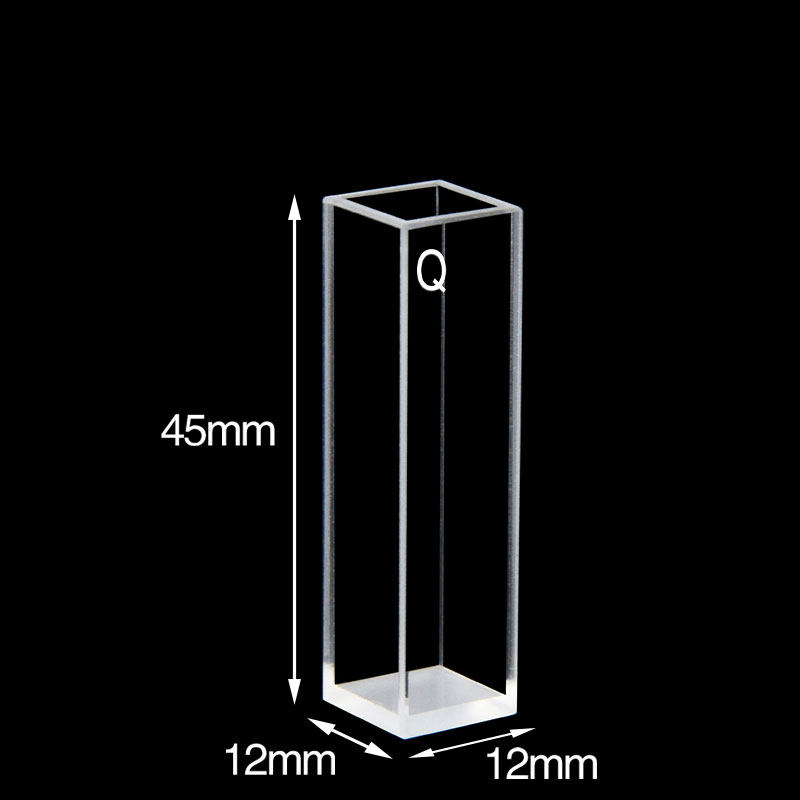

With a compact exterior of 12 × 12 × 45 mm and interior chamber measuring 10 × 10 × 43 mm, the C104CA6 particle size sample cell delivers precise 10 mm optical path measurements in a standard-format quartz cuvette. The Four-Way Light design enables multi-angle particle sizing, while Sintered 80 fabrication ensures >80% transmittance across 200–2500 nm. Includes PTFE cap for sample protection. Supplied as 1pc/ea.

Technical Specifications — Particle Size Sample Cell

Instrument Compatibility

This 10 mm Four-Way Light quartz cuvette is compatible with a wide range of particle size analyzers and DLS instruments, including Malvern Zetasizer series, Brookhaven NanoBrook, Microtrac Nanotrac, Anton Paar Litesizer, Horiba SZ-100, Bettersize NanoPlus, and other instruments accepting 12 × 12 mm square cuvettes with four polished windows.

Applications

Why Four-Way Light?

Unlike standard two-way cuvettes, the C104CA6 features four optically polished faces, enabling scattered-light collection from multiple angles. This is critical for DLS and particle sizing, where detectors are positioned at 90° or 173° (backscatter) relative to the incident laser beam. The four-window design ensures minimal refraction artifacts and maximum signal-to-noise ratio across all detection geometries.

Why Sintered 80?

The Sintered 80 fabrication method (learn more) delivers >80% transmittance across 200–2500 nm, providing reliable optical performance for routine particle analysis at an excellent price-to-performance ratio. Ideal for laboratories running frequent DLS measurements where cost efficiency matters without sacrificing measurement accuracy.
