(C102SE2) Quartz Stoppered Cuvette, 10 mm Path, 3.5 mL

Weight	30 g
Dimensions	1.25 × 1.25 × 4.5 mm

SKU: C102SE2

Original price was: $114.00.Current price is: $103.00.

In Stock

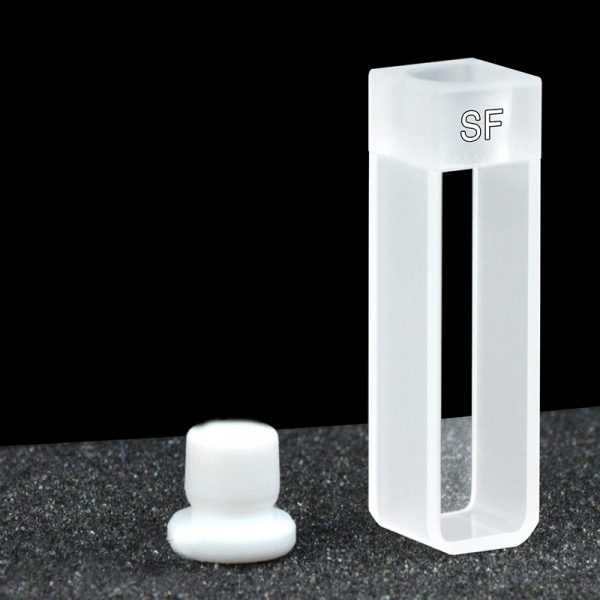

C102SE2 is a quartz stoppered cuvette with a 10 mm optical path, Two-Way Light geometry and 3.5 mL nominal capacity. Its full-size square body and PTFE stopper suit routine transmission measurements where you want top filling followed by covered sample handling. Supplied as 1 cuvette with stopper included.

In Stock

SKU: C102SE2 Categories: Cuvettes, Products, Quartz Stoppered Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SE2 is a quartz stoppered cuvette with a 10 mm optical path and 3.5 mL nominal capacity in a full-size square body. It is a practical choice for routine transmission work that uses the common 10 mm path, while the PTFE stopper lets you fill from the top and then cover the sample before measurement. This option is supplied as 1 cuvette with stopper included.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
Overall Height without Closure	45 mm
External Dimensions Scope	Uncapped Cell
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Stopper
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C102SE2 when you need a standard 10 mm transmission cell in a stoppered format rather than an open cuvette. The 3.5 mL nominal capacity suits ordinary liquid samples, and the PTFE stopper is useful when your workflow benefits from covering the filled cell during handling or while it sits in the instrument. This is a straightforward selection for two-face transmission measurements in a familiar square cuvette body.

What makes this option different

10 mm optical path for methods written around a 1 cm transmission length.
3.5 mL nominal capacity for routine liquid samples in a full-size cell format.
PTFE stopper included for top access followed by covered sample handling.
Two-Way Light geometry for transmission through two opposite optical faces.
12.5 × 12.5 × 45 mm uncapped body for checking holder seating and vertical clearance around the cell body.

Using this cell

Fill the cell from the top so the liquid level covers the beam region used by your instrument, then seat the PTFE stopper gently before measurement. Remove visible bubbles and keep the same orientation for blank and sample readings to maintain a consistent optical path.

Handle the cuvette by the non-optical sides where possible and keep the optical faces clean and dry on the outside. The stopper covers the opening after filling, but the assembly should not be treated as pressure-rated without a confirmed operating limit.

First-use check

Inspect the cuvette and PTFE stopper for chips, residue or particles.
Rinse with a cleaning liquid suitable for your method.
Test-fit the uncapped body in your holder before preparing important samples.
Confirm that the filled liquid level covers the beam path used by your instrument.

Fit and optical alignment

The uncapped body size is 12.5 × 12.5 × 45 mm. Those dimensions are useful for checking whether the cell will seat correctly in a square-cuvette holder and whether there is enough height clearance above the body for your stoppered setup.

This is a Two-Way Light cuvette intended for a beam passing through two opposite faces. Z Height is not stated for this SKU, so if your holder or instrument depends on a specific beam-center height, check that point separately instead of assuming it from the external dimensions.

Solvents and cleaning

Quartz is used for the cell body and PTFE for the stopper. If your sample or cleaning routine involves aggressive solvents, extended contact time or elevated temperature, check compatibility for both the quartz body and the stopper.

Compare fabrication options if your selection depends on sample chemistry or cleaning routine. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces with non-abrasive tissue.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom quartz cuvettes for changes to dimensions, optical path length, capacity, openings or stopper style. If fit is critical, send your holder or instrument details, key dimensions, sample conditions and target quantity. Discuss your requirements and quote part number C102SE2.
