(C102WS6) Quartz Flow Cell, 10 mm Path, 32 µL

Weight	30 g

SKU: C102WS6

Original price was: $190.00.Current price is: $171.00.

In Stock

C102WS6 is a compact JGS1 quartz flow cell for UV/Vis work with a 10 mm optical path, 32 µL nominal capacity and an 8.5 mm Z Height. Its 12.5 × 12.5 × 35 mm body uses two top tube connections and is priced per 1 flow cell.

In Stock

SKU: C102WS6 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102WS6 is a compact JGS1 quartz flow cell for UV/Vis spectroscopy with a 10 mm optical path and 32 µL nominal capacity. Its 8.5 mm Z Height gives you a defined beam-center reference, while the 12.5 × 12.5 × 35 mm body keeps the cell itself small at the sample position. Two tube connections rise from the top of the body for vertical tubing access.

Path Length: 10 mm
Sample Volume (Nominal): 32 µL
Opening Configuration: Two Top Tube Connections

Selection Specifications

Product Kind	Flow Cell
Cell Type	Flow Cell
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Z Height	8.5 mm
Sample Volume (Nominal)	32 µL
External Dimensions	12.5 × 12.5 × 35 mm
Cell Body Dimensions	12.5 × 12.5 × 35 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS1
MQ Grade	Molded 83
Port Count	2
Fabrication Method	Molded 83
Opening Configuration	Two Top Tube Connections

Choose this option

Choose C102WS6 when you need a small flow-cell body with a standard 10 mm path and a known 8.5 mm bottom-to-beam-center dimension. It is a practical option for compact holders or semi-automatic biochemistry setups where the cell volume, beam position and top-entry tubing all need to work within limited space.

What makes this option different

10 mm optical path in a flow-cell format for UV/Vis measurements.
32 µL nominal capacity for a small cell volume within the optical section.
8.5 mm Z Height for checking beam position against your holder or instrument geometry.
12.5 × 12.5 × 35 mm body-only size with two top tube connections above the cell body.

Using this cell

Connect your tubing to the two top tubes and fill the cell gradually so the illuminated region wets evenly. Before measurement, inspect the optical area for trapped bubbles, droplets or residue, then establish your blank after the flow path has stabilized.

The 32 µL figure is the nominal cell volume, not the minimum working volume of the complete liquid circuit. Tubing, fittings and other dead volume in the system remain separate from the cell body and should be considered in your setup.

No pressure rating is stated for this model. Review your operating pressure and connection method before using the cell in a pressurized system.

First-use check

Inspect the body and top tube connections for visible damage before use.
Test the fit in the holder with enough clearance for the projecting tubes and tubing route.
Flush with a suitable liquid for your method and confirm the optical region is free of bubbles before measurement.

Fit and optical alignment

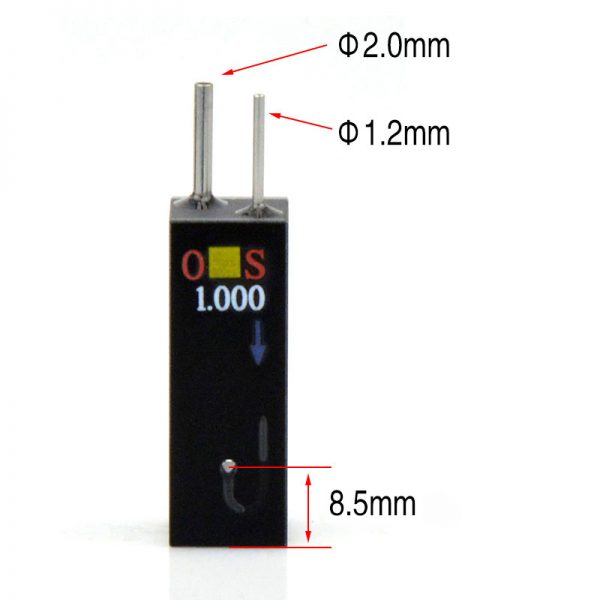

The listed 12.5 × 12.5 × 35 mm dimensions apply to the black cell body only. They do not include the projecting top tubes, so the installed height and tubing bend space will be larger than the body itself.

The key alignment dimension here is the 8.5 mm Z Height. Compare that bottom-to-beam-center value with the reference used by your instrument or holder, especially if the compartment has limited clearance above the sample position.

Solvents and cleaning

This cell uses Molded 83 fabrication. This construction is commonly selected for methods involving organic solvents or temperature-controlled work, but the practical suitability still depends on the complete wetted assembly and your actual liquid conditions.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean and dry the optical faces gently with non-abrasive laboratory tissue or other non-scratching materials.

Included with this option

1 cuvette per listed price unit. Contact us before ordering if you require a supplied closure or other accessory.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows, Z Height, connections, fabrication and tolerances. Discuss your requirements and quote part number C102WS6.
