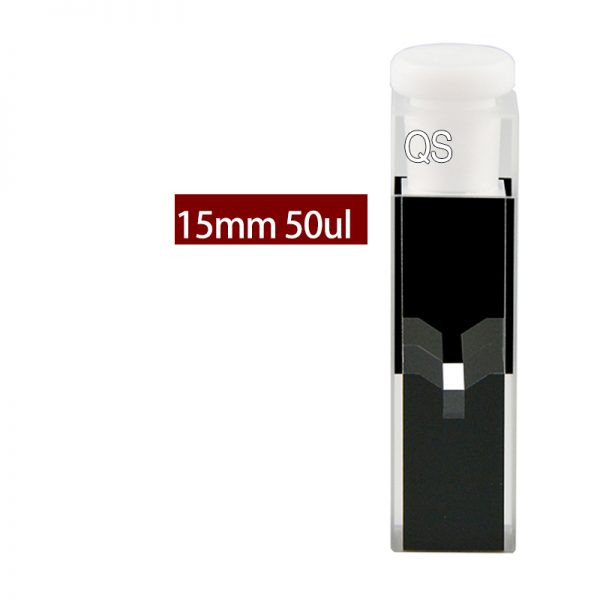

(C102CD3) Quartz Ultra-Micro Cuvette, 10 mm Path, 50 µL

Weight	30 g

SKU: C102CD3

Original price was: $142.00.Current price is: $128.00.

In Stock

C102CD3 is a JGS1 quartz ultra-micro cuvette for UV/Vis work with a 10 mm optical path, 50 µL nominal capacity and a 15 mm Z Height. This option includes a stopper and uses a Two-Way Light transmission layout in a compact body. Sold as 1 cuvette per listed price unit.

In Stock

SKU: C102CD3 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CD3 is a JGS1 quartz ultra-micro cuvette for UV/Vis measurements from 200 to 2500 nm when you need a 10 mm optical path in a compact 50 µL format. Its 15 mm Z Height is a key selection point for holders with a defined beam position, and the included stopper gives covered handling for this small-volume cell.

Path Length: 10 mm
Sample Volume (Nominal): 50 µL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Z Height	15 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	50 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Body Only
Body Height	45 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Fabrication Method	Standard 80

Choose this option

Choose C102CD3 when your method needs a standard 10 mm transmission path but your sample volume is limited and your holder is built around a 15 mm beam center. The stopper-equipped format is useful when you want covered handling after filling, including work with volatile solutions, without treating the cell as a pressure-rated or leak-tight assembly.

What makes this option different

10 mm optical path keeps the standard transmission path in an ultra-micro body.
50 µL nominal capacity suits small-volume sample handling.
15 mm Z Height sets this option apart from lower beam-center ultra-micro cells and should be matched to your holder.
Stopper included provides covered handling after filling.
Two-Way Light configuration is intended for transmission through the two main optical faces.
Standard 80 adhesive-bonded construction is commonly selected for routine room-temperature aqueous samples and buffers.

Using this cell

Load the sample carefully so the illuminated region is fully covered during measurement, and avoid bubbles in the light path. The 50 µL figure is the nominal cell capacity, not a minimum working volume, so your actual fill level should be set by the beam path used in your method.

If you are handling volatile solutions, fit the stopper gently and seat it consistently from run to run. The included stopper supports covered use, but the available information does not establish a pressure-rated, leak-tight or transport-sealed assembly.

First-use check

Before first use, inspect the optical faces for dust or residue and check that the stopper seats consistently. Place the cell in the holder, confirm beam alignment at the 15 mm center height, and run a blank at your working wavelength before routine measurements.

Fit and optical alignment

The body dimensions are 12.5 × 12.5 × 45 mm, and these dimensions apply to the body only. The stated 45 mm height refers to the bare cell body and does not include the part of the stopper that projects above the neck, so check top clearance in your holder or sample compartment if space is limited.

The beam center is 15 mm above the bottom of the cell. Match that position to your instrument before ordering. This is a Two-Way Light cell, so use it where the measurement path is through the two optical faces rather than through side optical access.

Solvents and cleaning

Standard 80 indicates an adhesive-bonded quartz construction. This type is commonly selected for routine room-temperature aqueous samples and buffers. Avoid organic samples and organic cleaning solvents with this adhesive-bonded cell.

The detailed chemical limits for this exact assembled option are not established here, so if your method uses mixed solvents, aggressive reagents or heated cleaning, check suitability before use. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods, and clean the optical faces gently with non-abrasive laboratory or optical wipes.

Included with this option

1 cuvette per listed price unit. A closure is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

For a different design, send a drawing or describe the change you need. Custom JGS1 quartz enquiries are assessed separately from this listed specification; feasibility, quantity, price and timing are confirmed in the project quotation.
