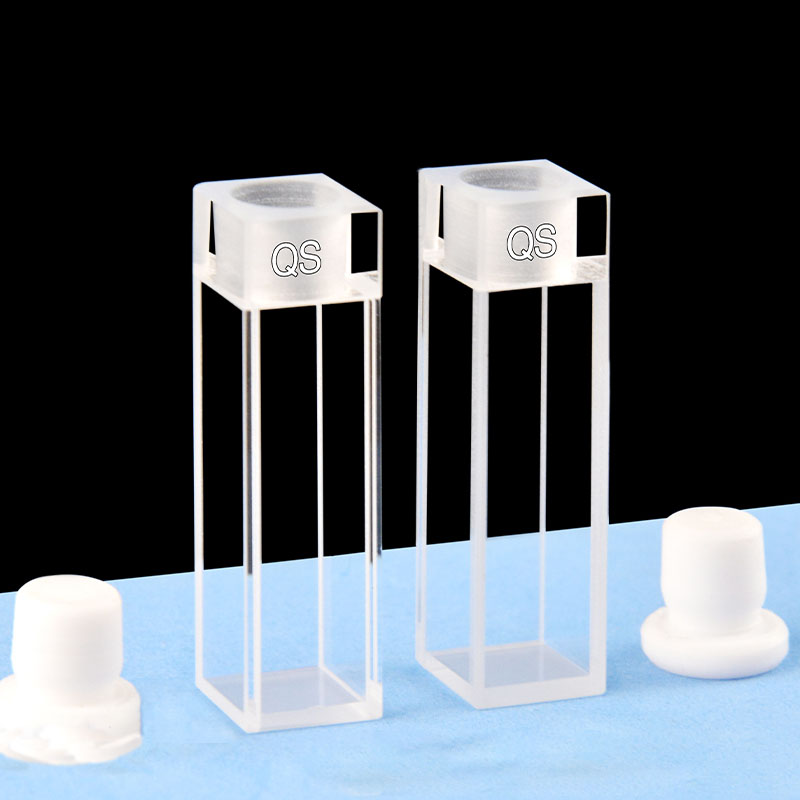

(C104SR16) Quartz Stoppered Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g

SKU: C104SR16

Original price was: $217.00.Current price is: $196.00.

In Stock

C104SR16 is a quartz stoppered cuvette with a 10 mm optical path, Four-Way Light access and 3.5 mL nominal capacity. The PTFE stopper is included, and this sales option is supplied as a pack of 2 cuvettes. The uncapped cell body is 12.5 × 12.5 × 45 mm for holder and compartment planning.

In Stock

SKU: C104SR16 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104SR16 is a quartz stoppered cuvette for 10 mm path measurements where you want covered sample handling and optical access from all four sides. Its 3.5 mL nominal capacity suits routine filled-cell work, and the uncapped 12.5 × 12.5 × 45 mm body size helps you check holder fit before you commit to this format. This option is supplied as a pack of 2 cuvettes, each with a PTFE stopper.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
Overall Height without Closure	45 mm
External Dimensions Scope	Uncapped Cell
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Stopper
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C104SR16 when your method is built around a 10 mm path and you want a square quartz cell with a fitted stopper rather than an open top. The Four-Way Light layout is useful when your setup needs side access beyond a simple front-and-back transmission path, while the 3.5 mL nominal capacity keeps this option in the familiar full-size cuvette range for routine blank and sample handling.

What makes this option different

10 mm optical path for methods specified around a 1 cm path length.
Four-Way Light configuration gives optical access on all four sides of the cell body.
PTFE stopper included for covered filling and measurement instead of open-top handling.
3.5 mL nominal capacity suits standard filled-cell workflows; it is a nominal cell capacity, not a minimum working volume.
12.5 × 12.5 × 45 mm uncapped body helps you check holder seating and compartment clearance.
Pack of 2 cuvettes per listed price unit.

Using this cell

Fill the cell so the liquid level covers the beam region used in your instrument, then seat the PTFE stopper gently. Keep the same orientation for blank and sample when your method depends on orientation, and remove bubbles or droplets from the optical region before measurement.

Handle the cuvette by the non-optical sides to keep the light path faces clean. A stoppered top helps keep the sample covered during normal handling, but this product should not be treated as a pressure-rated assembly.

First-use check

Inspect both cuvettes and both stoppers for chips, particles or handling residue.
Rinse with a cleaning method suitable for your sample and procedure.
Place an empty cuvette in the holder to confirm seating and stopper clearance.
Run a blank in the same orientation planned for the sample.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. Use those dimensions for holder fit checks, and allow extra vertical clearance above the cell for the stopper.

Z Height is not listed for this SKU. If your instrument has a fixed beam center or strict beam-height requirement, check that point before ordering. Four-Way Light describes the optical access category of the cell, but final suitability still depends on your holder and beam geometry.

Solvents and cleaning

Compare fabrication options if your method involves demanding solvents or a specific cleaning routine. For this exact SKU, chemical limits for the full cell-and-stopper assembly are not established here, so check your sample liquid and cleaning conditions before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

2 cuvettes per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch, plus your holder details, critical dimensions, sample conditions and target quantity. Discuss your requirements and quote part number C104SR16.
