(C104CS66) Quartz Micro Cuvette, 10 mm Path, 700 µL

Weight	30 g

SKU: C104CS66

Original price was: $72.00.Current price is: $65.00.

In Stock

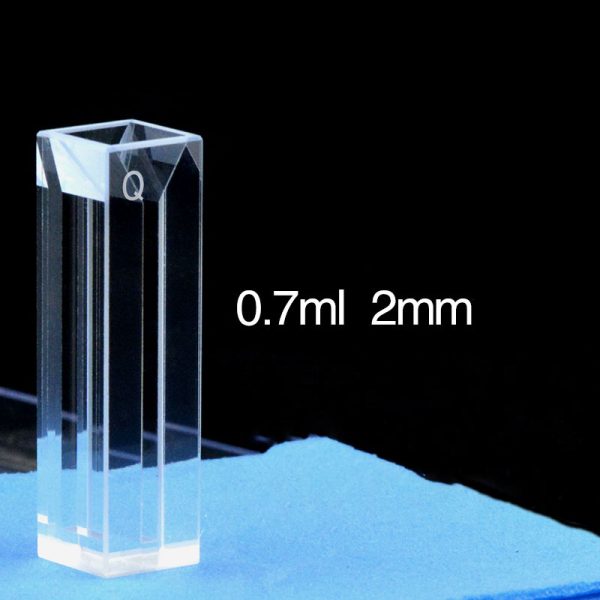

Quartz micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light access and 700 µL nominal capacity. This Standard 80 adhesive-bonded option uses a 2 mm sample-region channel and is intended for neutral sample solutions. Sold as 1 cuvette per price unit, with a closure included.

In Stock

SKU: C104CS66 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS66 is a quartz micro cuvette for fluorescence measurements where you need a standard 10 mm optical path in a compact body with a narrow sample region. Its Four-Way Light layout, 2 mm sample-region channel and 700 µL nominal capacity make it a focused choice when you want four-side optical access while keeping the sample chamber relatively slim. This version uses Standard 80 adhesive-bonded construction for neutral sample solutions.

Path Length: 10 mm
Sample Volume (Nominal): 700 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	2 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	2 mm

Choose this option

Choose this cell when your method needs a 10 mm fluorescence cuvette with Four-Way Light access and a narrower 2 mm sample region than the wider-channel versions in the same family. It is useful when you want the familiar square cuvette format for holder placement, but your sample setup calls for a tighter channel and a nominal capacity of 700 µL rather than the larger chamber options.

What makes this option different

10 mm optical path for standard cuvette-based fluorescence measurements.
Four-Way Light design for optical access through all four side faces in compatible fluorescence setups.
2 mm sample-region channel with 700 µL nominal capacity.
Standard 80 adhesive-bonded quartz construction for neutral sample solutions.
Closure included; sold as 1 cuvette per listed price unit.

Using this cell

Fill the cell from the top opening so the illuminated region is fully covered during the measurement. Keep the optical faces clean and free of residue, droplets and bubbles, and use the same orientation for blank and sample runs.

Place the closure gently after filling. It covers the opening for routine handling, but this page does not define a pressure rating or a sealed-system operating condition.

First-use check

Inspect the optical faces and top opening before first use. Then place the cell in the intended holder and run a blank to confirm stable seating, closure clearance and a fill level that fully covers the measurement region.

Fit and optical alignment

The body dimensions are 12.5 × 12.5 × 45 mm for the uncapped cell. Use that size for holder checks, but allow extra top clearance when the closure is fitted.

Z Height is not specified for this SKU. If your fluorimeter or holder depends on a defined beam-center height, confirm that point before ordering. The 700 µL figure is nominal capacity only and should not be treated as the minimum working volume for your beam geometry.

Solvents and cleaning

This Standard 80 adhesive-bonded option is intended for routine water-based samples and buffers at room temperature. For this SKU, the supplier restricts use to neutral sample solutions. Specific solvent, concentration, temperature and exposure-time limits are not stated.

Avoid organic sample solvents and organic cleaning agents with this cell. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis and abrasive cleaning methods.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions for changes involving dimensions, optical path length, sample volume, optical windows, Z Height, closures, fabrication and tolerances. Discuss your requirements and quote part number C104CS66.
