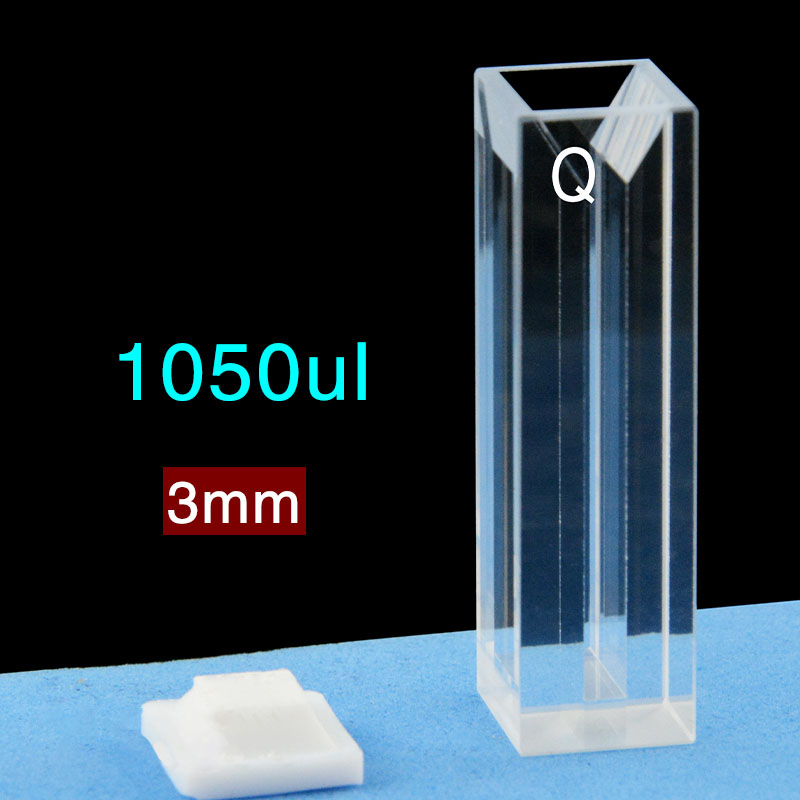

(C104CS22) Quartz Micro Cuvette, 10 mm / 3 mm (dual path) Path, 1.05 mL

Weight	30 g

SKU: C104CS22

Original price was: $72.00.Current price is: $65.00.

In Stock

JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path, 3 mm secondary path, Four-Way Light configuration and 1.05 mL nominal capacity. This adhesive-bonded version is supplied as 1 cuvette with a lid and is restricted to neutral samples.

In Stock

SKU: C104CS22 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS22 is a JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path, a 3 mm secondary path and Four-Way Light access. Its 1.05 mL nominal capacity gives you a compact sample cell, and this adhesive-bonded version is intended for neutral samples rather than broad chemical exposure.

Path Length: 10 mm / 3 mm (dual path)
Sample Volume (Nominal): 1.05 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm / 3 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	3 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	3 mm

Choose this option

Choose C104CS22 when you need the stated 10 mm / 3 mm dual-path geometry and a covered micro cuvette for routine fluorescence work with neutral samples. The key point for selection is not only the optical layout, but also the adhesive-bonded construction, which makes this version a better fit for water-based or buffered work than for organic-solvent methods.

What makes this option different

10 mm / 3 mm dual path for this specific fluorescence cuvette layout.
Four-Way Light configuration for side optical access around the sample region.
Standard 80 adhesive-bonded construction for routine neutral, water-based sample handling.
Supplied as 1 cuvette with lid per listed price unit.

Using this cell

Fill the cell so the illuminated sample region is fully covered, and keep bubbles, droplets and dried residue away from the optical faces. Use the same orientation and seating for blank and sample measurements so the beam passes through the same part of the cell each time.

The nominal capacity is 1.05 mL, but it is not a minimum working volume specification. Establish your working fill level in your own setup, especially if your beam height is fixed or your holder seats the cell deeply.

First-use check

Inspect the optical faces for dust, fingerprints or residue before first use and rinse with a method-compatible liquid if needed. Seat the lid gently, place the cuvette in the holder, and run a blank to confirm that the beam passes cleanly through the intended sample region.

Fit and optical alignment

The stated external size is 12.5 × 12.5 × 45 mm for the uncapped cell body. Check holder width, depth and height clearance for the cell plus lid allowance in your setup, because the verified dimensions do not include lid height.

Z Height is not established for this SKU, so instrument fit should be checked against your holder and beam position rather than assumed from body height alone. The 3 mm sample-region width is useful for planning the illuminated area, but it is not a substitute for a beam-height datum.

Solvents and cleaning

This adhesive-bonded construction corresponds to Standard 80. It is the MQ direction for routine water-based samples and buffers at room temperature, and the supplier restricts this option to neutral samples.

A complete solvent compatibility list is not established for this SKU. Avoid organic sample solvents and organic cleaning agents with this adhesive-bonded option. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis and abrasive cleaning materials.

Included with this option

1 quartz micro cuvette with lid.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication. Send a dimensioned drawing or labelled sketch together with your holder details, beam position, sample conditions and target quantity. Discuss your requirements and quote part number C104CS22.
