(C104CS31) Quartz Micro Cuvette, 10 mm / 4 mm (dual path) Path, 1.4 mL

Weight	30 g

SKU: C104CS31

Original price was: $143.00.Current price is: $129.00.

In Stock

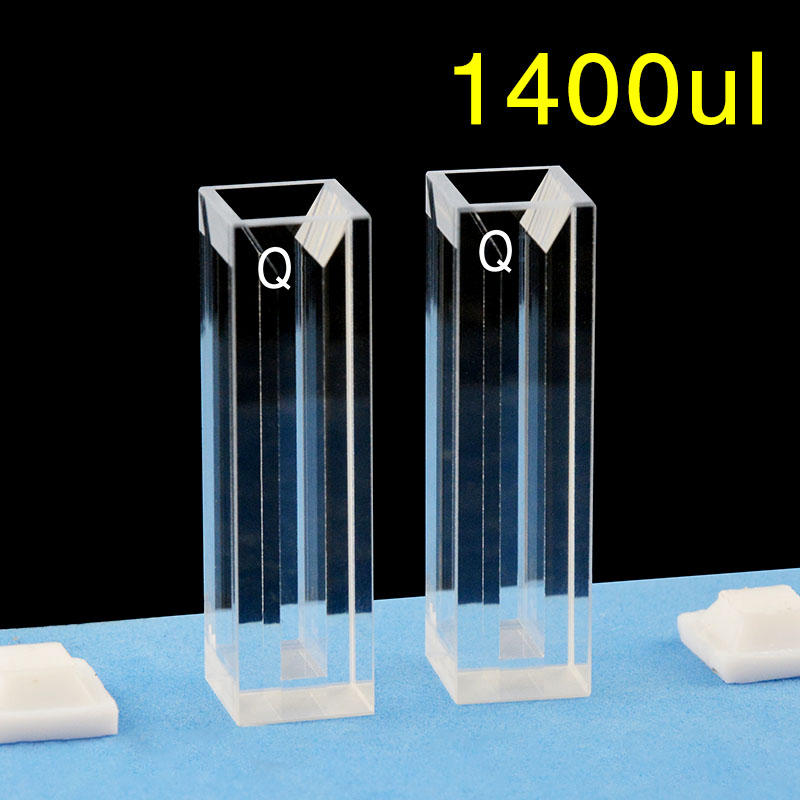

C104CS31 is a JGS1 quartz micro cuvette for fluorescence measurements, combining a 10 mm main path with a 4 mm secondary path in a Four-Way Light body. Its 1.4 mL nominal capacity and included lid suit covered bench use in a compact micro-cuvette format. The listed price is for 1 cuvette.

In Stock

SKU: C104CS31 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS31 is a JGS1 quartz micro cuvette for fluorescence measurements, with a 10 mm main path, a 4 mm secondary path and Four-Way Light optical access. This combination is useful when you need a compact cell body but do not want to move to a very narrow sample region. The nominal capacity is 1.4 mL, and the MQ sale unit for this listing is 1 cuvette with a lid included.

Path Length: 10 mm / 4 mm (dual path)
Sample Volume (Nominal): 1.4 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm / 4 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	4 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.4 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	4 mm

Choose this option

Choose C104CS31 when your method uses fluorescence geometry and you want a defined 10 mm / 4 mm dual-path layout in a compact square-body cuvette. The four transmitting faces allow side optical access, while the included lid supports routine covered measurements on the bench. This version is an adhesive-bonded quartz cell, so it is best suited to neutral samples rather than solvent-heavy or chemically aggressive work.

What makes this option different

10 mm main path with a 4 mm secondary path in one micro cuvette.
Four-Way Light configuration for optical access from four faces.
1.4 mL nominal capacity with a stated 4 mm sample-region width.
JGS1 quartz, supplied as 1 cuvette with a lid.

Using this cell

Fill the cell so the illuminated sample region is fully covered during measurement, and keep the optical faces free from fingerprints, dried residue and bubbles. For blank and sample runs, use the same orientation each time so the beam crosses the same faces consistently.

The lid is supplied for covered use, but this is not described as a pressure-rated or leak-tight assembly. If your process depends on sealing during transport, inversion or extended closed handling, check the complete setup under your actual conditions before routine use.

First-use check

Before first use, inspect the optical faces and edges, rinse with a suitable liquid for your method, and confirm that your working fill covers the illuminated region. It is also worth checking lid seating and holder clearance before running samples.

Fit and optical alignment

The verified body size is 12.5 × 12.5 × 45 mm for the uncapped cell. Use that bare-cell outline to check holder fit and clearance above the cuvette, because the listed dimensions do not include the installed lid height.

Z Height is not established for this SKU, so overall body height should not be used as a beam-center reference. The 1.4 mL figure is a nominal capacity only, not a minimum working volume, so set your fill level according to your instrument beam position.

Solvents and cleaning

This is an adhesive-bonded Standard 80 quartz cuvette. It is intended for routine neutral samples at room temperature. A complete solvent compatibility list is not established for this assembled option, and the supplier restricts this version to neutral samples.

Avoid organic sample solvents and organic cleaning agents with this cell. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis and abrasive cleaning. Wipe the exterior optical faces gently with non-abrasive optical tissue.

Included with this option

One quartz micro cuvette with a lid included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz cuvettes for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication. If you need a modified version, send a dimensioned drawing or labelled sketch and quote part number C104CS31.
