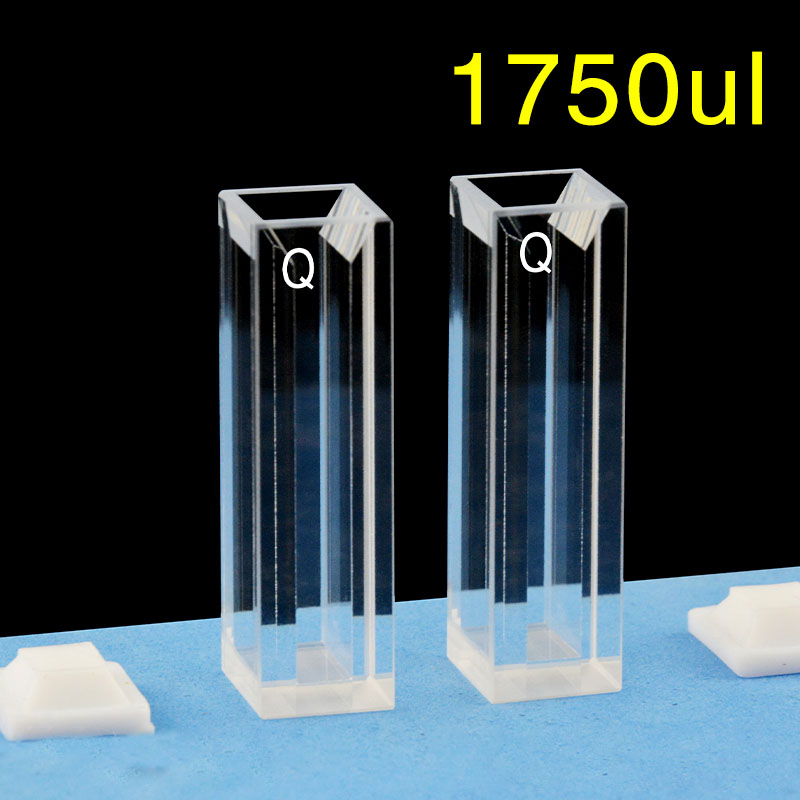

(C104CS45) Quartz Micro Cuvette, 10 mm / 5 mm (dual path) Path, 1.75 mL, Pack of 2

Weight	30 g

SKU: C104CS45

Original price was: $143.00.Current price is: $129.00.

In Stock

This JGS1 quartz micro cuvette combines a 10 mm primary path with a 5 mm secondary path in a Four-Way Light format for fluorescence measurements. This Standard 80 adhesive-bonded version is restricted to neutral samples and has a 1.75 mL nominal capacity. Supplied as a pack of 2 cuvettes with lids included.

In Stock

SKU: C104CS45 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS45 is a JGS1 quartz micro cuvette for fluorescence spectroscopy, built with a 10 mm primary path, a 5 mm secondary path and Four-Way Light optical access in one compact body. This version uses Standard 80 adhesive-bonded quartz construction and is restricted to neutral samples, so both optical layout and sample chemistry matter when you select it. This listing is supplied as a pack of 2 cuvettes with lids included.

Path Length: 10 mm / 5 mm (dual path)
Sample Volume (Nominal): 1.75 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm / 5 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	5 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.75 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	5 mm

Choose this option

Choose this cell when your method uses the stated 10 mm / 5 mm dual-path geometry and your sample conditions stay within the neutral-sample limit of this adhesive-bonded version. It is also the relevant option when you want this configuration in a two-cuvette sale unit for paired routine use, while keeping the compact 1.75 mL nominal chamber size.

What makes this option different

10 mm / 5 mm dual path gives two stated optical directions within the same cuvette body.
Four-Way Light configuration provides optical access from four faces around the sample region.
Standard 80 adhesive-bonded construction defines the build style of this option.
Neutral-sample restriction and pack of 2 sale unit shape both method fit and ordering choice.

Using this cell

Fill the cuvette from the top opening and place the lid gently after loading the sample. Keep the same orientation for blank and sample measurements so the beam crosses the same sample region each time, and check the illuminated area for bubbles or residue before measurement.

This adhesive-bonded version is restricted to neutral samples, so review both the sample solution and the cleaning liquid before use. The 1.75 mL nominal capacity describes the cell volume and should not be read as a guaranteed minimum working fill for every instrument geometry.

First-use check

Inspect the optical faces, top opening and lid seating area before first use.
Test holder fit and beam placement with a suitable blank before running samples.
Confirm that your sample and cleaning conditions remain within the neutral-sample limit of this version.

Fit and optical alignment

The stated dimensions of 12.5 × 12.5 × 45 mm apply to the uncapped cell body. Use those dimensions to check holder fit, and allow extra clearance if the lid remains in place because the installed height with the lid is not specified here.

Z Height is not specified for this option. If your holder or instrument requires a defined beam-center height, please check that point before ordering.

Solvents and cleaning

This cuvette uses Standard 80 adhesive-bonded quartz construction. For this SKU, it is restricted to neutral samples, making it best suited to room-temperature water-based samples or buffers within that range.

Avoid organic sample solvents and organic cleaning agents with this option. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the outer optical faces with non-abrasive optical tissue.

Included with this option

2 quartz micro cuvettes. Lids are included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz versions for changes to dimensions, path length, sample volume, optical windows, Z Height, closures and fabrication. If you need a different chemistry range or holder fit, send your drawing or holder details and sample conditions, then discuss your requirements with reference to C104CS45.
