(C104SR5) Quartz Micro Cuvette, 10 mm Path, 1.75 mL

Weight	30 g

SKU: C104SR5

Original price was: $293.00.Current price is: $264.00.

In Stock

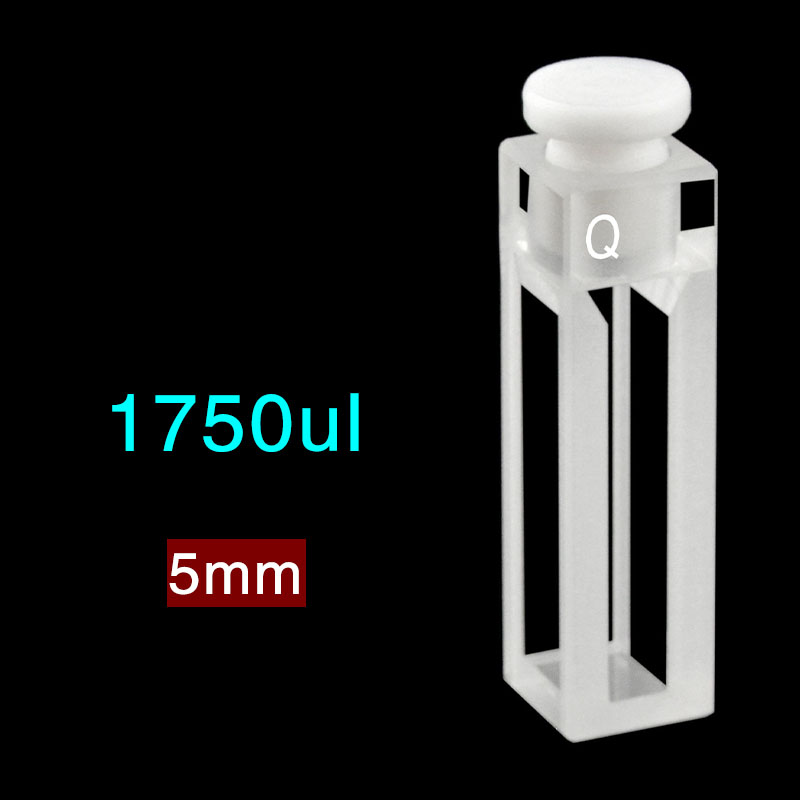

C104SR5 is a JGS1 quartz Micro Cuvette with a 10 mm optical path, Four-Way Light access and 1.75 mL nominal capacity. Its 5 mm sample-region width is a useful geometry check when you need side optical access as well as the main transmission path. Sold as 1 cuvette per listed price unit, with a closure included.

In Stock

SKU: C104SR5 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104SR5 is a JGS1 quartz Micro Cuvette with a 10 mm optical path, Four-Way Light access and 1.75 mL nominal capacity. It suits methods that use a standard straight-through path while keeping side optical access available, and its 5 mm sample-region width is worth checking against your beam footprint and filling routine. The listed MQ sale unit is 1 cuvette per price unit, with a closure included.

Path Length: 10 mm
Sample Volume (Nominal): 1.75 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.75 mL
External Dimensions	12.5 × 12.5 × 45 mm
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Detection Channel Width	5 mm

Choose this option

Choose C104SR5 when you need a compact quartz cell that combines a standard 10 mm path with side optical access in a micro-cuvette format. The 1.75 mL nominal capacity and covered sample opening make it a practical choice for small-volume work where you want direct filling into a compact 12.5 × 12.5 mm body rather than a larger full-size cell.

What makes this option different

10 mm optical path for methods that call for the standard straight-through measurement length.
Four-Way Light layout keeps side optical access available in addition to the main transmission faces.
1.75 mL nominal capacity in a compact micro-cuvette format for small prepared sample volumes.
5 mm sample-region width gives you an extra geometry point to check against beam size and handling space.
JGS1 quartz body for use across the stated 200–2500 nm range.
Fused integrated construction with a covered sample chamber, suited to customers choosing a closed micro-cell style rather than an open-top chamber.
MQ sale unit: 1 cuvette per listed price, with closure included.

Using this cell

Fill the sample chamber so the optical region used by your method is covered, then remove visible bubbles before measurement. Keep the same seating direction for blank and sample, especially if your setup uses the side optical access of the Four-Way Light layout as part of the measurement geometry.

The included closure covers the sample opening during handling and routine use. The nominal capacity describes the chamber volume, not a minimum working fill, so your method still needs enough liquid to cover the actual beam region in your instrument.

First-use check

Inspect the optical faces and chamber opening for chips, residue or handling marks.
Place the cell in your holder and confirm that it seats stably in the intended orientation.
Run a blank and verify that your fill level covers the optical region used in your method.

Fit and optical alignment

The body measures 12.5 × 12.5 × 45 mm, and those dimensions are useful for checking holder clearance and insertion space. They describe the bare body rather than a closure-added envelope.

Z Height is not specified for this SKU. If your instrument has a fixed beam axis or a tight holder, check beam position and seating before ordering rather than assuming fit from body height or path length alone.

Solvents and cleaning

This cell is described with fused integrated construction, which is relevant mainly as a covered micro-cell build style for this SKU rather than as an open chamber or demountable assembly. It does not establish a specific chemical-resistance guarantee for every solvent system.

Chemical limits for this exact SKU are not established here. Keep hydrofluoric acid away from quartz, avoid hot strong alkalis and abrasive cleaning, and clean the optical faces gently with suitable non-abrasive tissue. For general fabrication background, see Cuvette fabrication methods.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this listed specification directly, or ask about current availability and dispatch. If your delivery date is important, ask before checkout; preparation or production time is separate from transit and customs clearance.

Discuss a custom version

If you need a different geometry, opening style or other modified detail, send a drawing or describe the change you need. Custom JGS1 quartz enquiries are reviewed separately from this listed SKU, with feasibility, quantity, price and production time confirmed in the quotation.
