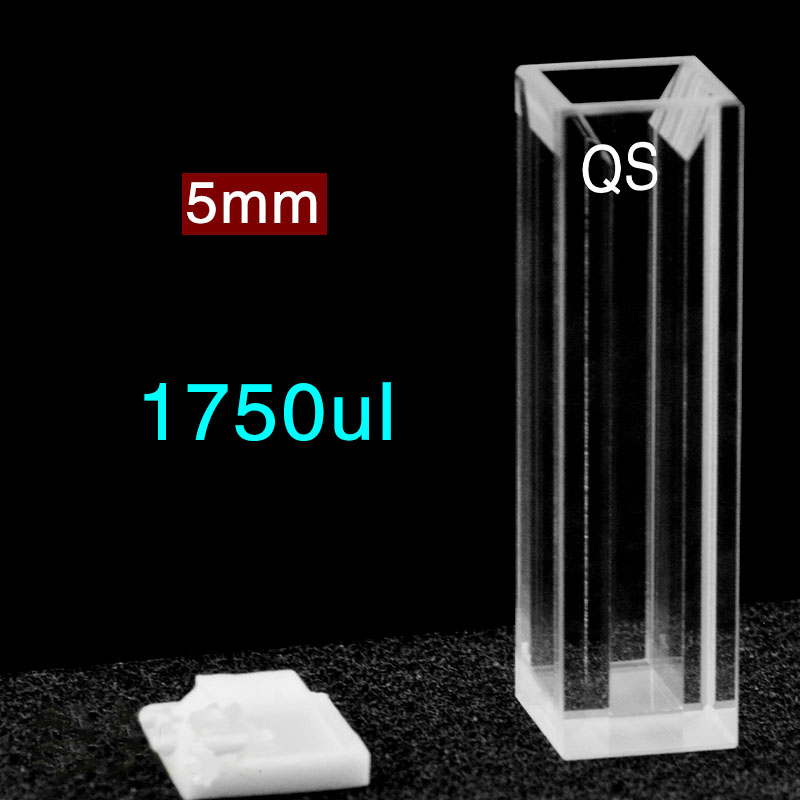

(C104CE9) Quartz Micro Cuvette, 10 mm / 5 mm (dual path) Path, 1.75 mL

Weight	30 g

SKU: C104CE9

Original price was: $452.00.Current price is: $407.00.

In Stock

This JGS1 quartz micro cuvette combines a 10 mm primary path with a 5 mm secondary path in a Four-Way Light format for fluorescence measurements. Its 1.75 mL nominal capacity and included lid suit compact sample handling with optical access on multiple sides. Supplied as 1 cuvette.

In Stock

SKU: C104CE9 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE9 is a JGS1 quartz micro cuvette for fluorescence spectroscopy, combining a 10 mm primary path, a 5 mm secondary path and Four-Way Light optical access in one compact cell body. Its 1.75 mL nominal capacity makes it suitable when you want a smaller-format cuvette without giving up side access around the sample region. This listing is supplied as 1 cuvette with lid included.

Path Length: 10 mm / 5 mm (dual path)
Sample Volume (Nominal): 1.75 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm / 5 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	5 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.75 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	5 mm

Choose this option

Choose this cell when your method is built around a 10 mm / 5 mm dual-path layout and uses side access around the sample region for fluorescence work. It is also a practical fit when you want the same optical geometry as this series in a single-cuvette sale unit rather than a two-cell pack.

What makes this option different

10 mm / 5 mm dual path gives two stated optical directions in the same cuvette body.
Four-Way Light configuration provides optical access from four faces around the sample region.
1.75 mL nominal capacity offers a compact chamber size for routine sample loading.
Single-cuvette sale unit with lid included suits one-at-a-time purchase or replacement needs.

Using this cell

Fill the cell carefully through the top opening and seat the lid gently before placing it in the holder. For blank and sample measurements, keep the same orientation so the beam crosses the same part of the sample region each time.

Check the illuminated area for bubbles or residue before measurement, and keep the outer optical faces dry. The stated nominal capacity describes the cell volume and should not be treated as a minimum working volume for every beam geometry.

First-use check

Inspect the optical faces, top opening and lid seating surfaces before first use.
Place the cell in the holder with a blank and confirm beam placement through the intended sample region.
Use the same seating direction for routine measurements.

Fit and optical alignment

The stated dimensions of 12.5 × 12.5 × 45 mm apply to the uncapped cell body. Use those dimensions for holder fit, then allow additional clearance if the lid remains in place during use because the installed lid height is not specified here.

Z Height is not specified for this cuvette. If your instrument depends on a defined beam-center height, please check that requirement before ordering.

Solvents and cleaning

This cuvette is listed as Molded 83. This fabrication style is commonly selected for methods that may involve organic solvents or temperature-controlled work, but the exact chemical limits for this SKU are not established here.

Choose sample and cleaning conditions for the complete assembly, including the lid. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and wipe the optical faces with non-abrasive optical tissue.

Included with this option

1 Quartz Micro Cuvette with lid included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz versions for changes to dimensions, path length, sample volume, optical windows, Z Height, closures and related tolerances. Send a drawing or labelled sketch, together with holder details and sample conditions, and discuss your requirements with reference to C104CE9.
