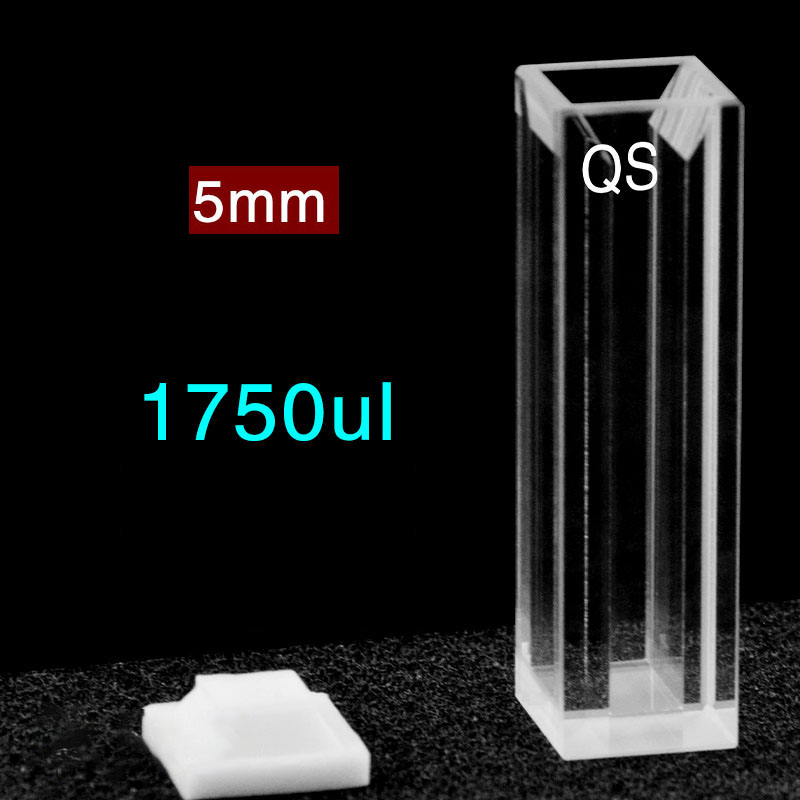

(C104CE15) Quartz Micro Cuvette, 10 mm / 5 mm (dual path) Path, 1.75 mL

Weight	30 g

SKU: C104CE15

Original price was: $323.00.Current price is: $291.00.

In Stock

JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path, 5 mm secondary path and Four-Way Light access. Its 1.75 mL nominal capacity and 5 mm stated sample-region width suit methods that need side optical access in a compact cell. Supplied as 1 quartz micro cuvette, with a closure included.

In Stock

SKU: C104CE15 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE15 is a JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path and a 5 mm secondary path in one compact body. Its Four-Way Light layout gives optical access from four sides, and the 1.75 mL nominal capacity fits routine small-volume handling without moving to an ultra-micro format. This sales option is supplied as 1 quartz micro cuvette, with a closure included.

Path Length: 10 mm / 5 mm (dual path)
Sample Volume (Nominal): 1.75 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm / 5 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	5 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.75 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	5 mm

Choose this option

Choose this cuvette when your method uses fluorescence geometry that benefits from four-side optical access and a defined 10 mm / 5 mm dual-path layout. The stated 5 mm sample-region width is useful when planning how the illuminated area sits within the cell, and the included closure completes the working cell for bench use and sample handling.

What makes this option different

10 mm / 5 mm dual-path geometry for methods built around two stated optical directions in one cell.
Four-Way Light configuration for optical access from four sides around the sample region.
1.75 mL nominal capacity in a compact micro cuvette format.
Molded 83 fabrication with JGS1 quartz construction and an included closure.

Using this cell

Fill the cell so the intended illuminated region is covered during measurement, then keep the same orientation for blank and sample runs. This matters when your setup uses the secondary path or side optical access, because consistent face orientation helps keep the measurement geometry unchanged from run to run.

The 1.75 mL figure is the nominal capacity of the cell, not a minimum working volume. If your instrument uses a fixed beam height or a small beam footprint, set the fill level by the actual beam position in your holder and check for bubbles before measurement.

First-use check

Inspect the optical faces, chamber and closure seating area before first use.
Place the empty cell in the holder to confirm body fit and top clearance.
Run a blank in the intended orientation and check that the beam passes through the intended sample region.
Confirm that the fill level covers the illuminated area without bubbles or residue on the optical faces.

Fit and optical alignment

The stated external dimensions, 12.5 × 12.5 × 45 mm, apply to the uncapped cell body. Use those body dimensions to check holder fit and insertion clearance, and leave additional space above the cell because the installed height with the closure is not established here.

Z Height is not available for this SKU. If your fluorescence accessory or holder depends on a defined beam-centre height, please check alignment in your own fixture rather than relying on the external body size alone.

Solvents and cleaning

This cuvette uses Molded 83 fabrication. This MQ fabrication option is commonly selected for organic-solvent methods and applications involving temperature control, but suitability still needs to be judged for the complete assembly and your actual chemical conditions.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the exterior optical faces gently with non-abrasive optical tissue. Where your method involves aggressive chemicals, elevated temperature or long contact time, check compatibility for the exact sample and cleaning routine you plan to use.

Included with this option

1 quartz micro cuvette with lid.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz versions for changes to dimensions, optical path length, sample volume, optical windows, Z Height, closures and fabrication requirements. Send a drawing or labelled sketch together with holder details, application wavelength, sample conditions and target quantity for review. Discuss your requirements and mention part number C104CE15.
