(C104CE10) Quartz Micro Cuvette, 10 mm / 5 mm (dual path) Path, 1.75 mL, Pack of 2

Weight	30 g

SKU: C104CE10

Original price was: $903.00.Current price is: $813.00.

In Stock

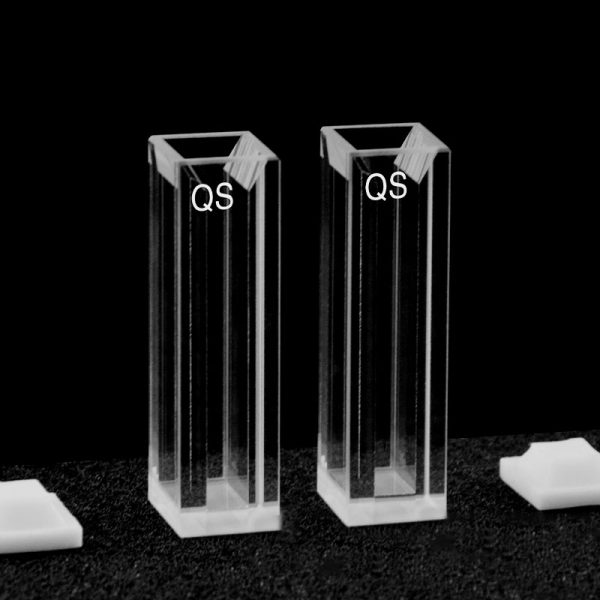

This JGS1 quartz micro cuvette combines a 10 mm primary path with a 5 mm secondary path in a Four-Way Light format for fluorescence work. Its 1.75 mL nominal capacity and included lid suit compact measurements that need optical access around the sample region. Supplied as a pack of 2 cuvettes.

In Stock

SKU: C104CE10 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE10 is a JGS1 quartz micro cuvette for fluorescence spectroscopy, built with a 10 mm primary path, a 5 mm secondary path and Four-Way Light optical access. Its 1.75 mL nominal capacity gives a compact sample chamber, while the included lid helps with routine handling between filling and measurement. This listing is supplied as a pack of 2 cuvettes.

Path Length: 10 mm / 5 mm (dual path)
Sample Volume (Nominal): 1.75 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm / 5 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	5 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.75 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	5 mm

Choose this option

Choose this cell when your setup is arranged around a 10 mm / 5 mm dual-path format and needs optical access on four sides of the sample region. The 5 mm sample-region width is relevant when you position the beam and set the cell orientation in a fluorescence holder, and the 1.75 mL nominal volume suits methods that do not need a larger standard-size cell body.

What makes this option different

10 mm / 5 mm dual path gives two stated optical directions within the same cuvette body.
Four-Way Light configuration supports optical access from four faces around the sample region.
1.75 mL nominal capacity provides a compact chamber without implying a minimum working fill.
Pack of 2 with lids included keeps the priced sale unit clear for ordering and routine lab use.

Using this cell

Fill the cuvette carefully from the top opening and place the lid gently after loading the sample. For blank and sample measurements, keep the same cell orientation each time so the intended optical direction and sample presentation remain consistent.

Before measurement, check the illuminated region for bubbles, droplets and residue. Keep the outer optical faces dry and clean, especially near the beam area.

First-use check

Inspect the optical faces, top opening and lid seating area before first use.
Place the empty or blank-filled cell in the holder and confirm that the beam passes through the intended sample region.
Verify that your working fill covers the beam path without trapped bubbles.

Fit and optical alignment

The stated body dimensions are 12.5 × 12.5 × 45 mm for the uncapped cell. Use those dimensions to check holder fit for the quartz body itself, then allow extra clearance if the lid stays on during measurement because the installed height with the lid is not specified here.

Z Height is not specified for this option. If your instrument or holder requires a defined beam-center height, please check that requirement before ordering.

Solvents and cleaning

This cuvette is listed as Molded 83. This fabrication style is commonly chosen for methods that may involve organic solvents or temperature-controlled work, but the exact chemical limits for this specific SKU are not established here.

Select cleaning and sample conditions for the full assembly, including the lid. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and wipe the optical faces with non-abrasive optical tissue.

Included with this option

2 Quartz Micro Cuvettes with lids included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz versions for changes to dimensions, path length, sample volume, optical windows, Z Height, closures and related tolerances. Send a drawing or labelled sketch, together with holder details and sample conditions, and discuss your requirements with reference to C104CE10.
