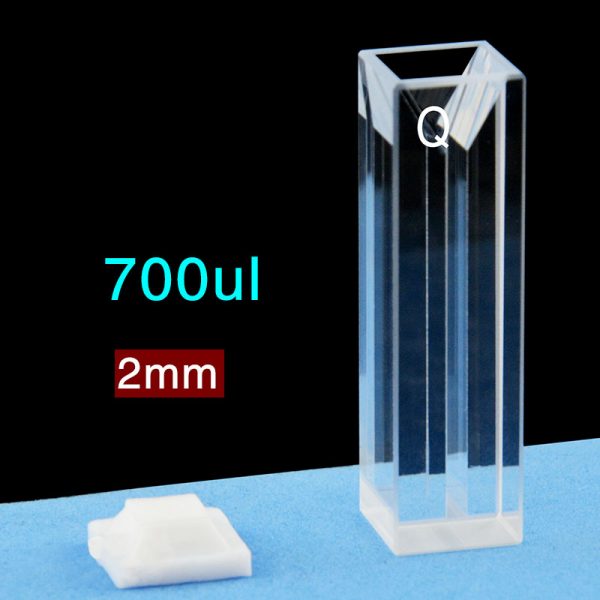

(C104CS28) Quartz Micro Cuvette, 10 mm / 2 mm (dual path) Path, 700 µL

Weight	30 g

SKU: C104CS28

Original price was: $72.00.Current price is: $65.00.

In Stock

JGS1 quartz micro cuvette for fluorescence work with a 10 mm primary path, 2 mm secondary path and Four-Way Light access. This adhesive-bonded option has a 700 µL nominal capacity, a 12.5 × 12.5 × 45 mm uncapped body and a supplied lid, and it is intended for neutral samples. Sold as 1 cuvette per price unit.

In Stock

SKU: C104CS28 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS28 is a JGS1 quartz micro cuvette for fluorescence measurements that use a 10 mm / 2 mm dual-path layout. It combines Four-Way Light optical access, a 700 µL nominal capacity and a compact 12.5 × 12.5 × 45 mm uncapped body, with a supplied lid for the listed assembly. This adhesive-bonded version is intended for neutral samples and is sold as 1 cuvette per price unit.

Path Length: 10 mm / 2 mm (dual path)
Sample Volume (Nominal): 700 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm / 2 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	2 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	2 mm

Choose this option

Choose this cell when you need the stated 10 mm primary path, 2 mm secondary path and four-side optical access in a compact micro-cuvette format, and when your samples stay within the neutral-use scope of this adhesive-bonded version. The square body format also helps with holder planning where standard cuvette-body seating matters.

What makes this option different

10 mm primary path with a 2 mm secondary path for this specific dual-path measurement geometry.
Four-Way Light layout for optical access from four sides around the sample region.
Adhesive-bonded construction intended for neutral samples rather than general organic-solvent use.
700 µL nominal capacity in a 12.5 × 12.5 × 45 mm uncapped body, with lid supplied separately from the stated body height.

Using this cell

Fill from the top so the illuminated sample region is completely covered, and remove visible bubbles before measurement. Keep the same orientation for blank and sample runs if your method depends on the stated path direction.

The 700 µL figure is nominal capacity, not a stated minimum working volume. If you plan to work below nominal fill, check that the liquid level still covers the beam position used by your instrument.

First-use check

Inspect the optical faces, opening and lid seating surfaces before use.
Rinse with a sample-compatible neutral liquid.
Place the cell in the holder and confirm stable seating and beam coverage.
Run a blank before introducing routine samples.

Fit and optical alignment

The uncapped body measures 12.5 × 12.5 × 45 mm, which is useful for holder seating and top-clearance planning. Because these dimensions exclude lid height, allow additional space above the cell when the lid is fitted.

Z Height is not specified for this SKU. If your fluorescence setup uses a fixed beam center or limited vertical adjustment, check alignment against your holder and illuminated region before ordering.

Solvents and cleaning

This cuvette is described with Standard 80 fabrication. In this adhesive-bonded form, it is intended for neutral samples. Avoid organic samples and organic cleaning solvents with this option.

A complete solvent compatibility list is not established here, so do not treat it as a general-purpose cell for aggressive chemistry. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 1 quartz micro cuvette with lid.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch together with holder or instrument information, critical dimensions and sample conditions. Discuss your requirements and quote part number C104CS28.
