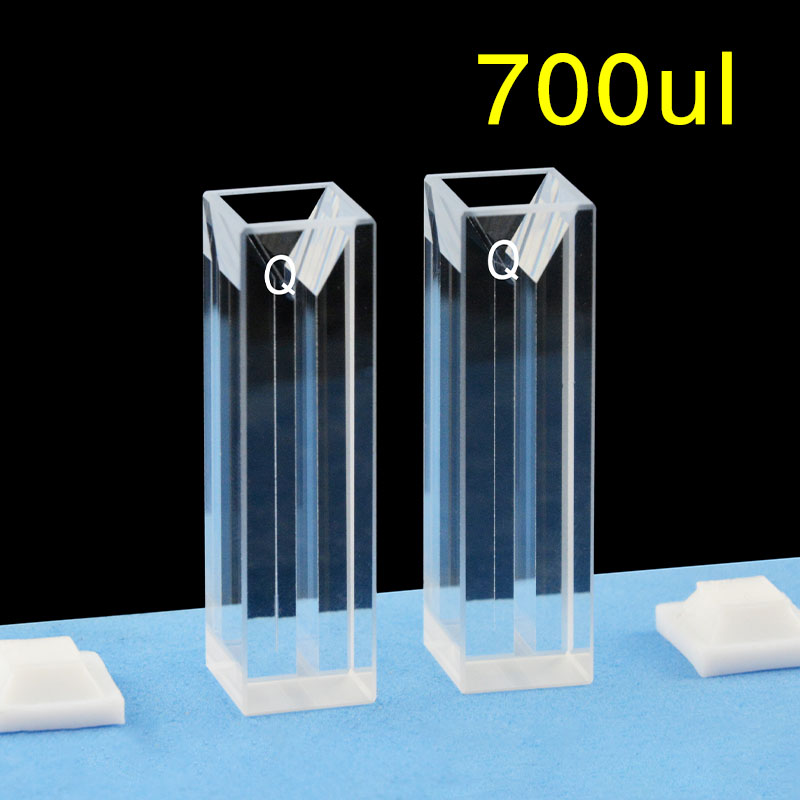

(C104CS29) Quartz Micro Cuvette, 10 mm / 2 mm (dual path) Path, 700 µL

Weight	30 g

SKU: C104CS29

Original price was: $143.00.Current price is: $129.00.

In Stock

C104CS29 is a JGS1 quartz micro cuvette for fluorescence spectroscopy, combining a 10 mm main path with a 2 mm secondary path in a Four-Way Light layout. Its 700 µL nominal capacity suits small-sample handling in a compact square-body format. The listed price is for 1 cuvette, with a lid included.

In Stock

SKU: C104CS29 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS29 is a JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm main optical path and a 2 mm secondary path. The Four-Way Light layout gives optical access around the sample region, while the 700 µL nominal capacity keeps the cell compact for small-volume work. A lid is included, and the listed price is for 1 cuvette.

This option is useful when your method needs a standard 10 mm path but also depends on a narrower 2 mm optical direction in the same cell. Its uncapped body measures 12.5 × 12.5 × 45 mm, which helps when checking holder space while keeping lid clearance as a separate fit question.

Path Length: 10 mm / 2 mm (dual path)
Sample Volume (Nominal): 700 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm / 2 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	2 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	2 mm

Choose this option

Choose C104CS29 when you need a fluorescence micro cuvette with both a 10 mm main path and a 2 mm secondary path, rather than a single-path cell. The square 12.5 × 12.5 mm body suits compact holder layouts, and the included lid is useful when you want covered handling between filling and measurement without treating the cell as a pressure-rated assembly.

What makes this option different

10 mm / 2 mm dual-path layout for methods that use two defined optical directions in one cell.
Four-Way Light configuration for optical access from four sides around the sample region.
700 µL nominal capacity in a compact micro-cuvette format.
Square 12.5 × 12.5 × 45 mm uncapped body for holder planning, with lid clearance checked separately.

Using this cell

Fill the cuvette so the illuminated sample region is fully covered and free of bubbles. Keep the same orientation for blank and sample runs, especially if your method uses the 2 mm optical direction as well as the 10 mm path.

The 700 µL value is the nominal capacity of the cell, not a minimum working volume. Set your actual fill level by the beam position and the part of the sample region that must remain covered during measurement.

First-use check

Inspect the optical faces and top opening for chips, residue or transport marks before use. Rinse with a suitable liquid for your method, then run a blank and confirm that the filled sample covers the intended optical region without trapped bubbles.

Fit and optical alignment

The uncapped cell body measures 12.5 × 12.5 × 45 mm. Use those body dimensions to check holder seating and nearby mechanical clearance, then allow extra space above the cell for the lid.

Z Height is not established for this item. If your fluorescence holder or instrument depends on a fixed beam position, check beam height against your own fixture rather than assuming alignment from the overall body dimensions alone.

Solvents and cleaning

This cell uses Standard 80 adhesive-bonded quartz construction. It is intended for neutral samples, so it should not be selected as a general-purpose cuvette for organic samples or organic cleaning solvents.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning, and choose any rinse or cleaning liquid for the complete wetted assembly rather than the quartz body alone.

Included with this option

One quartz micro cuvette with a lid included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication. Send a dimensioned drawing or labelled sketch together with your holder or instrument details, critical dimensions and sample chemistry. Discuss your requirements and quote part number C104CS29.
