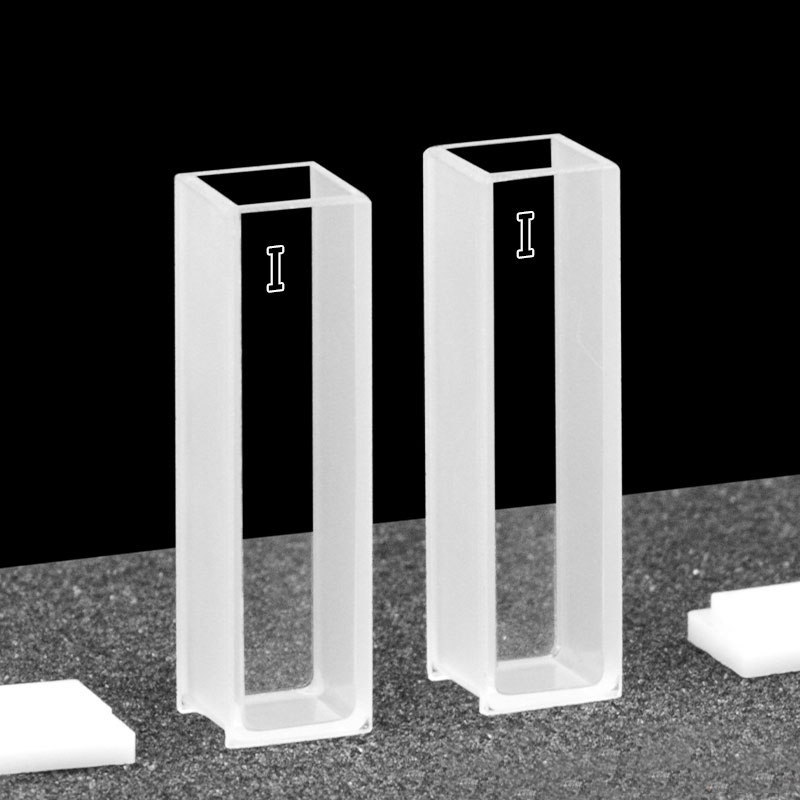

(C102CS91) Quartz Standard Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g

SKU: C102CS91

Original price was: $57.00.Current price is: $52.00.

In Stock

JGS3 quartz standard cuvette with a 10 mm optical path, Two-Way Light layout and 3.5 mL nominal capacity. This open-top version includes a lid, is marked for neutral solutions, and is sold as a pack of 2 cuvettes.

In Stock

SKU: C102CS91 Categories: Cuvettes, Infrared (IR) Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CS91 is a JGS3 quartz standard cuvette with a 10 mm optical path in a familiar square-body format. This option combines a Two-Way Light layout, 3.5 mL nominal capacity and an open top with included lids, so it suits routine filling and straight-through transmission measurements. The selected ordinary version is marked for neutral solutions, and this listing is sold as a pack of 2 cuvettes.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Infrared Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose C102CS91 when you need two standard-format quartz cells with direct top filling and a fixed 10 mm path. It fits routine bench work where you want straightforward blank/sample handling in the same cell style, while keeping sample and cleaning chemistry within the stated neutral-solution use of this selected version.

What makes this option different

10 mm optical path for a fixed 1 cm transmission measurement path.
Two-Way Light configuration for a straight beam through opposing optical faces.
Open-top format with included lids for direct filling and covered handling.
3.5 mL nominal capacity for routine liquid work in a standard cell body.
JGS3 quartz body with a stated 260–3500 nm range.
Neutral-solution use for this selected ordinary version.
Pack of 2 as the sale unit for this SKU.

Using this cell

Fill from the open top and fit the lids when you want the sample covered during normal handling or measurement. This format is convenient for manual loading, rinsing and repeated blank/sample exchange without tubing or extra assembly steps.

The nominal capacity is 3.5 mL, but a minimum working volume is not established here. If your method depends on very low fill level or exact beam coverage at a defined height, check that in your own holder before routine use.

First-use check

Inspect both cuvettes for residue, scratches or chips on the optical faces.
Test-fit the uncapped body in your holder and confirm clear beam access.
Run a blank with your measurement liquid and check for bubbles or contamination before routine use.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. Use that body size to check holder seating and compartment clearance, and allow additional space if you measure with the lid fitted because the assembled height is not established here.

Z Height is not established for this SKU. If your instrument or holder requires a defined beam-center height, confirm that requirement before purchase rather than assuming compatibility from the outer body dimensions alone.

Solvents and cleaning

This selected ordinary cell is restricted to neutral solutions. That matters for both samples and cleaning liquids, because no validated complete solvent list is supplied for this option.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. For general background on cuvette construction terms, see MQ Cuvette Fabrication Glossary.

Included with this option

Supplied as 2 cuvettes. Closures are included. The exact package contents beyond the included closures are not established here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements and quote part number C102CS91.
