Quartz 10mm Fluorescence Screw-Cap Cuvette, 3.5 ml, Sintered 83, Four-Way Light, Screw Cap, Pack of Two, C104TR1

Weight	30 g

SKU: C104TR1

C104TR1 Quartz 10mm Four-Way Light Fluorescence Cuvette 3.5ml Sintered 83 PTFE-Lined Screw Cap

Original price was: $379.00.Current price is: $342.00.

In Stock

Quartz 10 mm four-way fluorescence cuvette with screw cap, 3.5 ml, Sintered 83 (>83% transmittance). PTFE-lined screw cap for drip-proof sealing. Pack of Two. 190–2500 nm. SKU: C104TR1.

In Stock

SKU: C104TR1 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

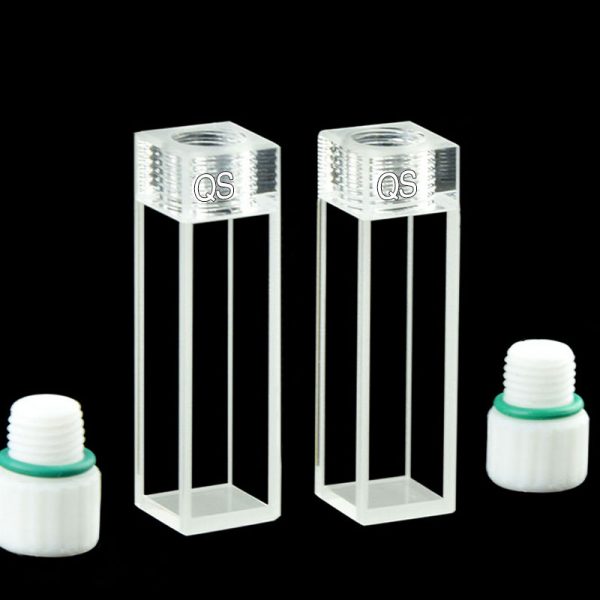

The C104TR1 is a quartz fluorescence cuvette with 10 mm path length, four-way light optical windows, and an internal screw-thread neck for secure PTFE-lined screw cap closure. The screw cap threads directly into the cuvette neck for one-handed operation — fill, cap, and load in seconds without risk of the cap popping off during handling or inversion. Four polished quartz faces provide the standard 90° fluorescence geometry with >83% transmittance. The standard 3.5 ml internal volume (10 × 10 × 43 mm chamber) is compatible with most commercial fluorimeters. Fabricated using Sintered 83 — quartz panels fused at ~600 °C with no adhesive joints. Supplied as a matched pair (Pack of Two).

Technical Specifications
Material	Quartz (Fused Silica)	SKU	C104TR1
Path Length	10 mm	Internal Volume	3.5 ml
Optical Windows	4 (Four-Way Light)	Fabrication	Sintered 83
Transmittance	>83%	Wavelength	190–2500 nm
Exterior Dimensions	12.5 × 12.5 × 45 mm	Interior Dimensions	10 × 10 × 43 mm
Cap	PTFE-Lined Screw Cap	Package	Pack of Two

Fluorescence Applications

◆ 90° fluorescence spectroscopy

◆ Fluorescence quenching & Stern–Volmer analysis

◆ FRET (Förster resonance energy transfer)

◆ Fluorescence lifetime measurements

◆ Quantum yield determination

◆ Environmental fluorimetry (PAH, DOM)

◆ UV-Vis absorbance (190–2500 nm)

◆ High-throughput fluorescence screening

Why Screw Cap?

The internal screw-thread neck accepts a PTFE-lined cap that threads on in a single twist, providing a drip-proof, chemical-resistant seal. Unlike friction-fit PTFE caps or ground-glass stoppers, the screw cap cannot pop off during inversion or transport — making it ideal for high-throughput labs that fill, mix, and load cuvettes rapidly. The PTFE liner is chemically inert and prevents cross-contamination between samples.

Why Sintered 83 Construction?

Sintered 83 cuvettes are assembled by fusing quartz panels at approximately 600 °C, creating strong, adhesive-free joints. With >83% transmittance across 190–2500 nm, Sintered 83 delivers excellent optical clarity. For fluorescence work, the absence of adhesive is critical — optical cements can auto-fluoresce under UV excitation, adding unwanted background signal. The fused joints are compatible with strong acids, bases, and most organic solvents (excluding HF and aggressive organics such as toluene and acetone).

Usage Tips: Handle by non-optical surfaces only — fingerprints on polished faces cause scattering artifacts that raise fluorescence background. Rinse immediately after use. Sintered 83 construction is compatible with strong acids, bases, and most organic solvents (excluding HF and aggressive organics such as toluene and acetone). For fluorescence work, ensure the excitation beam enters through a polished window and the detector views at 90° through an adjacent polished face. Compatible with Shimadzu, Agilent, PerkinElmer, Thermo Fisher, JASCO, Hitachi, Horiba, Edinburgh Instruments, and most commercial fluorimeters.

Custom Orders & Academic Purchasing: Need a custom size, path length, or window configuration? We offer made-to-order cuvettes tailored to your specifications. Academic institutions: we accept Purchase Orders (POs) with pay-after-delivery terms. Contact us for quotes and custom requests.

Disclaimer: This product is intended for laboratory and research use only. It is not designed, approved, or intended for use in medical diagnostics, therapeutic procedures, or any clinical application involving human or animal subjects. The buyer assumes all responsibility for determining the suitability of this product for their specific application.
