(C104TF4) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C104TF4

Original price was: $233.00.Current price is: $210.00.

In Stock

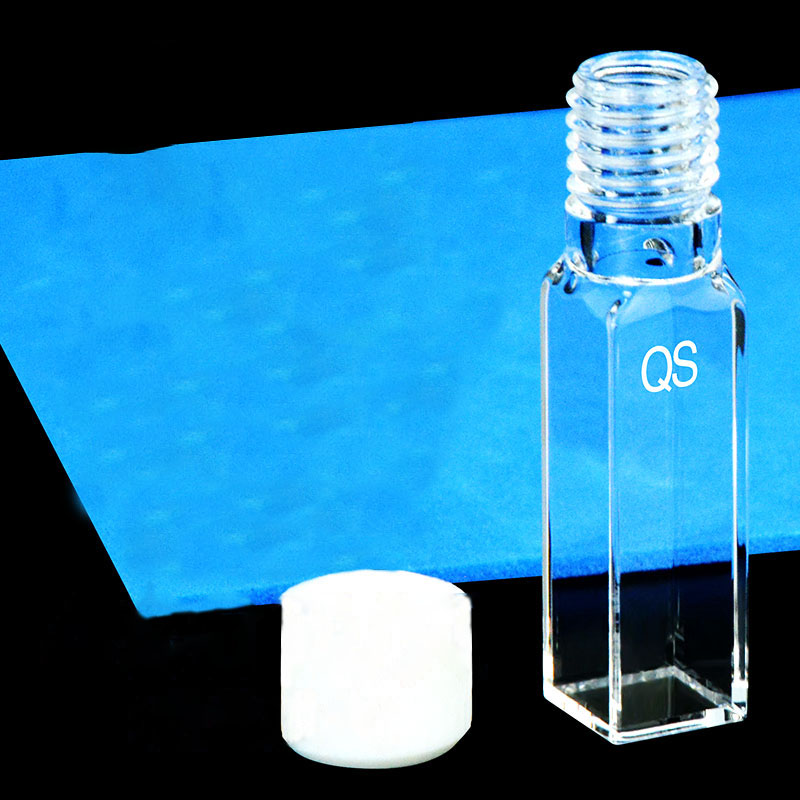

C104TF4 is a quartz screw-top cuvette with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. The capped top and four optical faces suit methods that need a covered sample chamber with side optical access. Supplied as 1 cuvette, with screw cap included.

In Stock

SKU: C104TF4 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TF4 is a quartz screw-top cuvette built around a 10 mm optical path in a familiar square cuvette footprint. Its combination of a 3.5 mL nominal capacity, a covered opening and Four-Way Light access makes it useful when you want a manually filled cell with optical access from more than two sides. This sale unit is for 1 cuvette, with the screw cap included.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 35 mm
Overall Height without Closure	54 mm
Body Height	35 mm
Overall Height with Closure	58 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Screw Cap
Closure Included	Yes
Fabrication Method	Molded 0.01

Choose this option

Choose C104TF4 when your method uses a 10 mm path but the sample chamber also needs to stay covered during handling or measurement setup. The four-side optical layout is helpful in UV/Vis or fluorescence arrangements that use side access around the sample region, while the 3.5 mL nominal capacity keeps this as a full-size cuvette rather than a micro-volume format.

What makes this option different

Molded 0.01 is the precision-oriented fabrication option for this cell. Agree the required tolerances and measurement conditions for the order; the fabrication name alone is not a numerical accuracy guarantee.

10 mm optical path for methods written around this standard path length.
Four-Way Light configuration for optical access on all four sides of the sample region.
Screw-top opening with cap included for a covered sample chamber after filling.
3.5 mL nominal capacity in a square 12.5 × 12.5 mm base format.

Using this cell

Fill the cell through the top opening and fit the cap gently onto clean threads before measurement. Use enough liquid to cover the beam path used by your instrument, and remove bubbles from the optical region before taking readings.

For repeatable blank and sample work, keep the same orientation each time and handle the cuvette by the non-optical surfaces where possible. The stated 3.5 mL is nominal capacity, not a minimum working volume.

First-use check

Inspect the optical faces, base and threaded opening for chips, dust or visible residue.
Rinse with a cleaning liquid suitable for your method and the full assembled cell.
Test fit the cuvette in your holder and confirm that the fitted cap clears the space above it.
Run a blank before sample measurements.

Fit and optical alignment

The cuvette body measures 12.5 × 12.5 × 35 mm, with a 12.5 × 12.5 mm base. Stated overall height is 54 mm without the cap and 58 mm with the cap fitted, so these are the dimensions to review if your holder, compartment cover or instrument lid has limited vertical clearance.

Z Height is not listed for this item. If your instrument or accessory depends on a defined beam-center height, check that point before ordering rather than treating this cell as a confirmed instrument-specific fit.

Solvents and cleaning

This cuvette is listed under Molded 0.01. This fabrication category is used for quartz cuvettes selected for tighter path-length requirements, but chemical limits for this exact assembled SKU are not established here, so plan cleaning and sample contact for the complete cell and closure together.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. Clean the optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 1 cuvette. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements and quote part number C104TF4.
