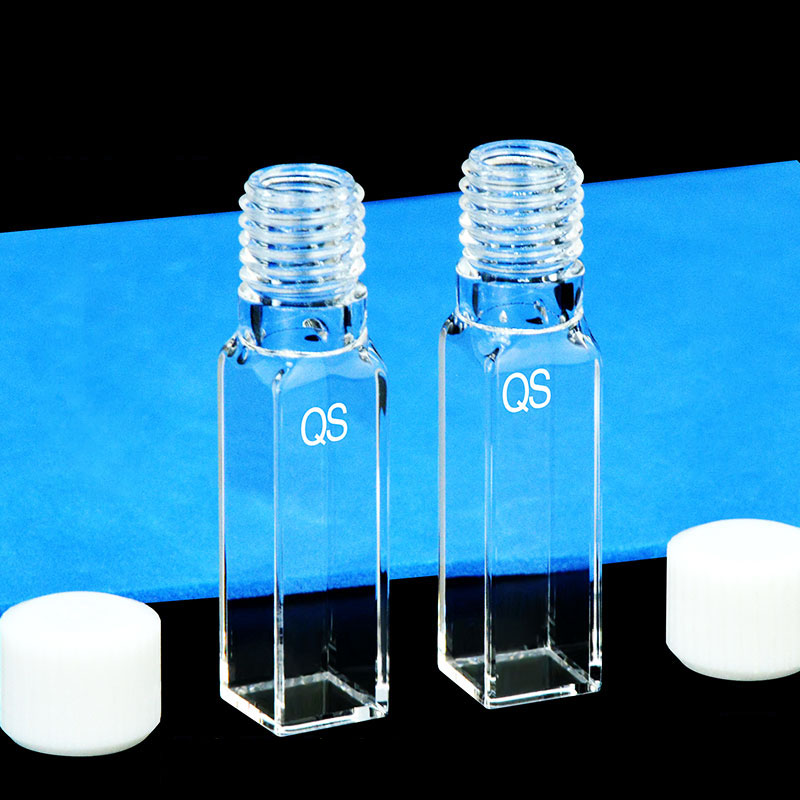

(C104TF5) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g

SKU: C104TF5

Original price was: $466.00.Current price is: $420.00.

In Stock

C104TF5 is a quartz screw-top cuvette with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. The capped top and four optical faces suit methods that need a covered sample chamber with side optical access. Supplied as a pack of 2, with screw caps included.

In Stock

SKU: C104TF5 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TF5 is a quartz screw-top cuvette built around a 10 mm optical path in a full-size square cuvette format. It combines a 3.5 mL nominal capacity with Four-Way Light access and a covered opening, making it useful when you want manual filling, a capped sample chamber and optical access from more than two sides. This option is sold as a pack of 2, with screw caps included.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 35 mm
Overall Height without Closure	54 mm
Body Height	35 mm
Overall Height with Closure	58 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Screw Cap
Closure Included	Yes
Fabrication Method	Molded 0.01

Choose this option

Choose C104TF5 when your method uses a 10 mm path and you want a covered quartz cell with optical access on all four sides of the sample region. The 3.5 mL nominal capacity gives a larger sample chamber than compact micro cells, while the square 12.5 × 12.5 mm base keeps the familiar cuvette footprint used in many holders.

What makes this option different

10 mm optical path for methods that specify this path length.
Four-Way Light configuration for optical access from all four vertical faces.
Screw-top format with cap included for a covered sample chamber after filling.
Pack of 2 for buyers who need two physical cuvettes in the priced sale unit.

Using this cell

Fill the cuvette through the threaded opening, then seat the cap gently before measurement. Use enough sample to cover the beam path used by your instrument, and clear any bubbles from the optical region before running a blank or sample.

Keep the same orientation for repeat measurements when your method depends on consistent positioning. Handle the cell by the non-optical surfaces where possible to reduce fingerprints on the optical faces. The stated 3.5 mL is nominal capacity, not a minimum working volume.

First-use check

Inspect the optical faces, base and threaded opening for dust, chips or visible residue.
Rinse with a cleaning liquid suitable for your method and the full assembled cell.
Test fit the cuvette and confirm that the fitted cap clears the space above it.
Run your blank in the same orientation planned for sample measurements.

Fit and optical alignment

The cuvette body is 12.5 × 12.5 × 35 mm with a 12.5 × 12.5 mm base. Stated overall height is 54 mm without the cap and 58 mm with the cap fitted, which is the key clearance check if your holder, compartment lid or cover sits close above the cell.

Z Height is not established for this SKU. If your instrument requires a defined beam-center height, check that point against your holder before ordering rather than assuming instrument-specific alignment from the general body format.

Solvents and cleaning

For a method with a defined optical path tolerance, specify that tolerance and its measurement conditions when selecting the Molded 0.01 option. The final requirement is agreed for the order.

This cuvette is listed under Molded 0.01. This fabrication category is used for quartz cuvettes selected for tighter path-length requirements, but chemical limits for this exact assembled SKU are not established here, so compatibility should be checked for the complete cell and closure when your process involves aggressive chemicals or heated cleaning.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Price is for 2 cuvettes. A screw cap is included with this cuvette format.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We also review custom JGS1 quartz cuvette requests involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication requirements. Send a labelled drawing or sketch, your holder or instrument details, sample conditions and target quantity via our contact page, and refer to part number C104TF5.
