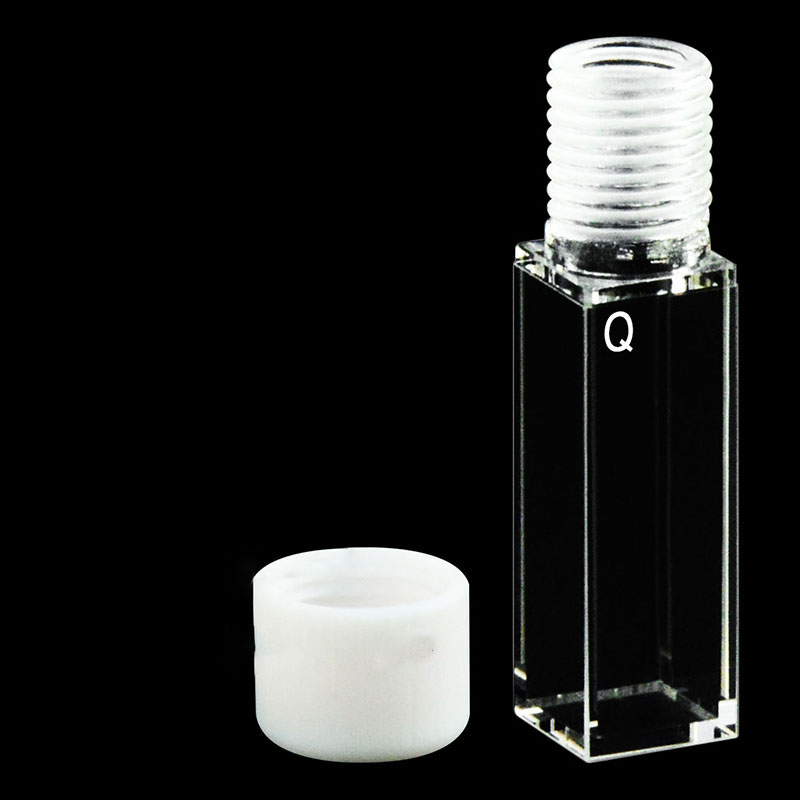

Quartz 10mm Screw Neck Cuvette With Holder, 3.5ml, Molded 83, Five-Way Light, Screw Cap, 1pc/ea, C105TE1
10%
USD$422.00 USD$380.00
Quartz 10 mm five-way light fluorescence cuvette, 3.5 ml, Molded 83 (>83% transmittance). PTFE-Lined Screw Cap. 190–2500 nm. SKU: C105TE1.
Add to Wishlist
Add to Wishlist
Description
The C105TE1 is a premium quartz fluorescence cuvette with 10 mm path length and five-way light optical configuration — all four vertical faces plus the bottom window are polished to optical grade, enabling excitation and emission collection from virtually any angle. With a standard 3.5 ml internal volume (10 × 10 × 50 mm chamber), the cell is compatible with most commercial fluorimeters and UV-Vis spectrophotometers. Fabricated using Molded 83 (>83% transmittance) — the cuvette body is integrally fused as a single piece with no adhesive joints. Features a PTFE-lined screw cap for secure, leak-resistant closure during mixing, inversion, or transport.
| Technical Specifications | |||
|---|---|---|---|
| Material | Quartz (Fused Silica) | SKU | C105TE1 |
| Path Length | 10 mm | Internal Volume | 3.5 ml |
| Optical Windows | 5 (Five-Way Light) | Fabrication | Molded 83 |
| Transmittance | >83% | Wavelength | 190–2500 nm |
| Exterior Dimensions | 12.5 × 12.5 × 52 mm | Interior Dimensions | 10 × 10 × 50 mm |
| Cap | PTFE-Lined Screw Cap | Package | 1 pc/ea |
Fluorescence Applications
◆ Steady-state & time-resolved fluorescence
◆ Fluorescence polarization & anisotropy
◆ Front-face fluorescence of turbid samples
◆ Multi-angle emission detection
◆ Förster resonance energy transfer (FRET)
◆ Quantum yield determination
◆ UV-Vis absorbance (190–2500 nm)
◆ Sample mixing, inversion & transport studies
Why Five-Way Light?
The five-way configuration polishes all four vertical faces plus the bottom to optical grade, providing maximum geometric flexibility for excitation and emission collection. This enables front-face fluorescence on opaque or highly concentrated samples, polarization anisotropy measurements requiring precise alignment, and bottom-read configurations used in plate-reader-adapted instruments. If your experiment only requires standard 90° fluorescence geometry, a four-way cuvette is sufficient; choose five-way when you need bottom optical access or plan to rotate the cuvette for multi-angle studies.
Screw Cap Closure
The PTFE-lined screw cap provides secure, leak-resistant closure that allows the cuvette to be inverted for mixing, transported between workstations, or used in automated sample changers without risk of leakage. The PTFE liner is chemically inert and contributes no background fluorescence. The threaded design allows one-handed operation and consistent sealing pressure.
Why Molded 83 Construction?
Molded 83 is the premium fabrication method: the cuvette is integrally fused as a single piece with no adhesive or joints. This eliminates solvent attack points and enables operation up to 1200 °C — far exceeding sintered (600 °C) or glue-assembled (200 °C) alternatives. Dimensional tolerance is ±0.02 mm. The monolithic construction withstands all common laboratory solvents, concentrated acids, and bases; avoid HF (hydrofluoric acid). Critically for fluorescence work, the absence of adhesive removes a common source of background fluorescence that can contaminate emission spectra. With transmittance >83%, Molded 83 is the gold standard for demanding fluorescence research.
Usage Tips: Handle by non-optical surfaces only — fingerprints on polished faces cause scattering artifacts that raise fluorescence background. Rinse immediately after use. Molded 83 construction withstands all common laboratory solvents, concentrated acids, and bases. Avoid HF (hydrofluoric acid). For fluorescence work, ensure the excitation beam enters through a polished window and the detector views at 90° through an adjacent polished face. Compatible with Shimadzu, Agilent, PerkinElmer, Thermo Fisher, JASCO, Hitachi, Horiba, Edinburgh Instruments, and most commercial fluorimeters.
Custom Orders & Academic Purchasing: Need a custom size, path length, or window configuration? We offer made-to-order cuvettes tailored to your specifications. Academic institutions: we accept Purchase Orders (POs) with pay-after-delivery terms. Contact us for quotes and custom requests.
Disclaimer: This product is intended for laboratory and research use only. It is not designed, approved, or intended for use in medical diagnostics, therapeutic procedures, or any clinical application involving human or animal subjects. The buyer assumes all responsibility for determining the suitability of this product for their specific application.
Additional information
| Weight | 30 g |
|---|
