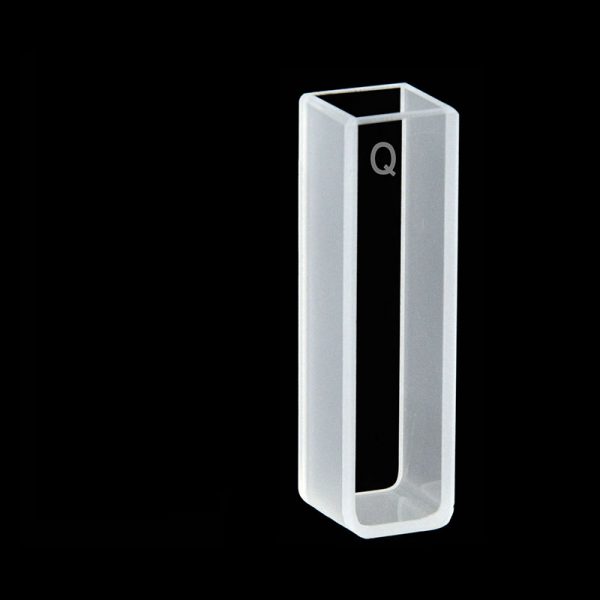

(C102CF1) Quartz Standard Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C102CF1

Original price was: $247.00.Current price is: $223.00.

In Stock

C102CF1 is a JGS1 quartz standard cuvette for UV/Vis work with a 10 mm optical path, Two-Way Light layout and 3.5 mL nominal capacity. This option uses the Molded 0.01 fabrication category and is supplied with a closure in a standard rectangular cuvette body.

In Stock

SKU: C102CF1 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CF1 is a JGS1 quartz standard cuvette for UV/Vis measurements with a 10 mm optical path in a standard rectangular cell format. It combines Two-Way Light geometry with a 3.5 mL nominal capacity, so it suits routine straight-through transmission work where you want a familiar top-filled cell rather than a flow or multi-window design. This option is supplied with a closure, and the quantity supplied for the order is confirmed at ordering stage.

This listing also uses the Molded 0.01 fabrication category. For customer selection, that category is used for applications where tighter optical-path requirements may matter, but final suitability still depends on the exact method, fit and handling conditions for your setup.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	190 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 0.01

Choose this option

Choose C102CF1 when your method uses a 10 mm UV/Vis cuvette and you want a standard rectangular quartz body with included closure, plus the Molded 0.01 fabrication category for projects that pay close attention to path-length control. The open top makes routine filling straightforward, while the straight-through Two-Way Light layout fits ordinary transmission measurements across opposite optical faces.

What makes this option different

10 mm optical path: match the measurement method to this transmission distance and align the beam through the sample region.
Two-Way Light: align the opposing optical faces with the transmission beam and use the same orientation for blank and sample readings.
3.5 mL nominal capacity: plan the working fill and beam footprint together so liquid covers the illuminated region; nominal capacity is not a minimum working fill.
Accompanying closure: cover the opening after preparation and allow room to remove it; no pressure or leak-tight rating is specified.
Molded 0.01 option: review the required optical-path tolerance and measurement conditions for your order when precision is central to the method.

Using this cell

Fill the cell from the top so the liquid covers the illuminated sample region used by your instrument. Remove visible bubbles before reading, and keep the same orientation for blank and sample when your method depends on consistent placement.

The stated 3.5 mL is the nominal capacity, not a minimum working volume. Handle the cuvette by the non-optical sides where possible to avoid fingerprints on the transmission faces.

First-use check

Inspect the optical faces for dust, residue or visible handling marks.
Test the uncapped body in your holder for correct seating.
Run a suitable blank and confirm that the beam passes through the filled sample region without bubble interference.

Fit and optical alignment

The stated dimensions apply to the uncapped cell body: 12.5 × 12.5 × 45 mm. Use those body dimensions to check holder seating and compartment clearance, and allow extra space above the cell if you plan to keep the closure in place.

Z Height is not established for this SKU. If your instrument uses a fixed beam-center height, autosampler position or other alignment-sensitive holder, check that requirement before ordering rather than assuming fit from the outer body size alone.

Solvents and cleaning

Compare cuvette fabrication methods for background on fabrication choices. Molded 0.01 is used for selection where path-length precision is important, but it is not a general chemical-compatibility guarantee for every liquid or cleaning routine.

The exact chemical limits of this complete assembly are not established here. Do not use hydrofluoric acid with quartz, avoid hot strong alkalis and abrasive cleaning, and check suitability before using aggressive chemicals, elevated temperature or extended contact time.

Included with this option

This configuration includes an accompanying closure. Confirm the cell quantity and any separately specified accessories covered by your order.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We also coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, optical windows, Z Height, closures and tolerance requirements. Send a dimensioned drawing or labelled sketch together with your holder or instrument details through the contact page and quote part number C102CF1.
