(C102CF2) Quartz Standard Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C102CF2

Original price was: $247.00.Current price is: $223.00.

In Stock

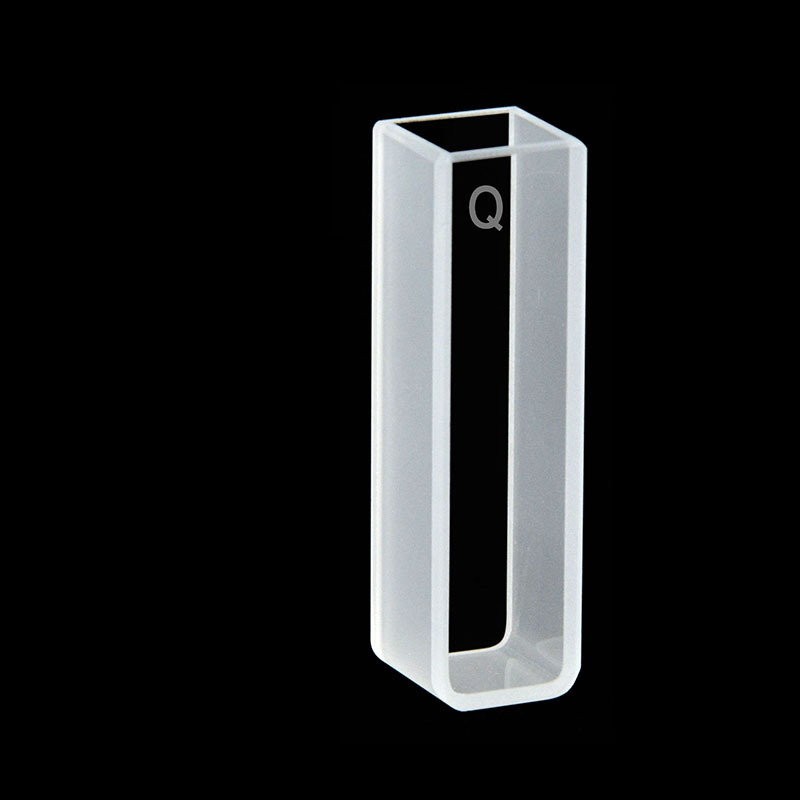

C102CF2 is a JGS1 quartz standard cuvette for UV/Vis work with a 10 mm optical path, 3.5 mL nominal capacity and a lid. Its standard rectangular body suits routine liquid measurements where you need direct top access for filling and cleaning, while the stated 190–2500 nm range supports UV/Vis methods using quartz cells.

In Stock

SKU: C102CF2 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CF2 is a JGS1 quartz standard cuvette for UV/Vis measurements with a 10 mm optical path and 3.5 mL nominal capacity. It combines a familiar rectangular cell body with a lid over the top opening, so you can fill and inspect the sample directly before measurement while still covering the opening during routine handling.

This option is useful when your method is written around a 10 mm path and your sample volume suits a full-size standard cell rather than a micro-format chamber. The stated 190–2500 nm range and quartz body make it suitable for UV/Vis work that requires quartz rather than glass.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	190 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 0.01

Choose this option

Choose C102CF2 when you need a quartz standard cuvette with direct top filling, a 10 mm optical path and a full-size sample chamber. The 3.5 mL nominal capacity fits routine liquid measurements, and the lid helps cover the opening between preparation and reading without turning the cell into a sealed or pressure-rated assembly.

What makes this option different

10 mm optical path for methods specified around this standard transmission length.
JGS1 quartz body with a stated 190–2500 nm range for UV/Vis applications that need quartz-cell transmission rather than glass.
3.5 mL nominal capacity in a standard rectangular cell format for general liquid sampling.
Lid over the top opening, allowing direct filling and visual checking of the sample before measurement.
Molded 0.01 fabrication for customers selecting this build style for work that places more attention on path-length control in a quartz cuvette format.
Listed body dimensions apply to the uncapped cell, which is important when checking holder seating and clearance above the opening.

Using this cell

Fill the cuvette from the top opening and make sure the liquid fully covers the beam area used by your instrument. Remove visible bubbles before measurement, and keep the cell orientation consistent between blank and sample if your procedure depends on repeatable positioning.

The lid is useful as a cover during routine handling and measurement setup, but it should be treated as a cover rather than a leak-proof, pressure-rated or transport seal. Hold the cuvette by the non-optical surfaces to reduce fingerprints on the clear faces.

First-use check

Inspect the optical faces and inner chamber before first use. Rinse with a cleaning liquid suitable for your method, check for residue or handling marks, and run a blank in the same orientation you plan to use for sample measurements.

Fit and optical alignment

The uncapped cell body measures 12.5 × 12.5 × 45 mm. Use those dimensions to check holder seating and to confirm that you have enough clearance above the cell for filling, lid placement and removal.

Z Height is not stated for this option. If your instrument or holder depends on a fixed beam center height, confirm alignment from your fixture requirements rather than assuming fit from the outer body size alone.

Solvents and cleaning

Molded 0.01 is the option to consider when your method calls for closely specified optical-path precision. For the 10 mm path on this cell, agree the required tolerance and measurement conditions for the order.

For customer selection, that makes most sense when you are choosing among quartz cuvette build styles for work where the optical path specification matters and you want to keep your cleaning method controlled and consistent with the cell assembly.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. Chemical compatibility for the complete cell-and-lid assembly is not fully established here, so if your samples or cleaning steps involve aggressive solvents, high-pH solutions or long contact times, please check suitability before ordering.

Included with this option

A lid is included with this option. The priced sale quantity and any additional package contents are not stated here, so please confirm the sale unit if you need a specific ordering quantity.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch, together with your holder or instrument information, critical dimensions, sample conditions and target quantity. Discuss your requirements and quote part number C102CF2.
