(C104SE7) Quartz Stoppered Cuvette, 10 mm Path

Weight	30 g

SKU: C104SE7

Original price was: $160.00.Current price is: $144.00.

In Stock

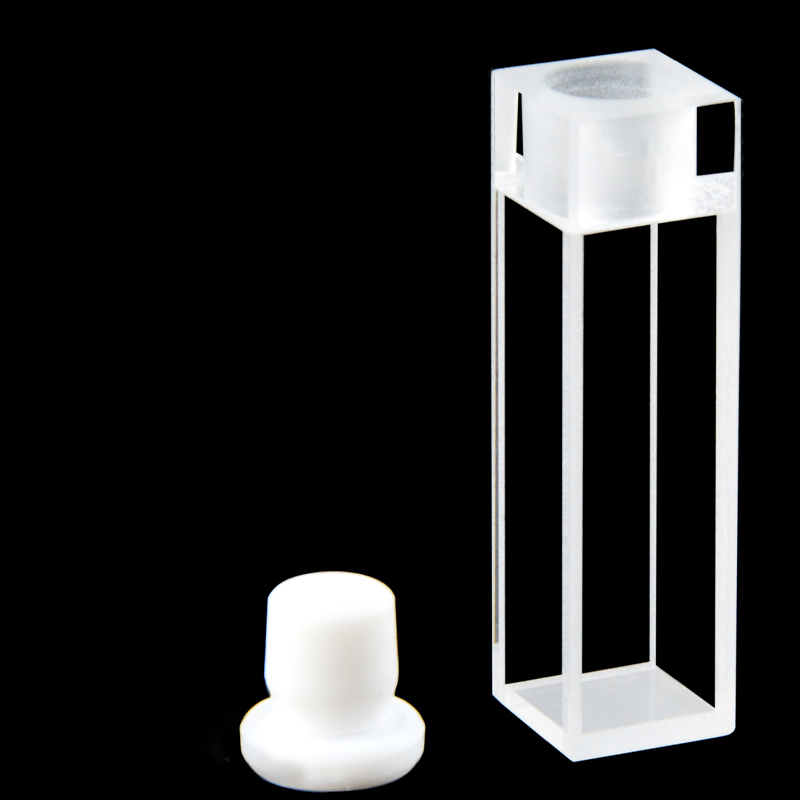

C104SE7 is a quartz stoppered cuvette with a 10 mm optical path and Four-Way Light geometry. The included PTFE stopper gives you a covered sample opening after filling, while the four-side optical access suits methods that use more than one optical direction. Sold as 1 cuvette per listed price unit.

In Stock

SKU: C104SE7 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104SE7 is a quartz stoppered cuvette for measurements that use a 10 mm optical path and need optical access from four sides of the cell body. Its PTFE stopper lets you fill the sample chamber from the top and then cover the opening for routine handling, while the Four-Way Light layout supports setups that use the main transmission path together with side optical access. This MQ listing is sold as 1 cuvette per price unit.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Material	Quartz
Closure Type	Stopper
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C104SE7 when you want a 10 mm quartz cell with a covered top and four-side optical access instead of a two-face transmission-only layout. This is useful when your method or setup needs side access in addition to the main beam direction, and when you prefer to load the sample directly into the cell before closing it with a stopper. It is a practical single-cell option for replacement, evaluation or routine bench use.

What makes this option different

Four-Way Light geometry: optical access is available from four sides of the cell body.
10 mm path length: suited to methods specified for a 10 mm optical path.
Stoppered opening: fill from the top, then cover the sample with the included PTFE stopper.
Quartz body: suited to optical cell use where quartz is required by the method.
Single-piece MQ sale unit: this listing is priced as 1 cuvette.

Using this cell

Fill the cell from the top and make sure the liquid level fully covers the beam region used by your instrument. Seat the PTFE stopper gently after filling, and remove bubbles from the optical region before measurement.

Where your method uses more than one optical direction, keep the cuvette orientation consistent between blank and sample runs. Handle the cell by the non-optical faces to reduce fingerprints and residue on the reading surfaces.

First-use check

Inspect the cuvette and stopper for visible chips, particles or handling residue before first use. Rinse with a suitable liquid for your method, test the fit in the holder, and run a blank to confirm beam coverage and orientation before using valuable samples.

Fit and optical alignment

Four-side optical access can be useful where illumination or observation is not limited to one pair of opposite faces, but instrument fit still depends on your holder geometry and beam position. The external dimensions and Z Height are not established here, so please check holder clearance and beam height if those points are critical in your setup.

The included stopper covers the opening during routine handling, but this does not establish pressure-rated, leak-tested or closed-circuit performance. If your process involves inversion, transport while filled or other demanding handling conditions, review that requirement separately.

Solvents and cleaning

The cell body is quartz and the stopper is PTFE. The exact chemical limits of the assembled cell are not established here, so if your sample or cleaning routine involves aggressive chemicals, elevated temperature or long contact time, check suitability for the complete cell-and-stopper arrangement before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the optical faces with non-abrasive optical tissue or another suitable non-scratching material. For general fabrication guidance, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

Included with this option

Supplied as 1 quartz stoppered cuvette. A PTFE stopper is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom quartz cuvette requirements involving dimensions, path length, optical access, closures or holder-related fit. Send your holder or instrument details, critical dimensions, sample conditions and required quantity at https://machinedquartz.com/contact/ and reference C104SE7.
