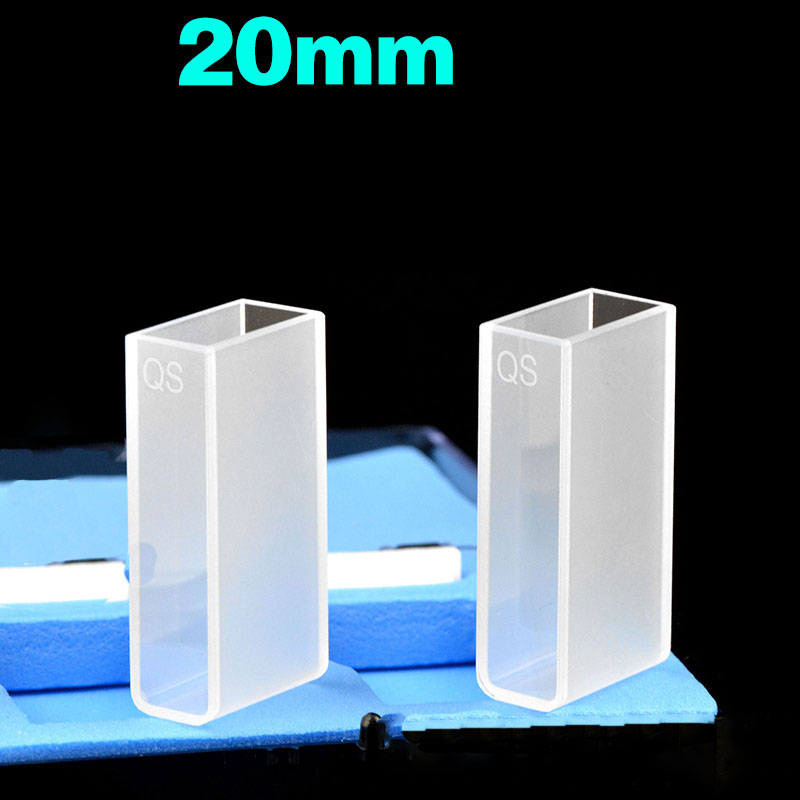

(C202CE) Quartz Standard Cuvette, 20 mm Path, 7 mL

Weight	100 g

SKU: C202CE

Original price was: $181.00.Current price is: $163.00.

In Stock

C202CE is a JGS1 quartz standard cuvette for UV/Vis spectroscopy with a 20 mm optical path and 7 mL nominal capacity. Its open top with lid supports direct filling and covered routine handling in a standard rectangular cell format.

Sold as 2 cuvettes per listed price unit, with lids included.

In Stock

SKU: C202CE Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C202CE is a JGS1 quartz standard cuvette for UV/Vis measurements across 190–2500 nm when your method calls for a 20 mm optical path. Its 7 mL nominal capacity and lidded top opening make it suitable for routine liquid handling where you want direct filling, consistent orientation and simple covered transfer between bench and instrument.

The body is longer in one external direction than a 10 mm standard cell, and the stated dimensions apply to the uncapped cuvette body. That helps when you need to check holder space and top clearance separately from the lid.

Path Length: 20 mm
Sample Volume (Nominal): 7 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	20 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	190 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	7 mL
External Dimensions	12.5 × 22.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 22.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C202CE when path length is part of the method, not an interchangeable detail, and you need a 20 mm quartz cuvette in a familiar rectangular format. The 7 mL nominal capacity suits procedures that already expect a larger fill volume than shorter-path standard cells, while the lid adds straightforward top coverage after filling.

What makes this option different

20 mm optical path for UV/Vis methods written for this specific longer path length.
7 mL nominal capacity for sample fills that suit a larger standard-cell chamber.
Lid included so the open top can be covered after filling and during routine handling.
JGS1 quartz construction with a stated 190–2500 nm working wavelength range.
12.5 × 22.5 × 45 mm uncapped body for checking holder seating and surrounding clearance.
2 cuvettes per listed price unit for the current MQ sale quantity.

Using this cell

Fill the cuvette from the top and make sure the liquid level fully covers the beam during measurement. For blank and sample comparisons, keep the same orientation where your procedure depends on repeatable positioning, and remove visible bubbles before reading.

The lid is useful for routine covered handling after filling. It should not be treated as a sealed closure for pressure use.

First-use check

Inspect the cuvettes and lids for visible chips, residue or other contamination.
Place an empty cell in the holder to confirm seating and top clearance.
Rinse according to your method and run a blank before sample measurements.

Fit and optical alignment

The established external dimensions are 12.5 × 22.5 × 45 mm for the uncapped cell body. Use those dimensions to check whether your holder accepts this rectangular format and whether you have enough top access for filling, lifting and lid placement.

Z Height is not established for this SKU. If your instrument or accessory relies on a defined beam-center height, please verify that requirement before ordering rather than assuming fit from the outer body shape alone.

Solvents and cleaning

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and clean the exterior optical faces gently with non-abrasive optical tissue.

The exact chemical limits of this assembly are not established here, so please check before ordering if your samples, rinses or cleaning steps involve aggressive chemicals or unusual conditions. For broader construction guidance, see MQ Cuvette Fabrication Glossary.

Included with this option

2 cuvettes per listed price unit. Lid included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and tolerances. To discuss a modified version, send your drawing or labelled sketch, holder or instrument details, sample conditions and target quantity through our contact page and quote part number C202CE.
