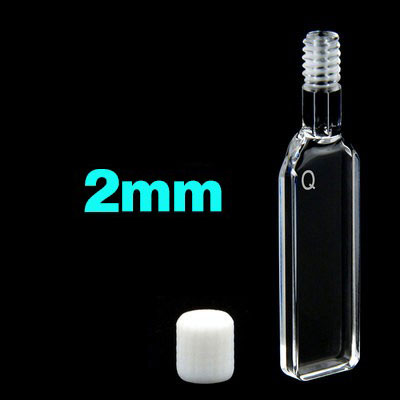

(C022TF1) Quartz Screw-Top Cuvette, 2 mm Path

Weight	30 g
Dimensions	1.25 × 0.45 × 4.5 mm

SKU: C022TF1

Original price was: $285.00.Current price is: $257.00.

In Stock

C022TF1 is a JGS1 quartz screw-top cuvette for UV/Vis spectroscopy with a 2 mm optical path and Four-Way Light configuration. It suits methods that need a short path length together with optical access from more than one side in a covered cell format. Sold as 1 cuvette, with a closure included.

In Stock

SKU: C022TF1 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C022TF1 is a JGS1 quartz screw-top cuvette for UV/Vis spectroscopy with a 2 mm optical path and Four-Way Light configuration. It is a practical choice when you need a short optical path, side optical access, and a covered sample chamber in one cell. The closure is included, so this option is supplied as a complete screw-top cuvette rather than a separate body and cap purchase.

Path Length: 2 mm
Sample Volume (Nominal): 700 µL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	2 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	700 µL
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Included	Yes
Fabrication Method	Molded 83

Choose this option

Choose C022TF1 when your method is built around a 2 mm path and you want optical access on multiple faces instead of a simple two-face transmission layout. The screw-top format gives you a covered sample chamber for filling and measurement, while the JGS1 quartz body supports UV/Vis work in a compact short-path cell format.

What makes this option different

2 mm optical path for methods that require a short path length.
Four-Way Light configuration for optical access from multiple sides of the cell body.
Screw-top cuvette format with a supplied closure for covered sample handling.
Molded 83 JGS1 quartz construction for UV/Vis spectroscopy.

Using this cell

Fill the cell so the liquid covers the beam path used in your instrument, then fit the closure before measurement. Remove visible bubbles from the reading zone and keep the optical faces free from fingerprints, droplets and residue.

If your method depends on a fixed orientation, keep the same cell orientation between blank and sample runs. Handle the cuvette by non-optical surfaces to avoid marking the clear windows.

First-use check

Inspect the quartz body and optical faces for chips, scratches, dust or residue.
Rinse with a cleaning liquid suitable for both your method and the complete assembled cell.
Run a blank in the intended measurement orientation and check that the beam passes through a bubble-free sample region.

Fit and optical alignment

Match your method to the 2 mm path length before ordering. Four-Way Light describes the optical access category of the cell body, but your holder and instrument still need the right beam position and side clearance for the way you intend to use the cell.

Z Height is not listed for this option here. If your instrument or accessory depends on a specific beam-center height, or if clearance around the upper screw-top section is limited, check holder fit and alignment requirements before purchase.

Solvents and cleaning

Molded 83 quartz is commonly selected for methods that may involve organic solvents or temperature-controlled use, but the exact chemical limits for this complete screw-top assembly are not established here. If your method involves aggressive chemicals, long contact time or elevated temperature, check compatibility for the assembled cell, including the closure.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. Clean the optical faces gently with non-abrasive optical tissue or other suitable laboratory wipes.

Included with this option

One C022TF1 screw-top cuvette with a closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving path length, optical windows, dimensions, Z Height, closures, fabrication and tolerances. Send a dimensioned drawing or labelled sketch, together with holder or instrument details, and identify the dimensions that matter to your setup. Discuss your requirements and quote part number C022TF1.
